Description

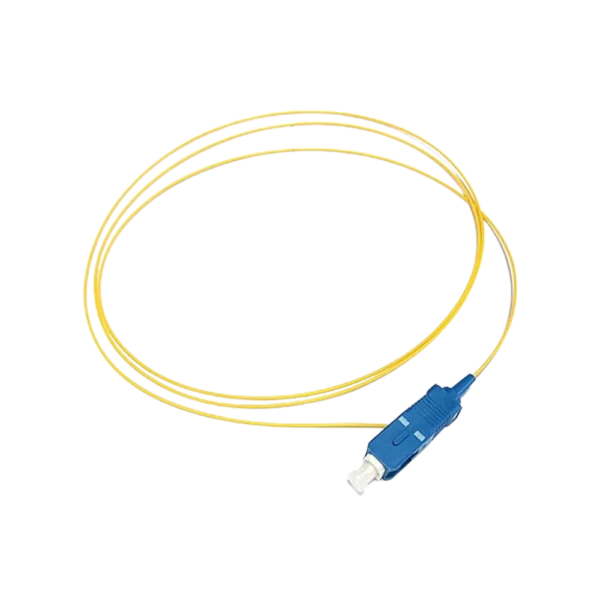

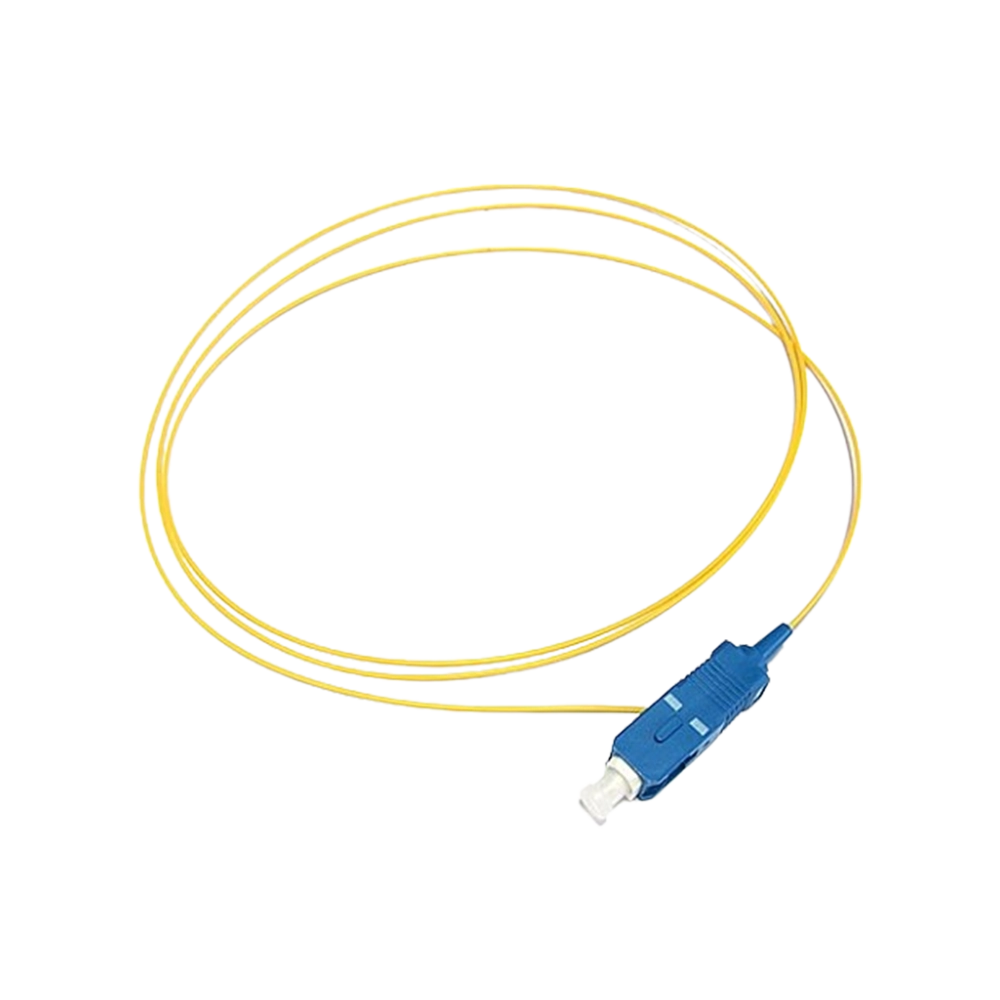

Schnell single mode fiber pigtails offer high-performance, low-loss terminations for splicing in FTTH, LAN, and telecom networks. Available in LC/PC and SC/PC with OS1 and OS2 fiber types, these pigtails ensure precise optical alignment and long-term durability. Designed for minimal insertion loss and high return loss performance in indoor or protected environments.
Key Features
- Low insertion and high return loss
- Factory pre-terminated and tested
- Suitable for fusion splicing
- Flame-retardant jacket (LSZH/PVC)
Key Applications
- FTTH & FTTX solutions
- Patch panel termination
- Optical network splicing
- High-speed telecom systems
Standards
- IEC 61754 & IEC 61300
- ISO/IEC 11801 (OM1, OM2, OM3, OM4 compliant)
- TIA/EIA 568.3-D
- RoHS & REACH Compliant
- IEC 60332-1 (Flame Performance)
Part Numbers
| Part number | Description |
| SCZ-7010LS1P1 | SCHNELL LC/PC OS1 PIGTAIL 1 METER |
| SCZ-7010LS1P1.5 | SCHNELL LC/PC OS1 PIGTAIL 1.5 METER |
| SCZ-7010LS1P2 | SCHNELL LC/PC OS1 PIGTAIL 2 METER |
| SCZ-7010LS1P3 | SCHNELL LC/PC OS1 PIGTAIL 3 METER |
| SCZ-7010LS2P1 | SCHNELL LC/PC OS2 PIGTAIL 1 METER |
| SCZ-7010LS2P1.5 | SCHNELL LC/PC OS2 PIGTAIL 1.5 METER |
| SCZ-7010LS2P2 | SCHNELL LC/PC OS2 PIGTAIL 2 METER |
| SCZ-7010LS2P3 | SCHNELL LC/PC OS2 PIGTAIL 3 METER |
| Â | |
| SCZ-7010SS1P1 | SCHNELL SC/PC OS1 PIGTAIL 1 METER |
| SCZ-7010SS1P1.5 | SCHNELL SC/PC OS1 PIGTAIL 1.5 METER |
| SCZ-7010SS1P2 | SCHNELL SC/PC OS1 PIGTAIL 2 METER |
| SCZ-7010SS1P3 | SCHNELL SC/PC OS1 PIGTAIL 3 METER |
| SCZ-7010SS2P1 | SCHNELL SC/PC OS2 PIGTAIL 1 METER |
| SCZ-7010SS2P1.5 | SCHNELL SC/PC OS2 PIGTAIL 1.5 METER |
| SCZ-7010SS2P2 | SCHNELL SC/PC OS2 PIGTAIL 2 METER |
| SCZ-7010SS2P3 | SCHNELL SC/PC OS2 PIGTAIL 3 METER |
