SINGLEMODE DUPLEX ADAPTER
SINGLEMODE DUPLEX ADAPTER - Image 2

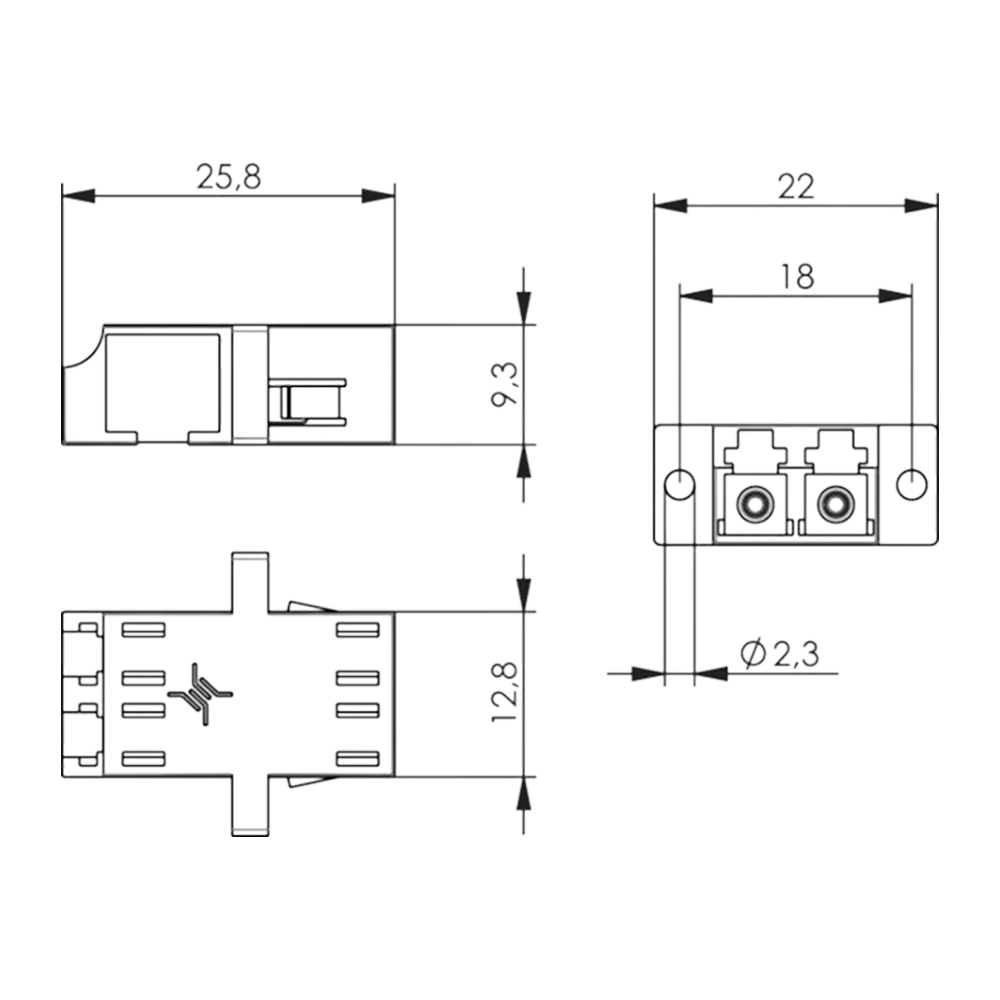

SINGLEMODE DUPLEX ADAPTER

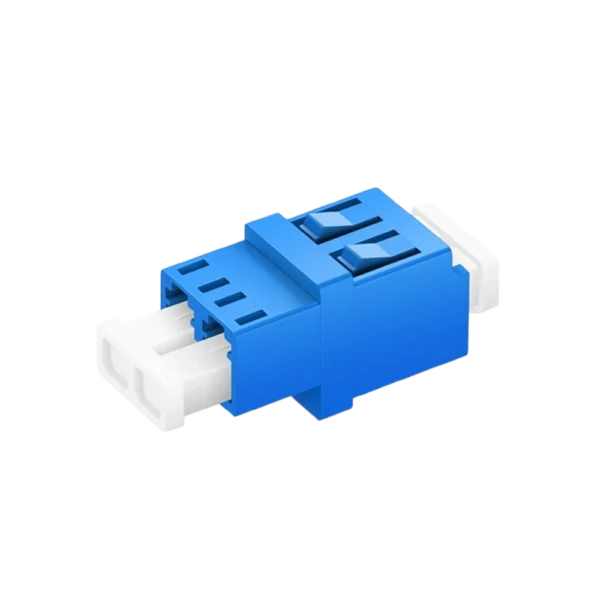

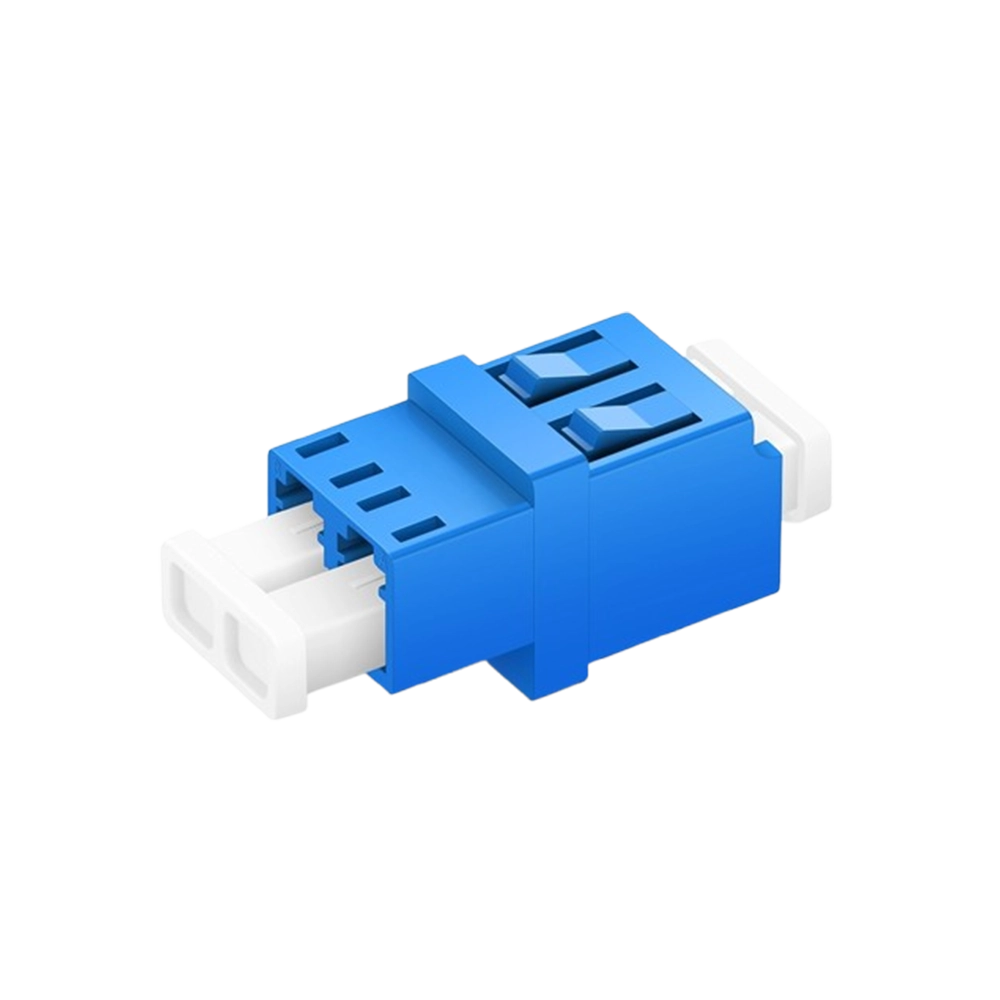

Schnell Single Mode Duplex Fiber Optic Adaptors are designed for precise fiber alignment and low insertion loss in high-performance telecom and data networks. Compatible with LC and SC connectors, they support OS1/OS2 fiber types and ensure reliable long-term coupling. Designed for ease of installation in patch panels, faceplates, and enclosures.

📥 DOWNLOAD DATASHEET

Categories: , , Tags: , Brand:

Description

Schnell Single Mode Duplex Fiber Optic Adaptors are designed for precise fiber alignment and low insertion loss in high-performance telecom and data networks. Compatible with LC and SC connectors, they support OS1/OS2 fiber types and ensure reliable long-term coupling. Designed for ease of installation in patch panels, faceplates, and enclosures.

Key Features

  • Zirconia ceramic alignment sleeve for high precision
  • Snap-in mounting for easy installation
  • Compatible with SC/LC connectors (PC/UPC polish)
  • Low insertion and high return loss

Key Applications

  • Telecom central offices
  • Data centers and LAN environments
  • FTTH/FTTx network infrastructure
  • Patch panels, wall-mount boxes, and ODFs

Standards

  • IEC 61754-4 (SC) / IEC 61754-20 (LC)
  • TIA/EIA-604 (FOCIS)
  • ISO/IEC 11801
  • RoHS & REACH Compliant
  • GR-326-Core

Part Numbers

Part Number Description
SCZ-7010LSA SCHNELL LC SINGLE MODE DUPLEX ADAPTOR
SCZ-7010SSA SCHNELL SC SINGLE MODE DUPLEX ADAPTOR

MATERIAL CONSTRUCTION

Parameter Specification
Connector Type SC/PC Duplex, LC/PC Duplex
Sleeve Type Zirconia Ceramic
Body Material High-strength Thermoplastic Resin
Color Blue (standard for single mode)
Mounting Type Snap-in, Flange, or No-Flange
Durability > 1000 Mating Cycles

CHARACTERISTICS

OPTICAL CHARACTERISTICS
Insertion Loss

Return Loss

Repeatability

Interchangeability

Durability

 : ≤ 0.20 dB (Typical), ≤ 0.30 dB (Max)

: ≥ 50 dB (UPC polish)

: ≤ 0.20 dB

: ≤ 0.20 dB

: ≥ 1000 Mating Cycles
OPTICAL CHARACTERISTICS
Insertion Loss

Return Loss

Repeatability

Interchangeability

Durability

 : ≤ 0.20 dB (Typical), ≤ 0.30 dB (Max)

: ≥ 50 dB (UPC polish)

: ≤ 0.20 dB

: ≤ 0.20 dB

: ≥ 1000 Mating Cycles
REACTION TO FIRE
UL 94V-0

IEC 61300-2-1

IEC 61300-2-22

 : Flame retardant housing material

: Temperature Cycling

: Resistance to stress conditions

PART NUMBER

Part Number Description
SCZ-7010LSA SCHNELL LC SINGLE MODE DUPLEX ADAPTOR
SCZ-7010SSA SCHNELL SC SINGLE MODE DUPLEX ADAPTOR
