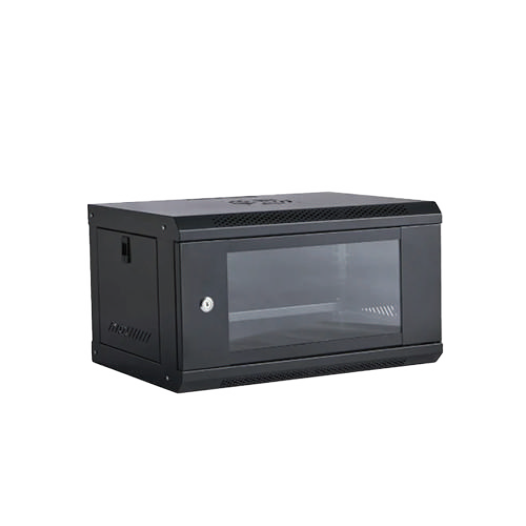

SINGLE SECTION WALL MOUNTED CABINET - Image 2

SINGLE SECTION WALL MOUNTED CABINET

SCHNELL Single Section Wall Mount Cabinets are ideal for office and network environments. Constructed from 1.2mm SPCC cold rolled steel and powder-coated for durability, these cabinets support 19” standard equipment with welded frames, removable side panels, and cable entry from both top and bottom. Available in multiple U sizes with secure locking front doors and easy mounting.

📥 DOWNLOAD DATASHEET

Categories: , , Tags: , Brand:

Description

SCHNELL Single Section Wall Mount Cabinets are ideal for office and network environments. Constructed from 1.2mm SPCC cold rolled steel and powder-coated for durability, these cabinets support 19” standard equipment with welded frames, removable side panels, and cable entry from both top and bottom. Available in multiple U sizes with secure locking front doors and easy mounting.

Key Features

  • Welded steel frame with powder-coated finish
  • Cable entry from top and bottom
  • 180° front door opening with lock
  • Removable side panels for easy access

Key Applications

  • Office and commercial data networking
  • Wall-mounted telecom & server installations
  • CCTV and IP surveillance housing
  • Network switch and patch panel integration

Standards

  • IEC 61754-20 (LC), IEC 61754-4 (SC)
  • ISO/IEC 11801
  • EN 50173, TIA/EIA-568
  • RoHS and REACH Compliant

Part Numbers

Part Number Description Dimensions (mm)
SCZ-1010W64504 SCHNELL 4U 600/450 SINGLE SECTION CABINET 600 X 450 X 279
SCZ-1010W64506 SCHNELL 6U 600/450 SINGLE SECTION CABINET 600 X 450 X 368
SCZ-1010W64509 SCHNELL 9U 600/450 SINGLE SECTION CABINET 600 X 450 X 501
SCZ-1010W64512 SCHNELL 12U 600/450 SINGLE SECTION CABINET 600 X 450 X 635
SCZ-1010W64515 SCHNELL 15U 600/450 SINGLE SECTION CABINET 600 X 450 X 769
SCZ-1010W6604 SCHNELL 4U 600/600 SINGLE SECTION CABINET 600 X 600 X 279
SCZ-1010W6609 SCHNELL 6U 600/600 SINGLE SECTION CABINET 600 X 600 X 368
SCZ-1010W6612 SCHNELL 9U 600/600 SINGLE SECTION CABINET 600 X 600 X 501
SCZ-1010W6615 SCHNELL 12U 600/600 SINGLE SECTION CABINET 600 X 600 X 635
SCZ-1010W6609 SCHNELL 15U 600/600 SINGLE SECTION CABINET 600 X 600 X 769

MATERIAL CONSTRUCTION

Parameter Specification
Frame & Panels 1.2 mm SPCC Cold Rolled Steel
Front Door 5 mm Toughened Glass with Steel Frame
Optional Front Door Single Perforated (Optional)
Cable Entry Cover Powder Coated Steel
Screws & Nuts Zinc Plated Steel



CHARACTERISTICS

SURFACE COATING & COLOR
All Steel Parts

Color

 : Powder Coated

: Black (Standard)
PHYSICAL CHARACTERISTICS
Mount Type

Installation Width

Door Opening Angle

U Sizes Available

Width × Depth (mm)

Height Range (mm)

 : Wall Mounted

: 19”

: 180°

: 4U, 6U, 9U, 12U, 15U

: 600 × 450 or 600

: 279 to 769 mm


REACTION TO FIRE
IEC 60754-1/2

ISO 9001

IEC 60332-1

IEC 61034

 : Low smoke & halogen

: Manufacturing Quality

: Flame Retardant

: Low Smoke Emission



PART NUMBER

Part Number Description Dimensions (mm)
SCZ-1010W64504 SCHNELL 4U 600/450 SINGLE SECTION CABINET 600 X 450 X 279
SCZ-1010W64506 SCHNELL 6U 600/450 SINGLE SECTION CABINET 600 X 450 X 368
SCZ-1010W64509 SCHNELL 9U 600/450 SINGLE SECTION CABINET 600 X 450 X 501
SCZ-1010W64512 SCHNELL 12U 600/450 SINGLE SECTION CABINET 600 X 450 X 635
SCZ-1010W64515 SCHNELL 15U 600/450 SINGLE SECTION CABINET 600 X 450 X 769
SCZ-1010W6604 SCHNELL 4U 600/600 SINGLE SECTION CABINET 600 X 600 X 279
SCZ-1010W6609 SCHNELL 6U 600/600 SINGLE SECTION CABINET 600 X 600 X 368
SCZ-1010W6612 SCHNELL 9U 600/600 SINGLE SECTION CABINET 600 X 600 X 501
SCZ-1010W6615 SCHNELL 12U 600/600 SINGLE SECTION CABINET 600 X 600 X 635
SCZ-1010W6609 SCHNELL 15U 600/600 SINGLE SECTION CABINET 600 X 600 X 769
