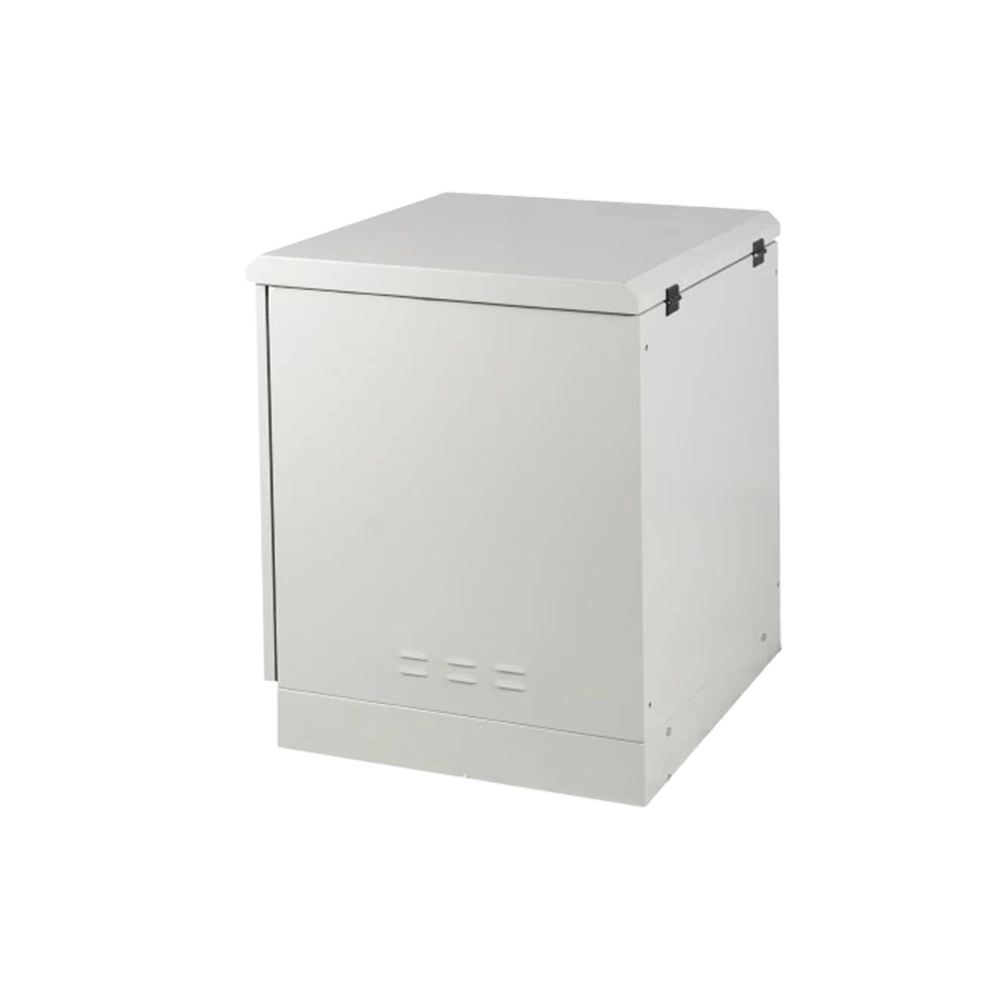

SCHNELL WALL/POLE MOUNTED IP55 OUTDOOR CABINET

SCHNELL Single Section Wall Mount Cabinets are ideal for office and network environments. Constructed from 1.2mm SPCC cold rolled steel and powder-coated for durability, these cabinets support 19” standard equipment with welded frames, removable side panels, and cable entry from both top and bottom. Available in multiple U sizes with secure locking front doors and easy mounting.


📥 DOWNLOAD DATASHEET

Categories: , , Tags: , Brand:

Description

Schnell’s outdoor single-section wall or pole-mounted cabinet is designed for reliable protection and easy installation of network and electrical equipment in harsh environments. Built from galvanized steel with a single-layer structure, it ensures long service life, effective heat dissipation, and IP55 rated weather resistance.

Key Features

  • IP55 Welded steel frame with powder-coated finish
  • 180° front door opening with lock
  • Complete protection against dust
  • Protected against medium-pressure water jets from any direction

Key Applications

  • Outdoor telecom and networking installations
  • Surveillance and security system enclosures
  • Industrial and power control units
  • Data transmission and fiber management systems
  • Suitable to Dusty industrial, outdoor, washdown areas

Standards

  • IEC 60529 IP55 protection
  • ISO 12944 surface coating standard (RAL7035)
  • RoHS compliant materials

Part Numbers

Part Number Description Dimensions (mm)
SCZ-1010W6606OT1 SCHNELL 6U SINGLE SECTION IP55 WALL/POLE MOUNTED OUTDOOR CABINET 600×600×501
SCZ-1010W6609OT1 SCHNELL 9U SINGLE SECTION IP55 WALL/POLE MOUNTED OUTDOOR CABINET 600×600×368
SCZ-1010W6612OT1 SCHNELL 12U SINGLE SECTION IP55 WALL/POLE MOUNTED OUTDOOR CABINET 600×600×635
SCZ-1010W6615OT1 SCHNELL 15U SINGLE SECTION IP55 WALL/POLE MOUNTED OUTDOOR CABINET 600×600×769

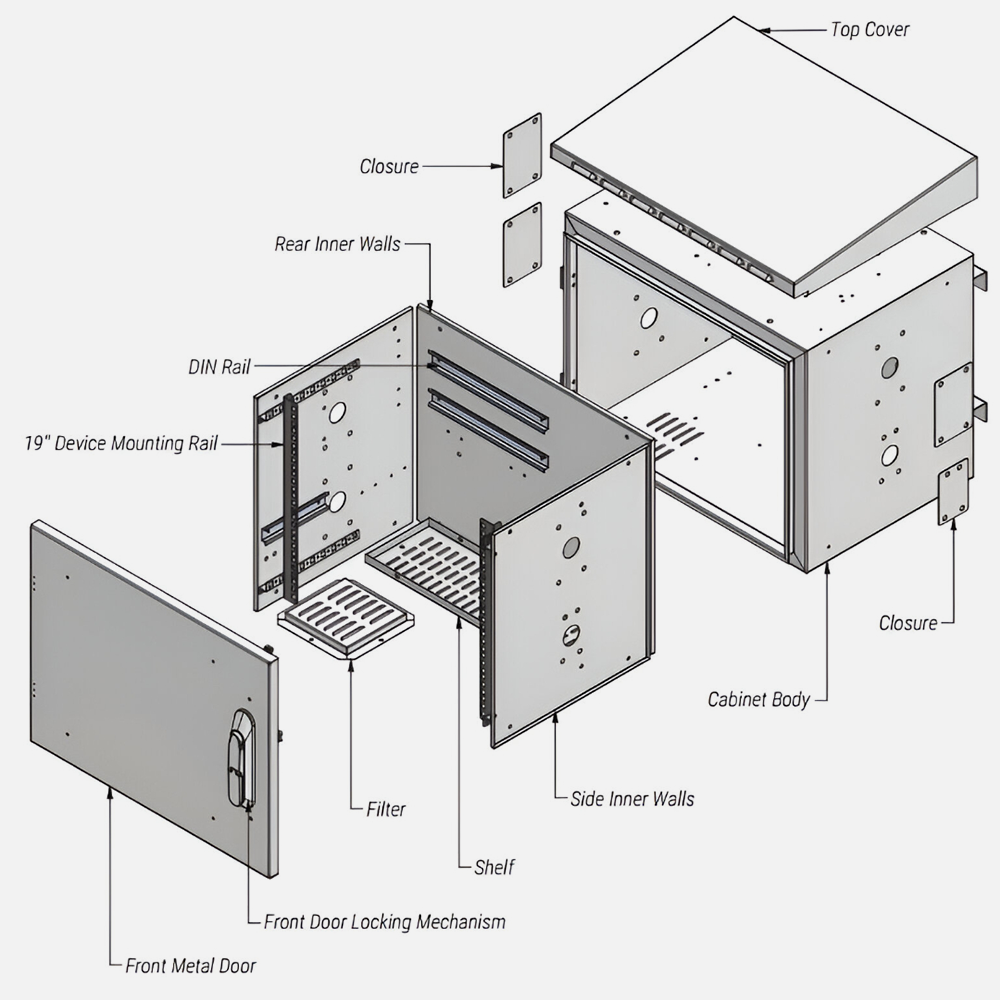

MATERIAL CONSTRUCTION

Category Specification
Cabinet Material Galvanized steel plate
Structure Type Single-layer, outdoor type
Frame & Load-Bearing Parts 2.0 mm thick galvanized steel
Enclosure Panel Thickness 1.5 mm
Fasteners Stainless steel
Door Design Front opening door with 3-point locking system
Internal Equipment Mounting Standard 19″ galvanized zinc-coated columns × 4
Accessories Included Access control × 1, AC 220 V LED light × 1, AC 220 V fan × 2, shelf × 1, grounding bar × 1
Cable Entry Bottom entry holes ∅ 50 mm × 8
Mounting Method Wall-mounted / Pole-mounted (M10 × 180 mm screws)

CHARACTERISTICS

Parameter Specification
Mount Type Wall / Pole Mounted
Installation Width 19″
Door Opening Angle 180°
U Sizes Available 6U, 9U, 12U, 15U
Width × Depth (mm) 600 × 450 / 600 × 600
Height (mm) 600
Protection Rating IP55
Operating Temperature −20 °C to +80 °C
Color / Finish RAL7035 Light Grey, Powder Coated

PART NUMBER

Part Number Description Dimensions (mm)
SCZ-1010W6606OT1 SCHNELL 6U SINGLE SECTION IP55 WALL/POLE MOUNTED OUTDOOR CABINET 600×600×501
SCZ-1010W6609OT1 SCHNELL 9U SINGLE SECTION IP55 WALL/POLE MOUNTED OUTDOOR CABINET 600×600×368
SCZ-1010W6612OT1 SCHNELL 12U SINGLE SECTION IP55 WALL/POLE MOUNTED OUTDOOR CABINET 600×600×635
SCZ-1010W6615OT1 SCHNELL 15U SINGLE SECTION IP55 WALL/POLE MOUNTED OUTDOOR CABINET 600×600×769
