WALL MOUNT FTTH CABINET – SINGLE SECTION (ES)

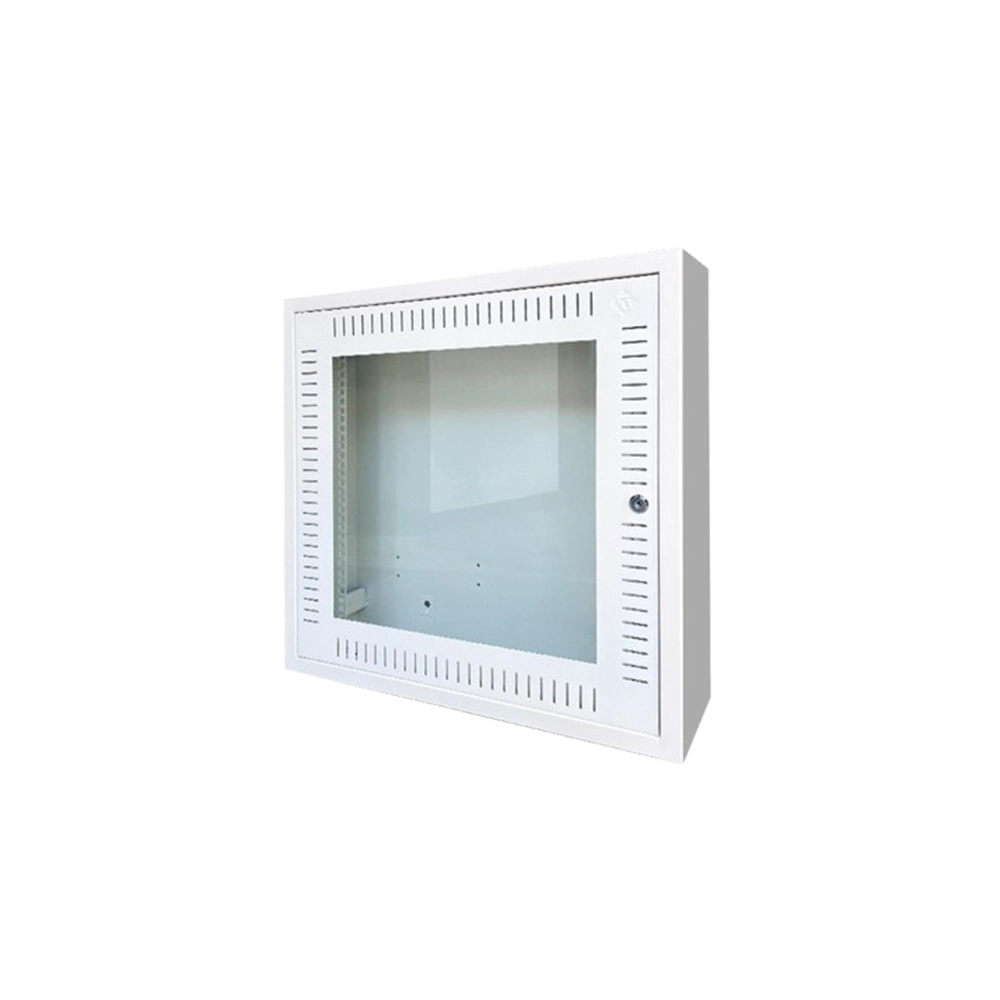

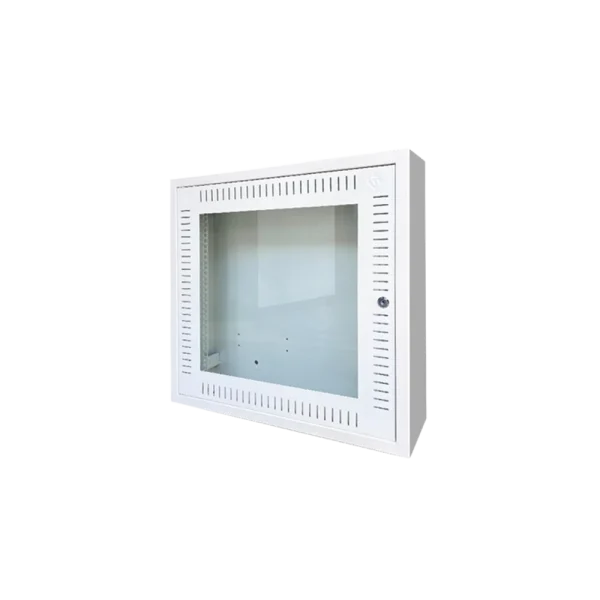

Schnell recessed single-section wall mount cabinets are crafted for discreet installation in home or office settings. Featuring welded SPCC steel with powder-coated finish and a lockable tempered glass door, they offer a 180° swing and rear cable access. Ideal for networking, AV, and telecom applications.

📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , Brand:

Description

Schnell ES Series single-section wall mount cabinets are designed for secure, compact installation of 19” networking and telecom equipment. Constructed from welded SPCC cold-rolled steel with powder coating, they feature a lockable tempered glass door, removable side panels, and top/bottom cable entries. Ideal for offices, data rooms, and CCTV applications.

Key Features

  • Compact single-section welded design
  • Lockable tempered glass front door
  • Adjustable 19″ rails
  • Easy cable entry (top & bottom)
  • Removable side panels for quick access

Key Applications

  • LAN/WAN networking
  • Small data rooms & offices
  • CCTV & security systems
  • VoIP & telecom equipment
  • AV installations

Standards

  • ANSI/EIA RS-310-D
  • IEC 60297 general requirements
  • ISO/IEC 297 for rack mounting
  • RoHS compliant

Part Numbers

Part Number Description Dimensions (mm)
SCZ-FTTH01 SCHNELL WALL MOUNT FTTH CABINET – SINGLE SECTION (ES) 600 x 600 x 120
SCZ-FTTH02 SCHNELL WALL MOUNT FTTH CABINET – SINGLE SECTION (ES) 600 x 600 x 150
SCZ-FTTH03 SCHNELL WALL MOUNT FTTH CABINET – SINGLE SECTION (ES) 600 x 600 x 300
SCZ-FTTH04 SCHNELL WALL MOUNT FTTH CABINET – SINGLE SECTION (ES) 600 x 400 x 120
SCZ-FTTH05 SCHNELL WALL MOUNT FTTH CABINET – SINGLE SECTION (ES) 600 x 400 x 150
SCZ-FTTH06 SCHNELL WALL MOUNT FTTH CABINET – SINGLE SECTION (ES) 400 x 400 x 120
SCZ-FTTH07 SCHNELL WALL MOUNT FTTH CABINET – SINGLE SECTION (ES) 400 x 400 x 150

MATERIAL CONSTRUCTION

Material

Surface Finish

Protection Rating

Front Door

Cable Entry

Mounting Rails

Color Options

 : SPCC Cold-rolled steel

: Electrostatic powder-coated

: IP20

: 5 mm tempered glass, lockable, opens 120°

: Top & bottom panels

: Adjustable 19” rails (front)

: Black RAL 9005 (others on request))

CHARACTERISTICS

Loading Capacity

Mounting Type

Door Opening

Sizes Available

Depth Options

Ventilation

Operating Environment

Side Panels

 : Up to 30 kg

: Wall mount / surface mount

: 120° (standard)

: 6U, 9U, 12U, 15U, 18U

: 450 mm / 600 mm

: Passive, perforated top/bottom

: Indoor

: Removable, lockable

PART NUMBER

Part Number Description Dimensions (mm)
SCZ-FTTH01 SCHNELL WALL MOUNT FTTH CABINET – SINGLE SECTION (ES) 600 x 600 x 120
SCZ-FTTH02 SCHNELL WALL MOUNT FTTH CABINET – SINGLE SECTION (ES) 600 x 600 x 150
SCZ-FTTH03 SCHNELL WALL MOUNT FTTH CABINET – SINGLE SECTION (ES) 600 x 600 x 300
SCZ-FTTH04 SCHNELL WALL MOUNT FTTH CABINET – SINGLE SECTION (ES) 600 x 400 x 120
SCZ-FTTH05 SCHNELL WALL MOUNT FTTH CABINET – SINGLE SECTION (ES) 600 x 400 x 150
SCZ-FTTH06 SCHNELL WALL MOUNT FTTH CABINET – SINGLE SECTION (ES) 400 x 400 x 120
SCZ-FTTH07 SCHNELL WALL MOUNT FTTH CABINET – SINGLE SECTION (ES) 400 x 400 x 150
