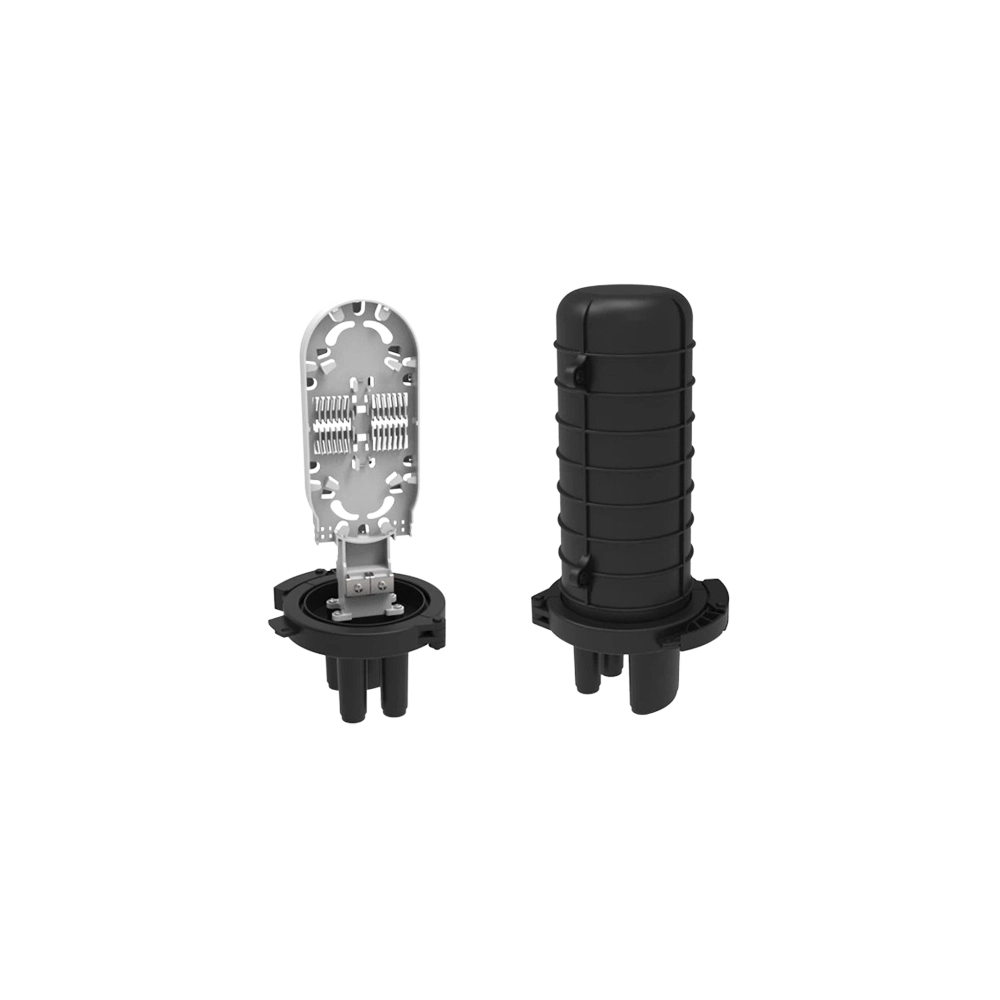

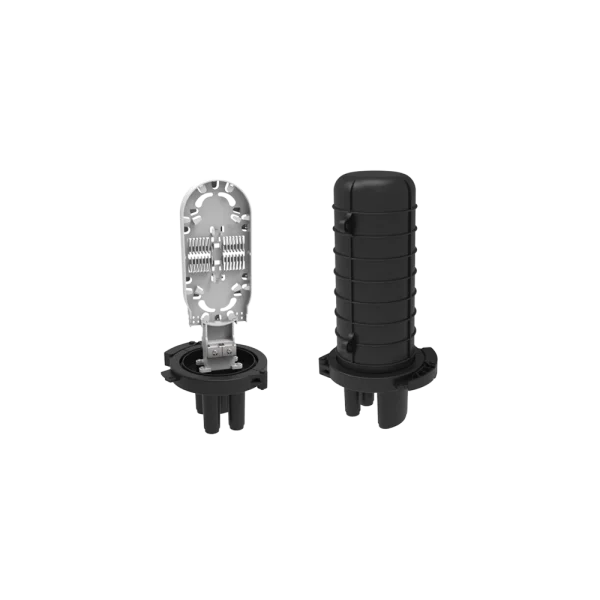

The Schnell Vertical/Dome Splicing Closure offers robust protection for fiber optic splices in harsh outdoor environments. Featuring IP68 sealing, it safeguards against UV, dust, water, and mechanical stress. With multiple cable entries and a modular splice tray system, it supports efficient and organized splicing for aerial, buried, wall, or pole deployments.

📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , Brand:

Description

The Schnell Vertical/Dome Splicing Closure offers robust protection for fiber optic splices in harsh outdoor environments. Featuring IP68 sealing, it safeguards against UV, dust, water, and mechanical stress. With multiple cable entries and a modular splice tray system, it supports efficient and organized splicing for aerial, buried, wall, or pole deployments.

Key Features

  • IP68-rated watertight and dustproof performance
  • Modular stacked splice trays allow high-density splicing
  • Flexible mounting: wall, aerial, pole, duct, or buried
  • Durable dome design with mechanical or heat-seal closure
  • Anti-impact and corrosion-resistant for outdoor endurance

Key Applications

  • Outdoor fiber splice protection in FTTH/FTTx networks
  • Junction points in aerial, duct, and buried fiber infrastructure
  • Telecom, CATV, and broadband network deployments
  • Robust splicing management in varying environmental conditions

Standards



Part Numbers

Part Number Description
SCZ-VEN12 SCHNELL OUTDOOR FIBER ENCLOSURE VERTICAL 12 CRORE
SCZ-VEN24 SCHNELL OUTDOOR FIBER ENCLOSURE VERTICAL 24 CRORE
SCZ-VEN48 SCHNELL OUTDOOR FIBER ENCLOSURE VERTICAL 48 CRORE

MATERIAL CONSTRUCTION

Enclosure Material

Protection Rating

Cable Entry

Configuration

Splice Tray Capacity

Sealing Mechanism

Mounting Options

 : High-grade engineering plastic (UV-resistant)

: IP68 (fully dust- and water-proof)

: Multiple inlet/outlet ports (vary by model)

: Supports stacked trays for high-density fiber organization

: Reliable mechanical or heat-shrink seal for long-term durability

: Suitable for pole, aerial, wall, duct, or direct burial applications

CHARACTERISTICS

Shape & Module Design

Splice Capacity Range

Internal Fiber Routing

Mechanical Resilience

Temperature Rating

 : Dome-shaped, vertical orientation for compact footprint

: Typical capacities range from ~24 to hundreds of fibers

: Maintains ≥30 mm bend radius throughout

: Anti-impact, anti-corrosion construction

: Typically –40 °C to +60 °C operation range

PART NUMBER

Part Number Description
SCZ-VEN12 SCHNELL OUTDOOR FIBER ENCLOSURE VERTICAL 12 CRORE
SCZ-VEN24 SCHNELL OUTDOOR FIBER ENCLOSURE VERTICAL 24 CRORE
SCZ-VEN48 SCHNELL OUTDOOR FIBER ENCLOSURE VERTICAL 48 CRORE
