PLASTIC CABLE MANAGEMENT

PLASTIC CABLE MANAGEMENT

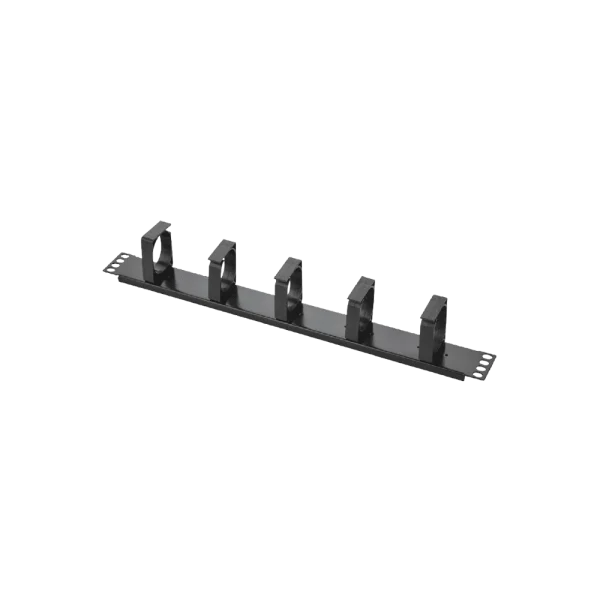

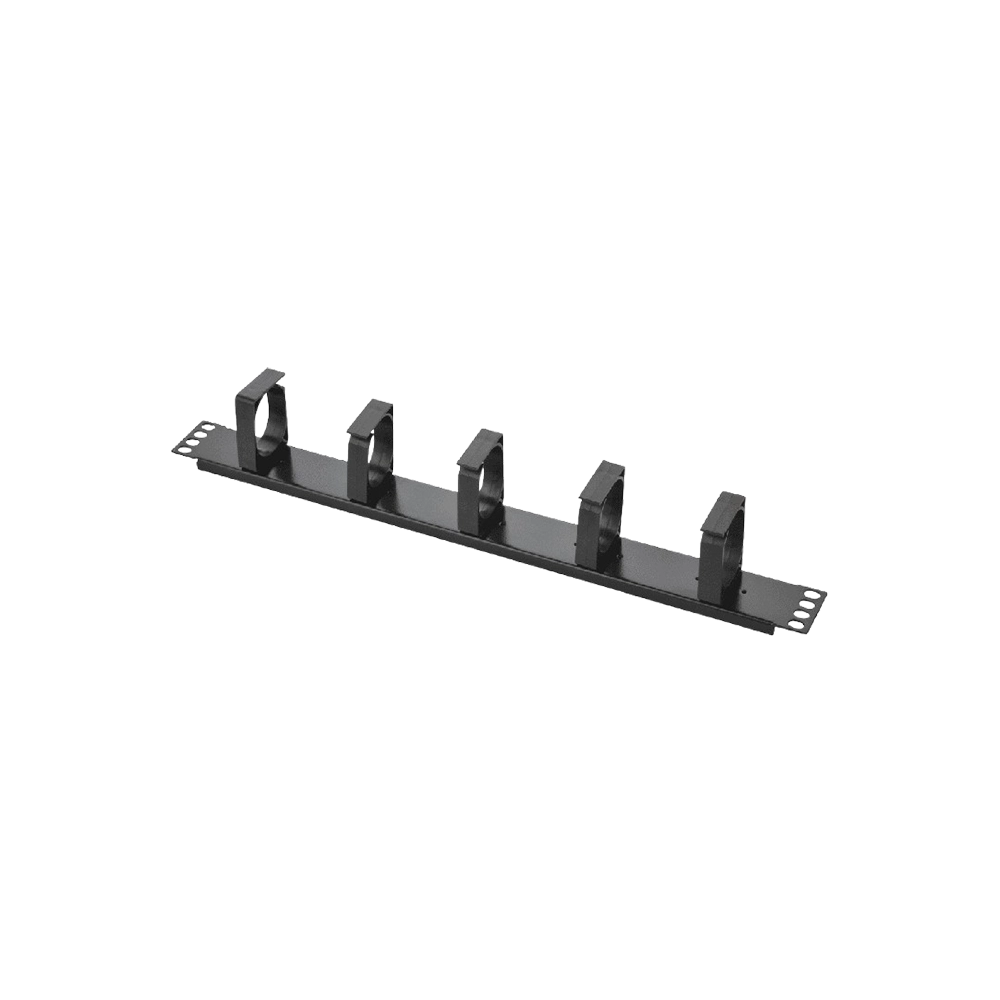

Schnell’s 1U Plastic Cable Management features five integrated rings to organize patch cords neat and efficient. Made from durable 1.2 mm plastic and available in Black (RAL 9004), Grey (RAL 7035), or White (RAL 9010), it enhances cabinet cable routing while maintaining a low profile.

📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , Brand:

Description

Compact and efficient, the Schnell Single Fan provides effective airflow for cabinet ventilation. Measuring 120 × 120 × 38 mm, it delivers 50–110 cbm/hr of air movement. Available in 110 V and 220 V versions with customizable colors (RAL 9004, 7035, 9010), it’s a versatile and stylish accessory for networking and equipment cooling.

Key Features

  • Compact 120 × 120 × 38 mm form factor
  • Efficient airflow: 50–110 cbm/hr
  • Available in 110 V & 220 V versions
  • Custom color finishes: Black, Grey, White (RAL codes)
  • Easy-to-install design compatible with cabinet panels

Key Applications

  • Cabinet or rack ventilation
  • Heat dissipation for networking and telecom equipment
  • OEM integration for thermal management
  • Enhances airflow in compact enclosures

Standards

Part Numbers

Part Number Description
SCZ-FAN01 SCHNELL SINGLE FAN

MATERIAL CONSTRUCTION

Dimensions



Housing Material

Voltage Variants

Color Options

Mounting Type

 : 120 × 120 × 38 mm (external), 105 × 105 mm (mount)

: Durable plastic or metal (typical fan build)

: 110 V, 220 V

: Black (RAL 9004), Grey (RAL 7035), White (RAL 9010)

: Standard square cutout for panel installation

CHARACTERISTICS

Air Flow

Installation

Weight

Operating Condition

 : 50–110 cbm/hr

: Cabinet or panel mounting

: Lightweight (small footprint)

: Indoor use within cabinet environments

PART NUMBER

Part Number Description
SCZ-FAN01 SCHNELL SINGLE FAN
