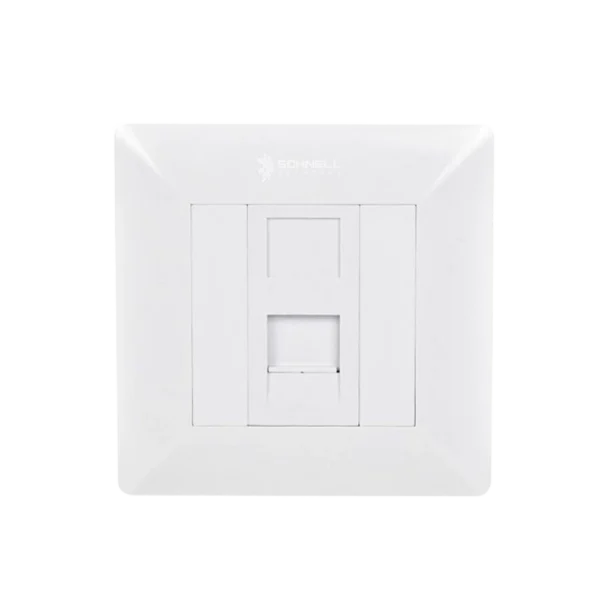

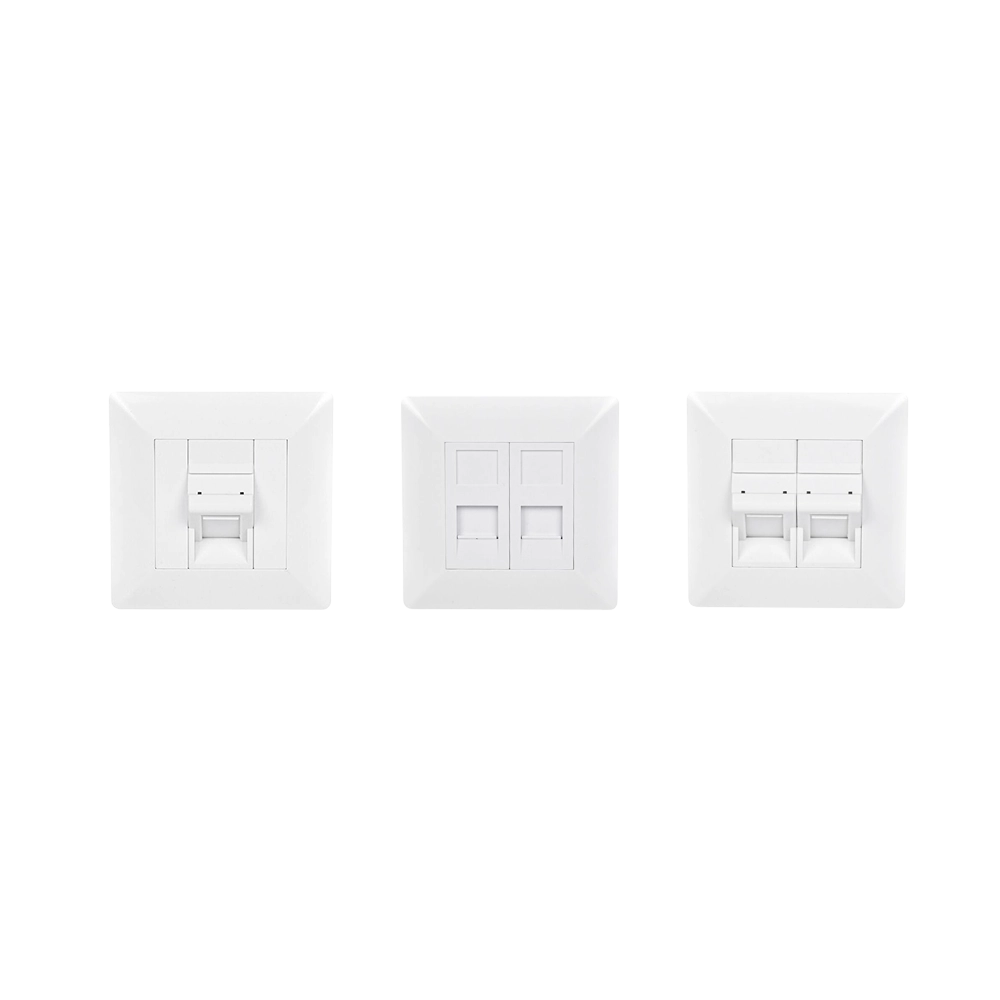

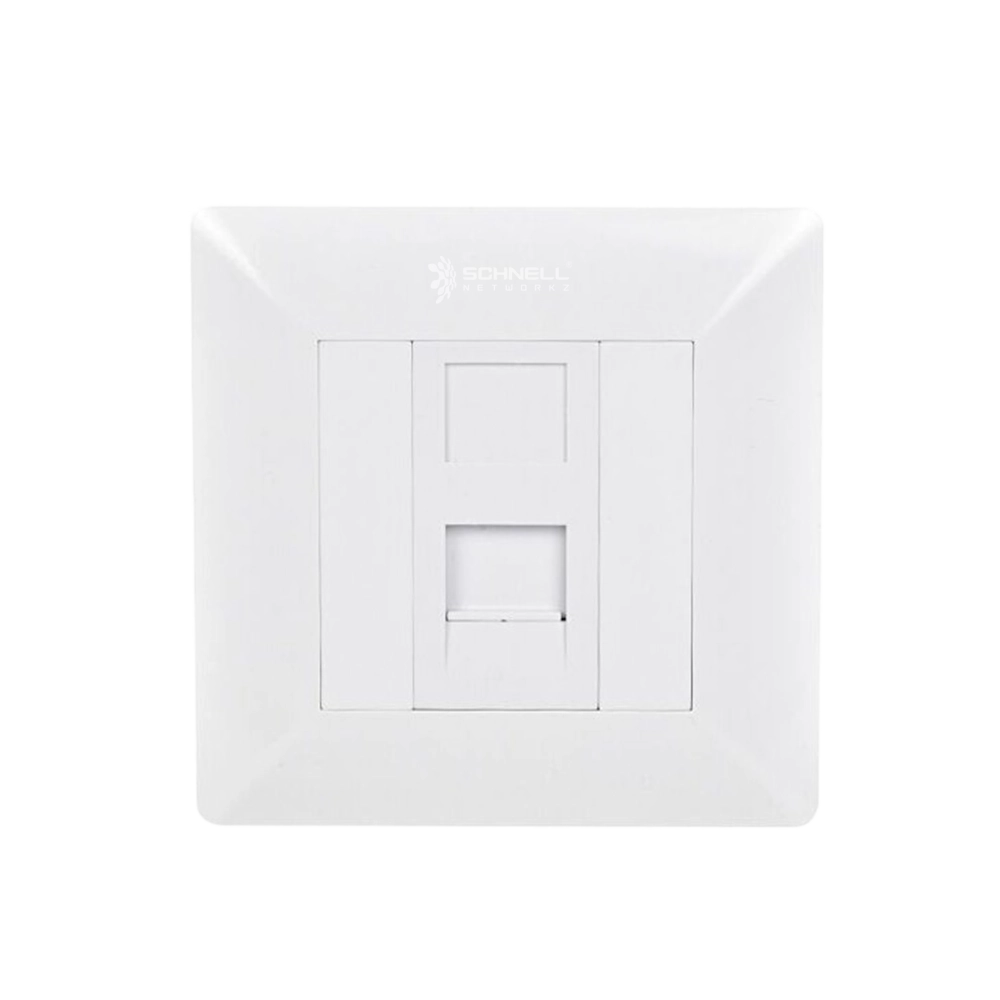

Schnell offers a versatile range of faceplates designed to support multiple information outlet configurations. These faceplates are fully compatible with Schnell’s keystone jacks, Euro-LJ6C modules, blank inserts, brackets, and other components—ensuring flexible, efficient, and professional installation options for structured cabling systems in residential or commercial setups.

📥 DOWNLOAD DATASHEET

Categories: , Tags: , , , Brand:

Description

Schnell offers a versatile range of faceplates designed to support multiple information outlet configurations. These faceplates are fully compatible with Schnell’s keystone jacks, Euro-LJ6C modules, blank inserts, brackets, and other components—ensuring flexible, efficient, and professional installation options for structured cabling systems in residential or commercial setups.

Key Features

  • Available in angled and flat styles
  • Supplied with fixing screws
  • Complies with ANSI/TIA/EIA 568A-B.2.2001 standards
  • Angled ports minimize cable stress and improve bend radius
  • Includes designated label area for easy identification
  • Supports use of blanking modules for unused ports

Key Applications

  • Structured cabling installations (voice & data)
  • Compatible with keystone jacks and Euro-LJ6C modules
  • Ideal for commercial, residential, and office wall outlets
  • Supports network, telephone, and multimedia faceplate needs

Standards



Part Numbers

Part Number Description
SCZ-5010FP01W SCHNELL UK SERIES FACE PLATE 1 PORT
SCZ-5010FP02W SCHNELL UK SERIES FACE PLATE 2 PORT

MATERIAL CONSTRUCTION

DIMENSION
Face plate (UK Style)

Face plate (Euro Style)

 : 86 × 86 mm

: 80 × 80 mm

CHARACTERISTICS

PHYSICAL CHARACTERISTICS
Material

Color

Dimensions

Port Types

Labeling Area

Finish

RoHS Compliance

 : Flame-retardant PVC (UL 94V-0 rated)

: White (RAL 9003 or equivalent)

: Standard (e.g., 86mm x 86mm)

: 1, 2 (flat or angled)

: Yes, for easy port identification

: Smooth, scratch-resistant surface

: Yes


MECHANICAL CHARACTERISTICS
Mounting Type

Impact Resistance

Cable Entry

Insert Compatibility

Durability

Operating Temperature

Storage Temperature

 : Screw-fit (single/dual gang compatible)

: IK08 (if applicable/tested)

: Angled ports improve bend radius

: Keystone jacks, Euro-LJ6C, blanks

: >250 insertions (if tested)

: -10°C to +60°C

: -25°C to +70°C

PART NUMBER

Part Number Description
SCZ-5010FP01W SCHNELL UK SERIES FACE PLATE 1 PORT
SCZ-5010FP02W SCHNELL UK SERIES FACE PLATE 2 PORT
