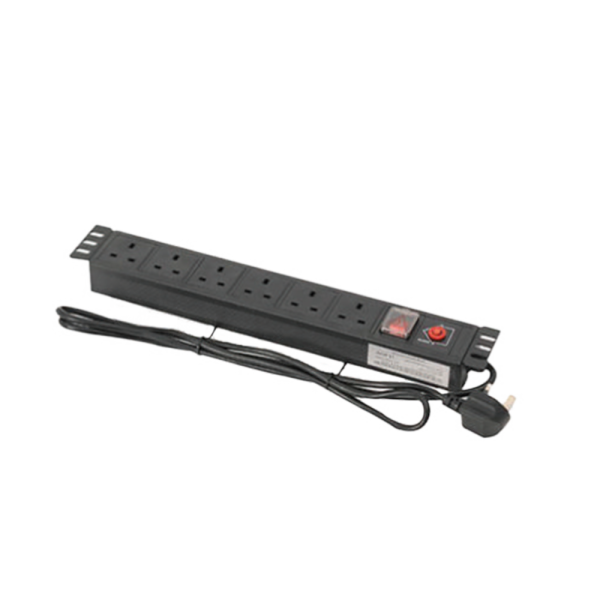

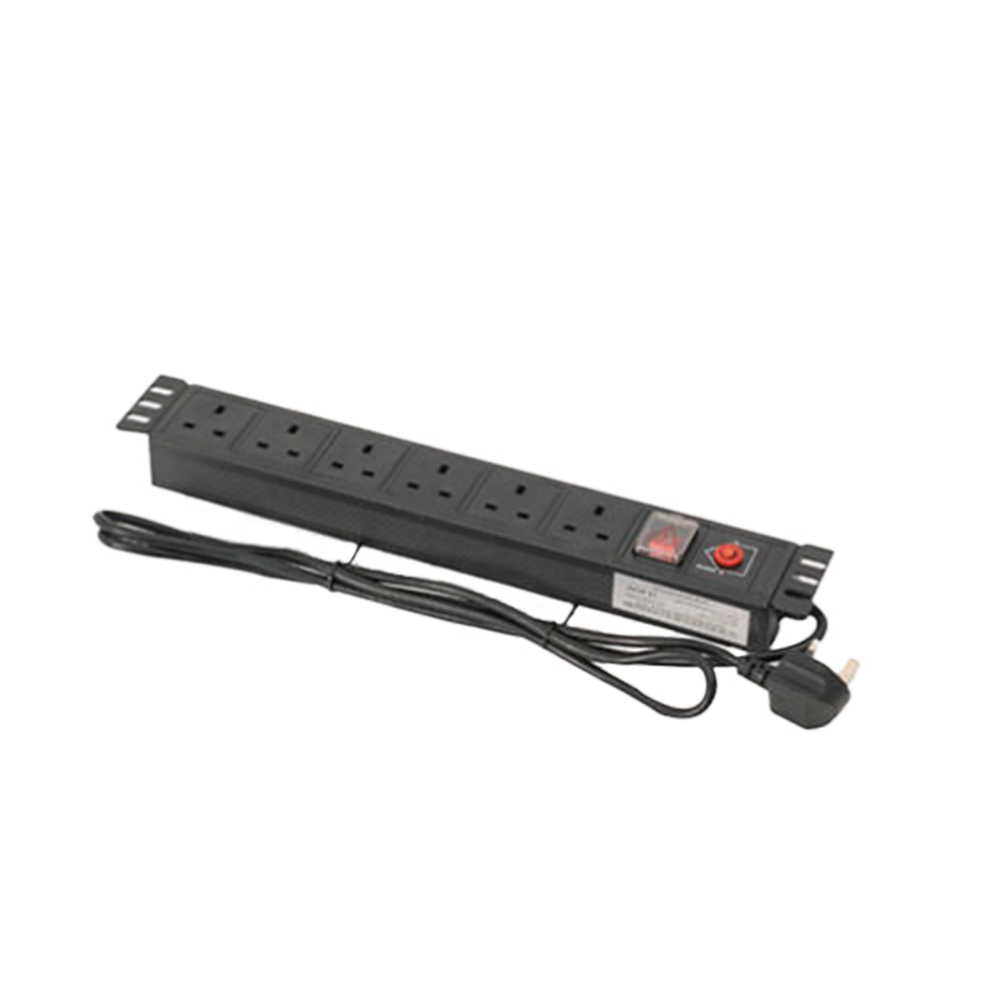

POWER DISTRIBUTION UNIT

The SCHNELL Power Distribution Unit delivers dependable AC power to rack-mounted equipment. Built to meet the needs of IT, AV, telecom, and industrial environments, it features 6 to 15 universal sockets, a main power switch, and thermal circuit protection. The 1U design fits standard 19″ racks and is ideal for organized and safe energy distribution in demanding installations.

📥 DOWNLOAD DATASHEET

Categories: , , Tags: , Brand:

Description

The SCHNELL Power Distribution Unit delivers dependable AC power to rack-mounted equipment. Built to meet the needs of IT, AV, telecom, and industrial environments, it features 6 to 15 universal sockets, a main power switch, and thermal circuit protection. The 1U design fits standard 19″ racks and is ideal for organized and safe energy distribution in demanding installations.

Key Features

  • Universal outlet design (6–15 sockets) with circuit breaker
  • Heavy-duty steel housing with power switch and indicator light
  • Rack-mountable in 1U height for standard 19″ cabinets

Key Applications

  • Power distribution in data center racks and telecom closets
  • AV, broadcasting, and control room equipment racks
  • Structured cabling, surveillance, and automation systems

Standards

  • Complies with 19″ EIA‑310 rack mount standard
  • CE certified
  • RoHS compliant
  • ISO 9001 manufacturing standards
  • Optional models with surge protection tested to IEC standards

Part Numbers

Part Number Description
SCZ-06W13APDU SCHNELL 06 WAY 13A PDU WITH MAIN SWITCH 1.8 MTR

MATERIAL CONSTRUCTION

Parameter Specification
Housing Material Cold-rolled steel (SPCC)
Finish Black matte powder coating
Mounting Style 1U rack-mount horizontal
Outlet Type Universal sockets (6, 8, 10, 12, or 15 ports)
Input Connector IEC C14 / Power cord (1.8m to 3m, model dependent)
Main Switch Rocker switch with LED indicator
Circuit Protection Built-in resettable thermal circuit breaker
Mounting Hardware Includes cage nuts and screws

CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Input Voltage

Frequency

Current Rating

Max Power Load

Switch Rating

Surge Protection

Grounding

 : 220–250V AC

: 50/60 Hz

: 10A / 13A / 16A (model dependent)

: Up to 4000W

: 16A @ 250V AC

: Optional (available in specific models)

: Full metal contact grounding path

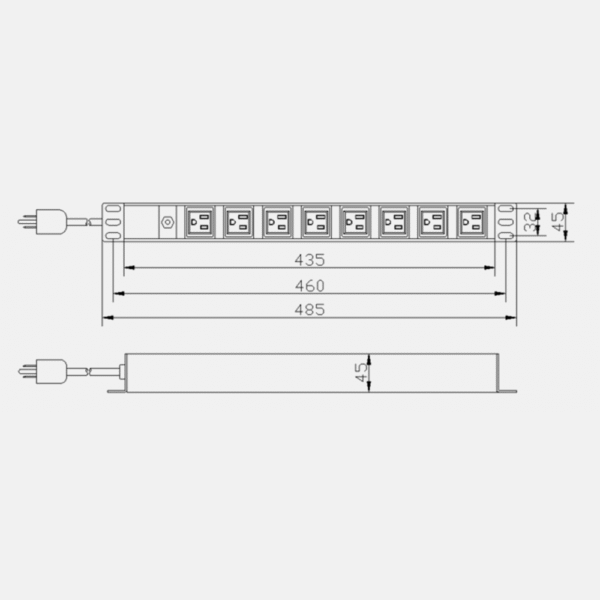

PHYSICAL & MECHANICAL CHARACTERISTICS
Rack Height

Width

Depth

Weight

Socket Orientation

Color

 : 1U (44.45 mm)

: 19″ (482.6 mm)

: Approx. 50–60 mm

: ~1.2 to 1.8 kg depending on port count

: Horizontally aligned

: Black (RAL 9005 or similar)
REACTION TO FIRE
Enclosure Material

Socket Housing

Overload Protection

 : Non-combustible steel, powder-coated

: Flame-retardant, thermoplastic (UL94V-0 rated)

: Auto-reset thermal circuit breaker

PART NUMBER

Part Number Description
SCZ-06W13APDU SCHNELL 06 WAY 13A PDU WITH MAIN SWITCH 1.8 MTR
