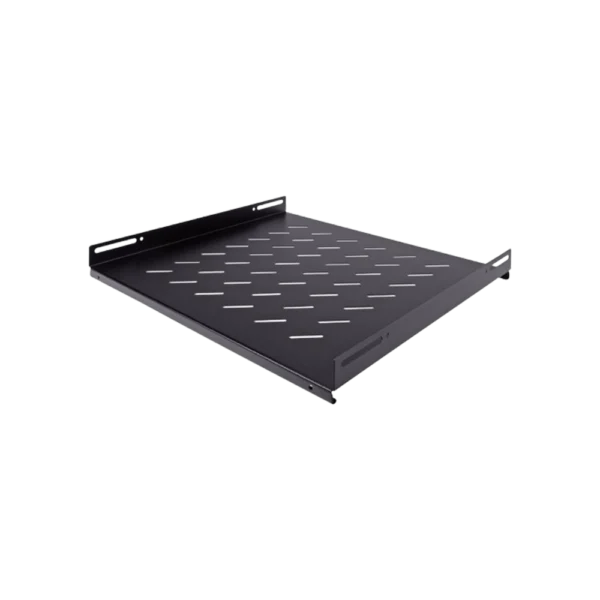

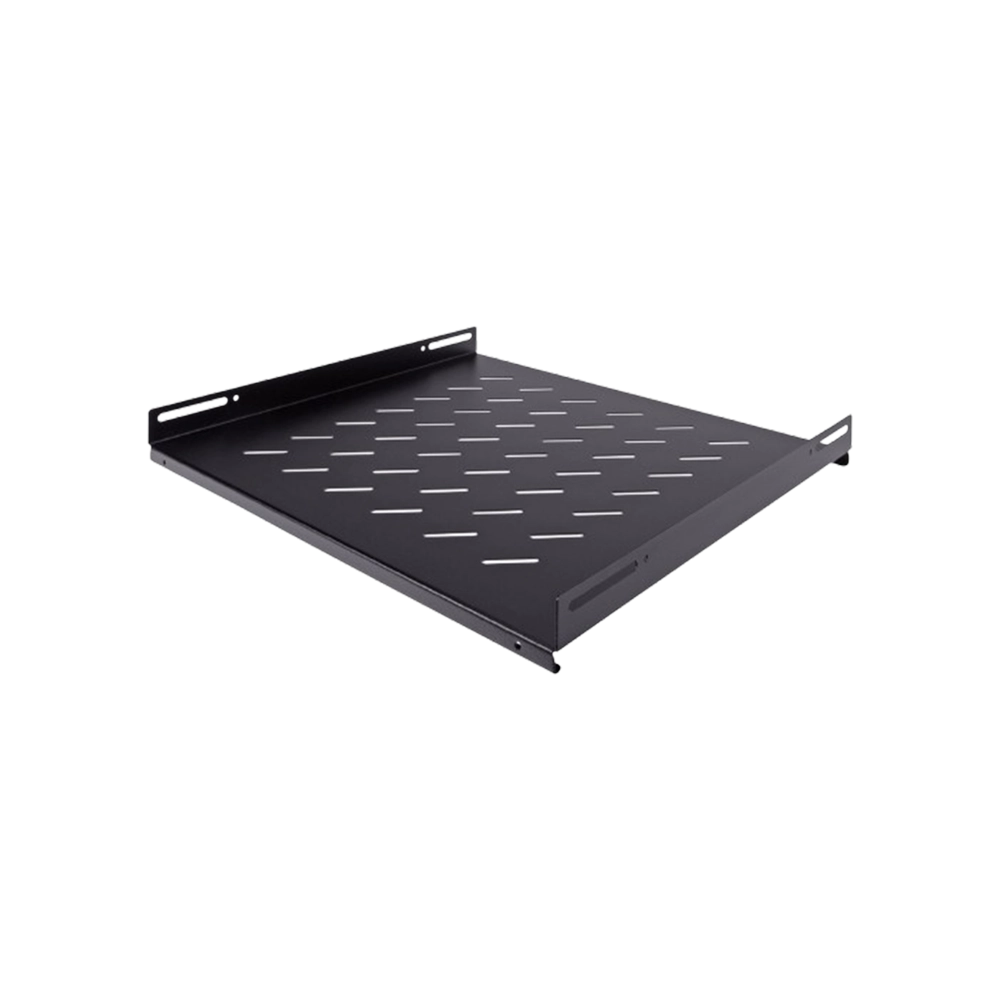

Heavy duty 1 U fixed shelves for 19″ rack cabinets, available in four nominal depths (450, 600, 800 and 1000 mm). Made from cold rolled steel with black powder coating. Designed to support non rackmount equipment securely, with excellent load capacity and optional ventilation in deeper variants.

Key Features

• Four depth options: 450 mm, 600 mm, 800 mm, 1000 mm
• Durable cold‑rolled steel construction, powder‑coated for corrosion resistance
• Supports ~50–60 kg depending on model and thickness
• Includes standard 1 U rack‑mount screws and nuts
• Available solid or vented configurations based on depth

Key Applications

• Mounting non‑rackmount devices (routers, modems, small UPS)
• Organizing tools, documentation, and accessories in racks
• Securing networking components where rackmount chassis not used
• Use in telecom, IT, AV, and broadcast cabinets
• Ideal for fixed install within standard 19″ cabinets

Standards

• Conforms to 19″ rack standards (EIA‑310 / ETSI compatible)
• RoHS-compliant coatings
• Supports CE marking where applicable
• Manufacturer warranty typically 2–3 years depending on region

Part Numbers
