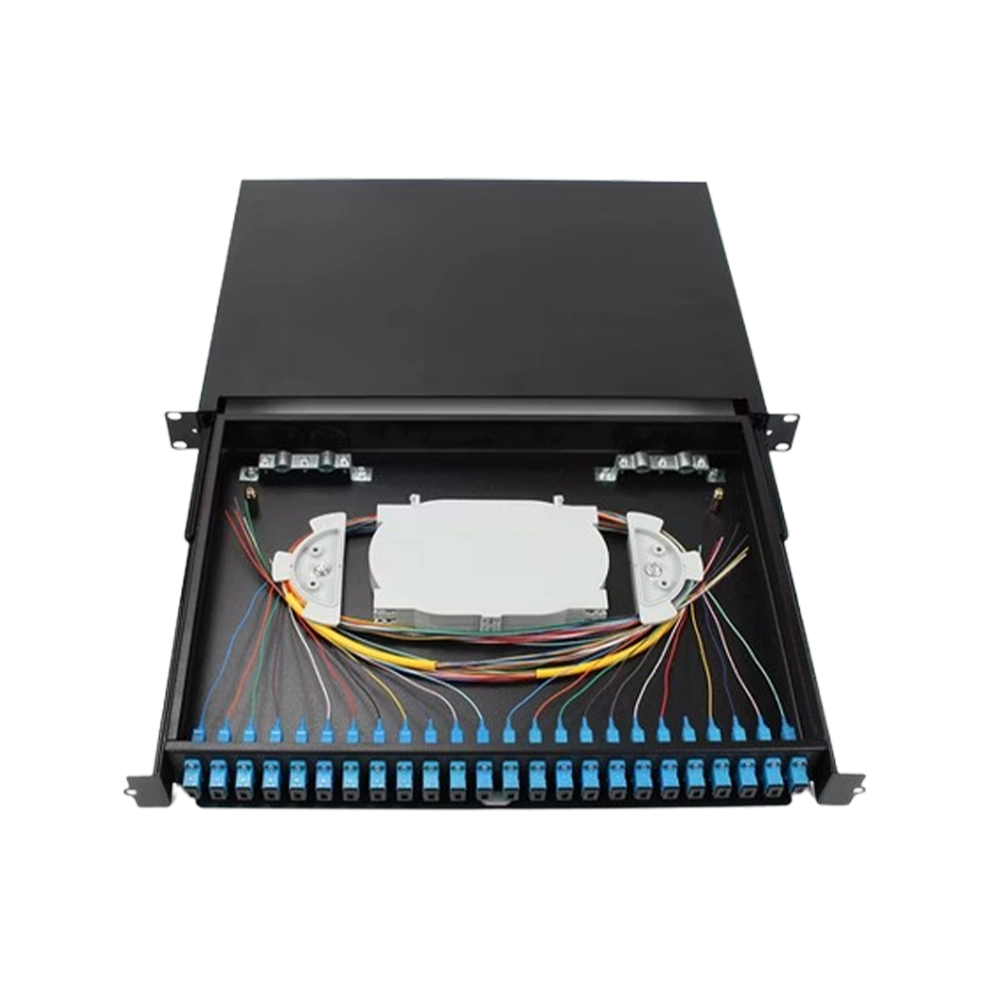

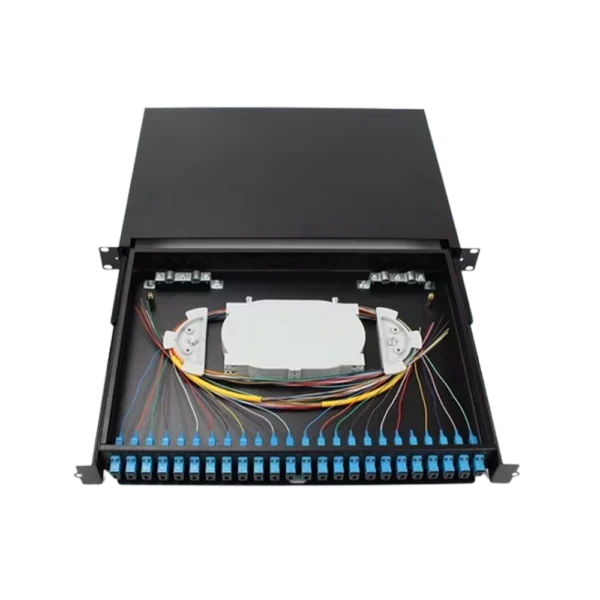

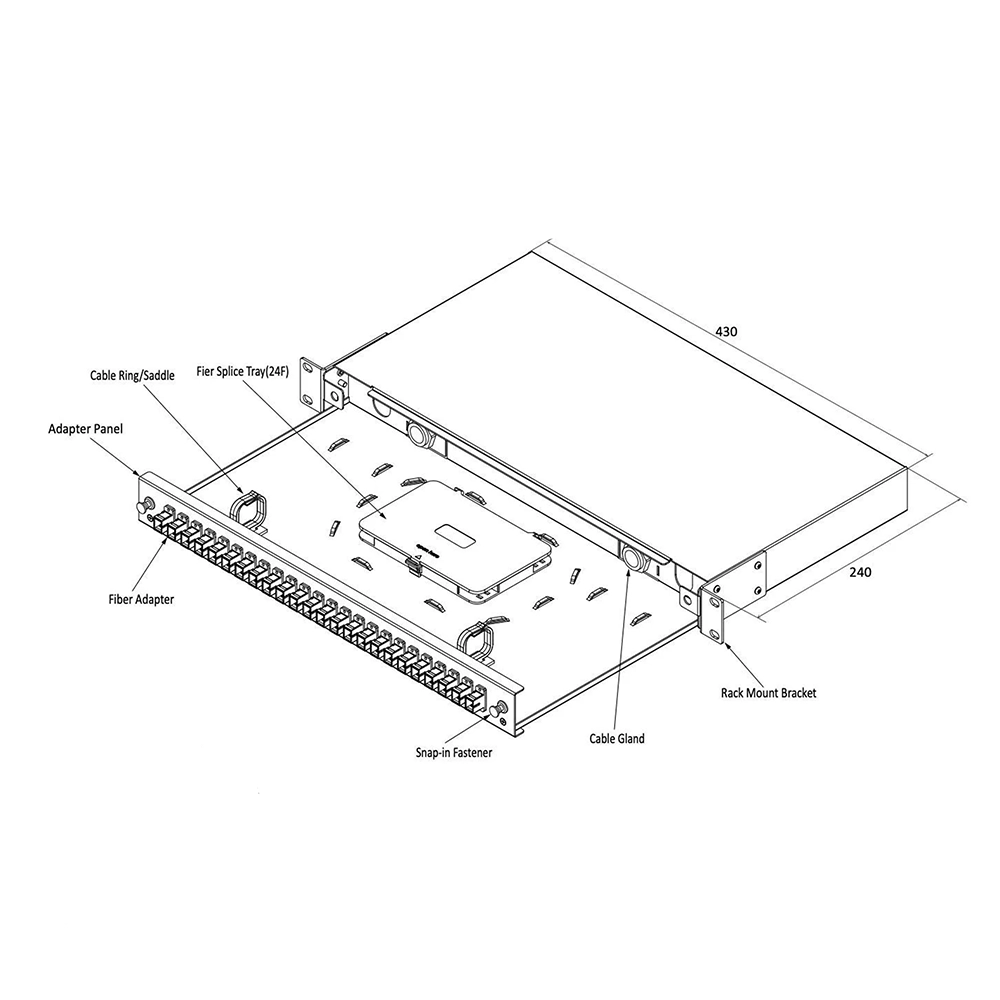

Schnell Fiber Patch Panels are 19″ rack-mountable and designed for secure fiber optic terminations. Featuring internal cable clamps, a fixed-type splice tray with a plexiglass top, and a welded base screw for mounting, it supports various adapter plates (SC, LC, ST, FC, MTRJ, E2000). A lockable front door with spring screws and a powder-coated cold-rolled steel body ensures durability and protection.

Key Features

• 19″ rack-mountable body with lockable front door and spring screws
• Fixed-type splice tray with transparent Plexi top for easy access
• Supports multiple connector types (SC, LC, ST, FC, MTRJ, E2000)
• Powder-coated cold rolled steel body for strength and durability

Key Applications

• Termination and distribution of optical fiber in telecom networks
• Fiber management in data centers and enterprise racks
• Structured cabling systems for high-density installations
• Suitable for ODFs and cross-connects in backbone infrastructure

Standards

• Complies with EN 61587-1 for mechanical structure and performance
• Compatible with IEC 60297 and IEC 60917 rack standards
• Environmental tests per IEC 60068-2-1 / 2-2 / 2-30
• Earth bond tested to EN 61587-1 / 6.2
• Flammability rated under EN 61587-1 / 6.3

Part Numbers
