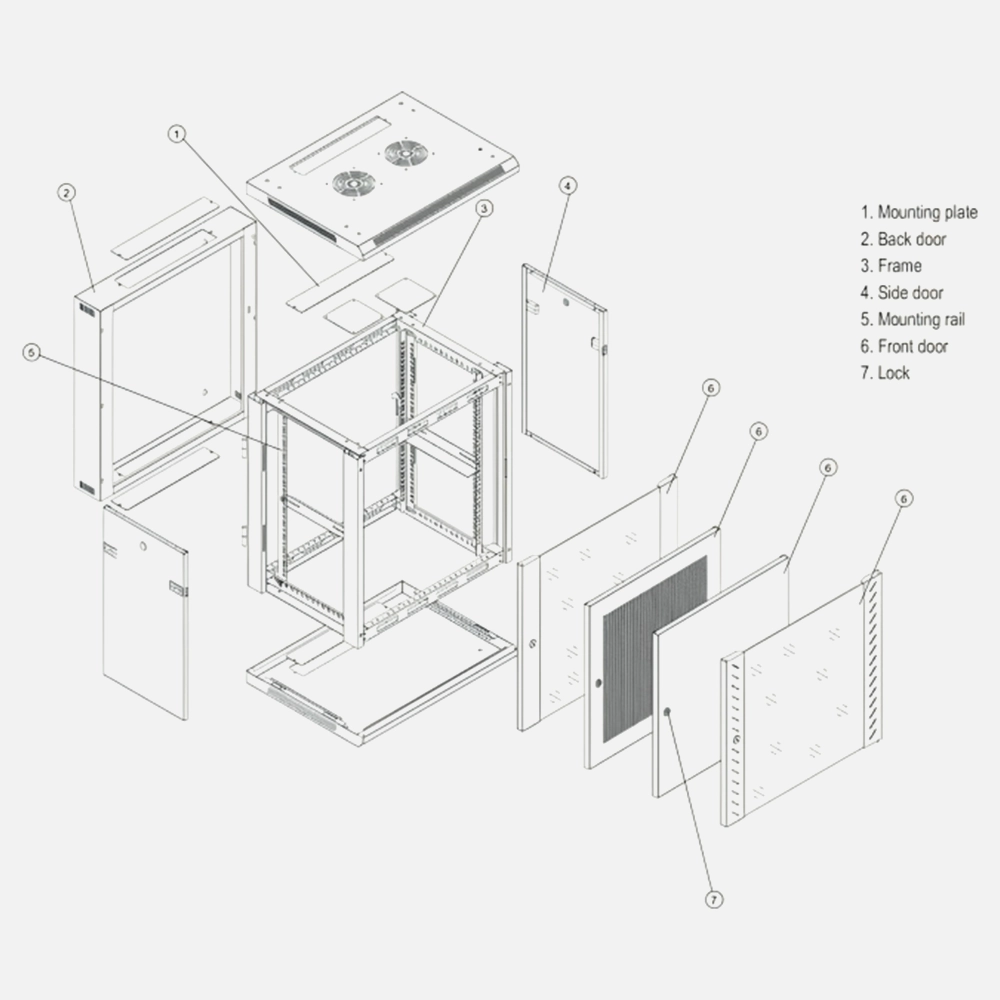

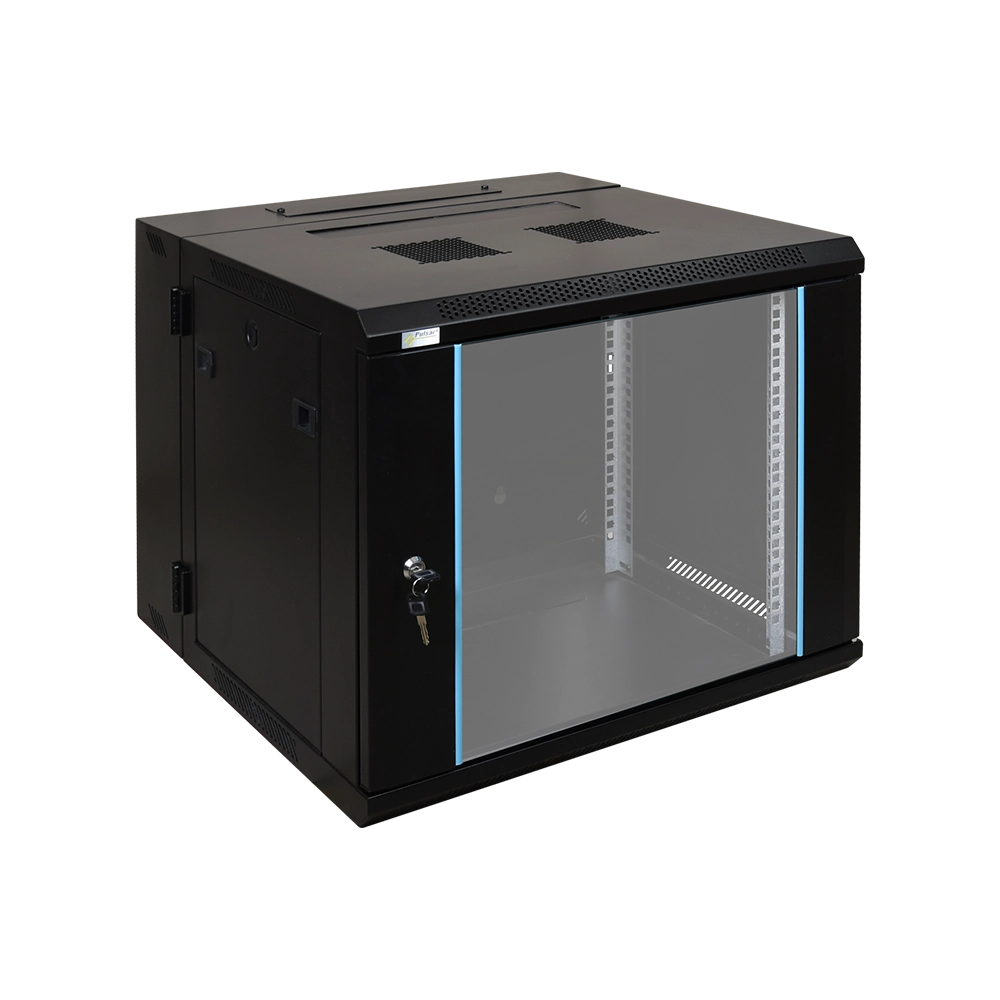

SCHNELL double section wall mount cabinet is designed for secure, space-efficient installation of networking and telecom equipment. It features a swing-out rear section for easy cable access, a lockable front glass door, and removable side panels. Built from cold-rolled steel, it ensures reliable equipment protection in office, data center, or industrial environments.

---

Key Features

• Double section design for easy rear access
• Lockable front door with tempered glass
• Adjustable 19” mounting rails
• Cable management through top and bottom panels

---

Key Applications

• Network distribution in telecom rooms
• Wall-mounted equipment enclosures
• Access control and surveillance systems
• Industrial or office structured cabling

---

Standards

• IEC 60297 – Mechanical structures for 19″ racks
• EN 61587-1 – Climatic and mechanical test compliance
• IEC 60068 – Environmental testing
• UL 94V-0 – Flammability standard
• ISO 9001 – Quality Assurance

---

Part Numbers

Part Number	Description	Dimension (W x D x H in mm)
SCZ-1010W65506AS	SCHNELL 6U 600/550 DOUBLE SECTION WALL MOUNTED CABINET		600 X 550 X 368
SCZ-1010W65509AS	SCHNELL 9U 600/550 DOUBLE SECTION WALL MOUNTED CABINET		600 X 550 X 501
SCZ-1010W65512AS	SCHNELL 12U 600/550 DOUBLE SECTION WALL MOUNTED CABINET		600 X 550 X 635
SCZ-1010W65515AS	SCHNELL 15U 600/550 DOUBLE SECTION WALL MOUNTED CABINET		600 X 550 X 769
SCZ-1010W6606AS	SCHNELL 6U 600/600 DOUBLE SECTION WALL MOUNTED CABINET		600 X 600 X 368
SCZ-1010W6609AS	SCHNELL 9U 600/600 DOUBLE SECTION WALL MOUNTED CABINET		600 X 600 X 501
SCZ-1010W6612AS	SCHNELL 12U 600/600 DOUBLE SECTION WALL MOUNTED CABINET		600 X 600 X 635
SCZ-1010W6615AS	SCHNELL 15U 600/600 DOUBLE SECTION WALL MOUNTED CABINET		600 X 600 X 769
