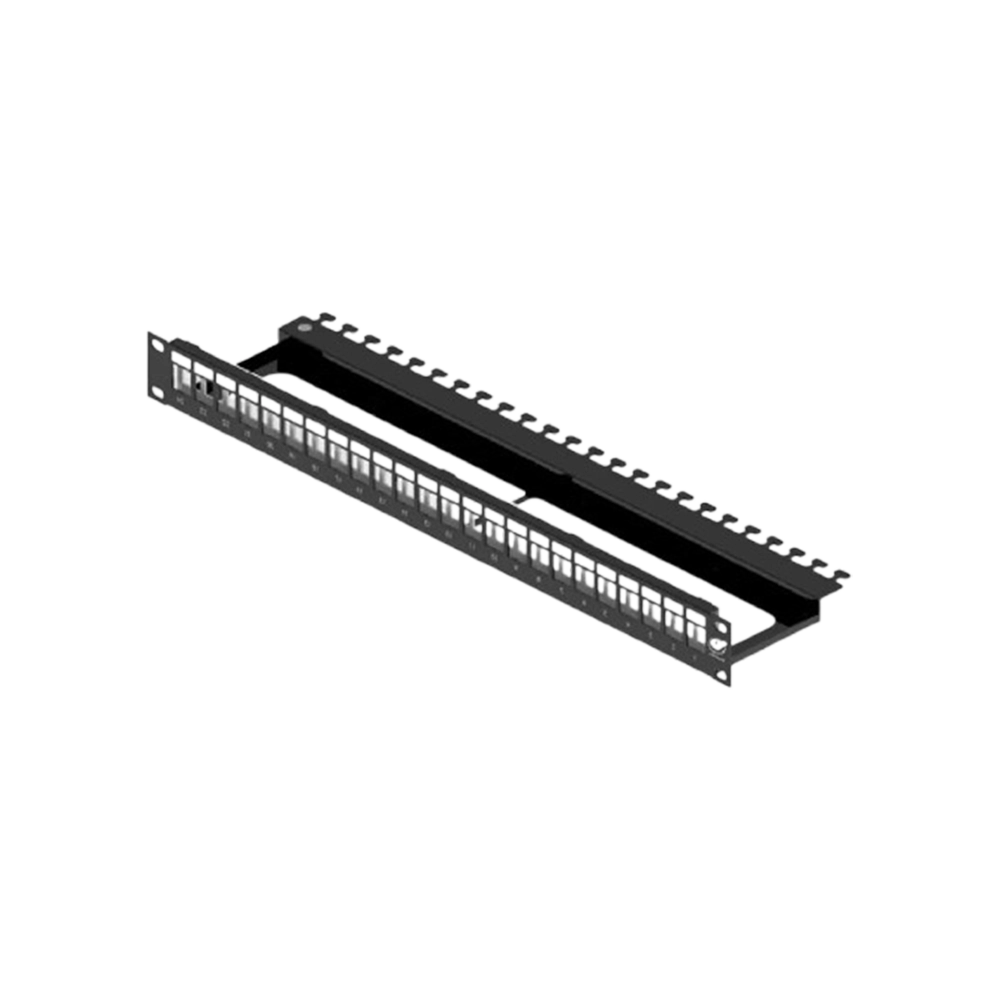

CAT6 UTP TOOL LESS PATCH PANEL
CAT6 UTP TOOL LESS PATCH PANEL - Image 2

CAT6 UTP TOOL LESS PATCH PANEL

Schnell Cat6 UTP Tool-less Patch Panel provides efficient and reliable network termination for Cat6 UTP cables. With a tool-free IDC mechanism, it supports quick cable insertion and secure locking. Compatible with 19″ racks, this panel reduces installation time while maintaining high performance up to 250 MHz for Gigabit Ethernet and PoE applications.

📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , , Brand:

Description

Schnell Cat6 UTP Tool-less Patch Panel provides efficient and reliable network termination for Cat6 UTP cables. With a tool-free IDC mechanism, it supports quick cable insertion and secure locking. Compatible with 19″ racks, this panel reduces installation time while maintaining high performance up to 250 MHz for Gigabit Ethernet and PoE applications.

Key Features

  • 19″ 24-port UTP tool-less blank patch panel
  • Compatible with Cat5e, Cat6, Cat6A keystone jacks
  • Integrated cable management bar for neat cabling
  • High-quality SPCC steel and PC construction

Key Applications

  • Structured cabling in data centers
  • Enterprise networking closets
  • High-density patching setups
  • Future-ready network backbone

Standards

  • ANSI/TIA-568.2-D (Cat6)
  • ISO/IEC 11801 Class E
  • IEC 60603-7 compliant RJ45 modules
  • EN 50173-1 for generic cabling systems

Part Numbers

Part Number Description
SCZ-5010C6PP24TP SCHNELL CAT6 UTP 24 PORT TOOL LESS PATCH PANEL
SCZ-5010C6 PP48TP SCHNELL CAT6 UTP 48 PORT TOOL LESS PATCH PANEL

MATERIAL CONSTRUCTION

Parameter Specification
Panel Material SPCC (Steel Plate Cold Rolled Commercial)
Plastic Material PC (Polycarbonate)
Color Black front panel with black cable support bar
Port Slots 24 × RJ45 keystone jack positions
Mounting Standard 19″ rack-mount (1U)
Cable Management Integrated rear cable support bar

CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Frequency Support

Compatibility

Impedance

Return Loss / NEXT

 : Up to 250 MHz

: Cat5e / Cat6 / Cat6A

: 100 Ω ± 15% @ 1–250 MHz

: Complies with Cat6 standards
MECHANICAL & TRANSMISSION DATA

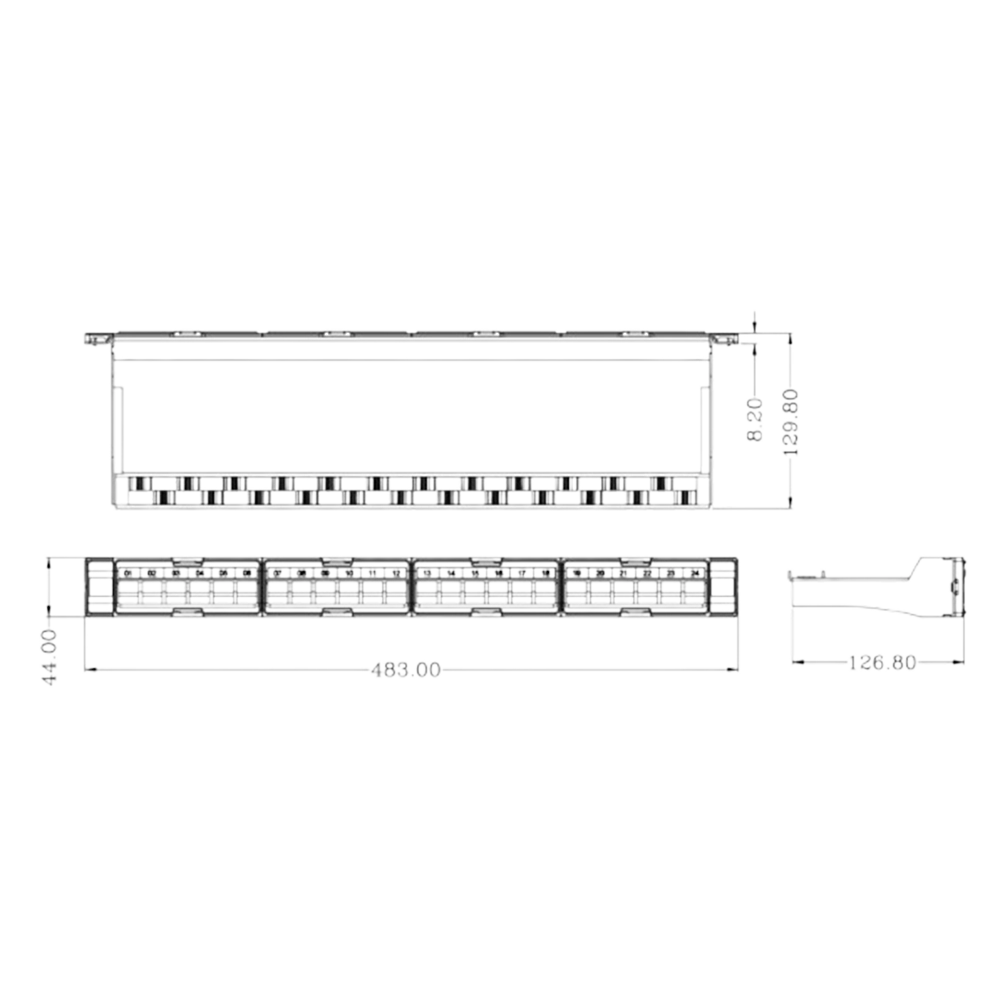

Panel Size

Port Count

Depth

Operating Temperature

Material Finish

Cable Support Bar

 : 1U, 19″ rack standard

: 24-port blank panel

: ~100 mm

: -10 °C to +60 °C

: Powder-coated black

: Yes (Rear-mounted) and Krone punch tools
REACTION TO FIRE
Flammability

Panel Material



Plastic Parts

 : UL 94 V-0 rated materials

: SPCC Steel with fire-resistant coating

: Flame-retardant PC

PART NUMBER

Part Number Description
SCZ-5010C6PP24TP SCHNELL CAT6 UTP 24 PORT TOOL LESS PATCH PANEL
SCZ-5010C6 PP48TP SCHNELL CAT6 UTP 48 PORT TOOL LESS PATCH PANEL
