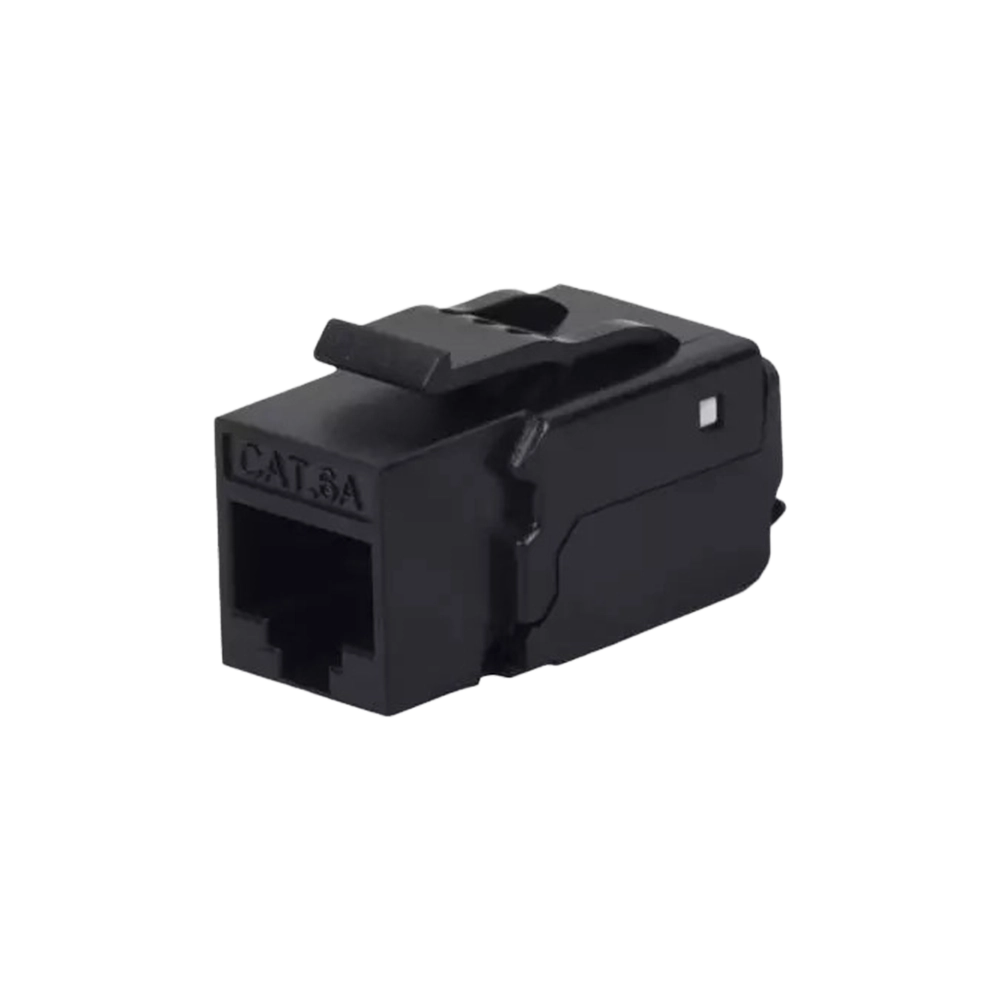

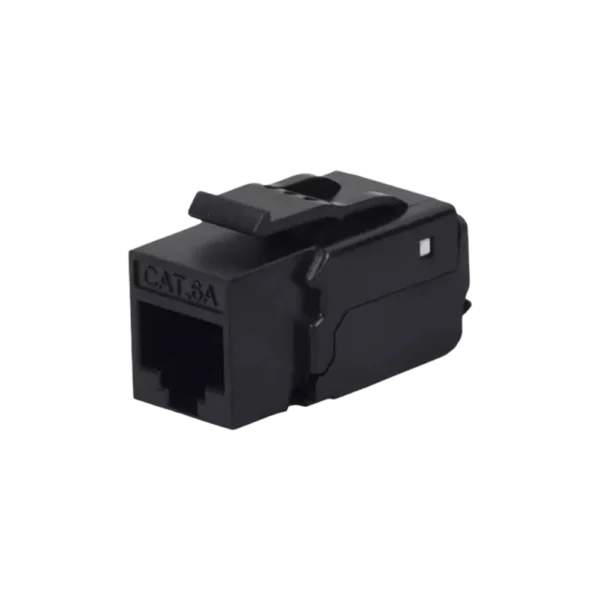

Schnell Category 6 UTP Tool-less Keystone Jack offers reliable high-speed performance up to 250 MHz, supporting Gigabit Ethernet and PoE. Designed for fast, tool-free termination of 23–26 AWG solid or stranded cables, it ensures stable connections with minimal crosstalk. The compact snap-fit design suits patch panels, faceplates, and surface mount boxes with a secure locking latch.

Key Features

• Punch-down UTP modular design
• Exceeds TIA/ISO standards
• Supports PoE & high-bandwidth networks
• Ideal for structured cabling racks

Key Applications

• Data centers and server rooms
• LAN and multimedia distribution
• VoIP and IP camera networks
• Power over Ethernet systems

Standards

• ANSI/TIA-568.2-D
• ISO/IEC 11801 Class E
• EN 50173-1
• IEC 60603-7

Part Numbers
