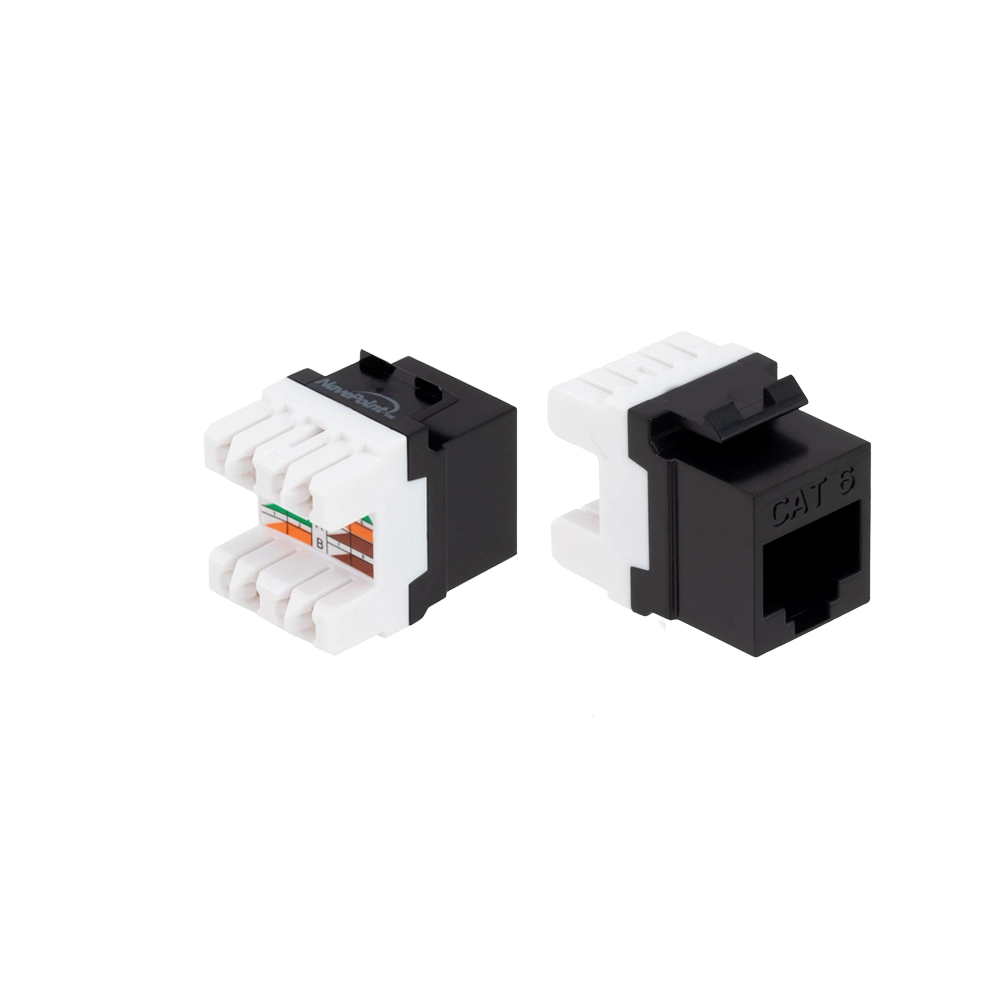

CAT6 UTP SHUTTERED KEYSTONE JACK

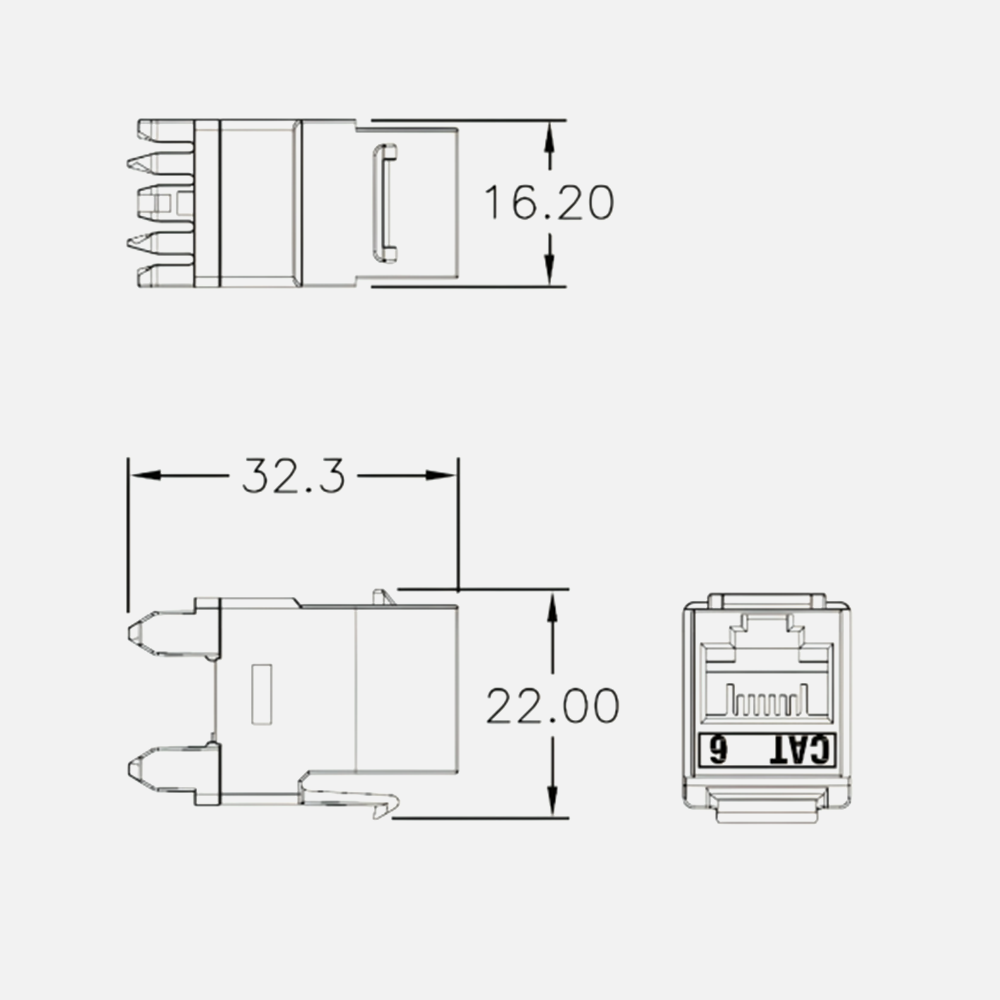

CAT6 UTP SHUTTERED KEYSTONE JACK - Image 2

CAT6 UTP SHUTTERED KEYSTONE JACK

Schnell Category 6 UTP Keystone Jack with built-in shutter ensures reliable, high-speed connectivity up to 250 MHz Designed for 23–26 AWG solid or stranded cables, it supports Gigabit Ethernet and PoE applications. The shutter protects from dust, and the punch-down mechanism enables quick installation in patch panels, faceplates, and surface boxes.

📥 DOWNLOAD DATASHEET

Categories: , Tags: , , , Brand:

Description

Schnell Category 6 UTP Keystone Jack with built-in shutter ensures reliable, high-speed connectivity up to 250 MHz Designed for 23–26 AWG solid or stranded cables, it supports Gigabit Ethernet and PoE applications. The shutter protects from dust, and the punch-down mechanism enables quick installation in patch panels, faceplates, and surface boxes.

Key Features

  • Punch-down UTP modular design
  • Exceeds TIA/ISO standards
  • Supports PoE & high-bandwidth networks
  • Ideal for structured cabling racks

Key Applications

  • Data centers and server rooms
  • LAN and multimedia distribution
  • VoIP and IP camera networks
  • Power over Ethernet systems

Standards

  • ANSI/TIA-568.2-D
  • ISO/IEC 11801 Class E
  • EN 50173-1
  • IEC 60603-7

Part Numbers

Part Number Description
SCZ-5010C6KJS SCHNELL CAT6 UTP KEYSTONE JACK SHUTTERED 180D

MATERIAL CONSTRUCTION

Parameter Specification
Housing Material High-Impact Polycarbonate (UL94 V-0)
Contact Blade Phosphor Bronze
Contact Plating 50 μin Gold over Nickel
IDC Terminal Compatible with 110 & Krone tools
Shutter Integrated, spring-loaded dust cover
Wire Gauge Support 23–26 AWG solid or stranded
Color White / Ivory / Custom

CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Contact Resistance

Insulation Resistance

Dielectric Strength

Voltage Rating

Current Rating

Operating Temperature

 : ≤ 20 mΩ

: ≥ 500 MΩ

: 1000 V AC, 60 sec

: 150 V

: 1.5 A Max

: -10°C to +60°C


MECHANICAL & PHYSICAL CHARCHTERISTICS
Insertion Durability

Termination Style

Compatibility

Connector Type

Wiring Scheme

 : ≥ 750 Mating Cycles

: Punch-Down

: Faceplates, Patch Panels, Surface Boxes

: RJ45 (8P8C)

: T568 A & B
REACTION TO FIRE
Housing Flammability

Halogen Content

 : UL94 V-0

: Low (Available in LSZH assemblies)

PART NUMBER

Part Number Description
SCZ-5010C6KJS SCHNELL CAT6 UTP KEYSTONE JACK SHUTTERED 180D
