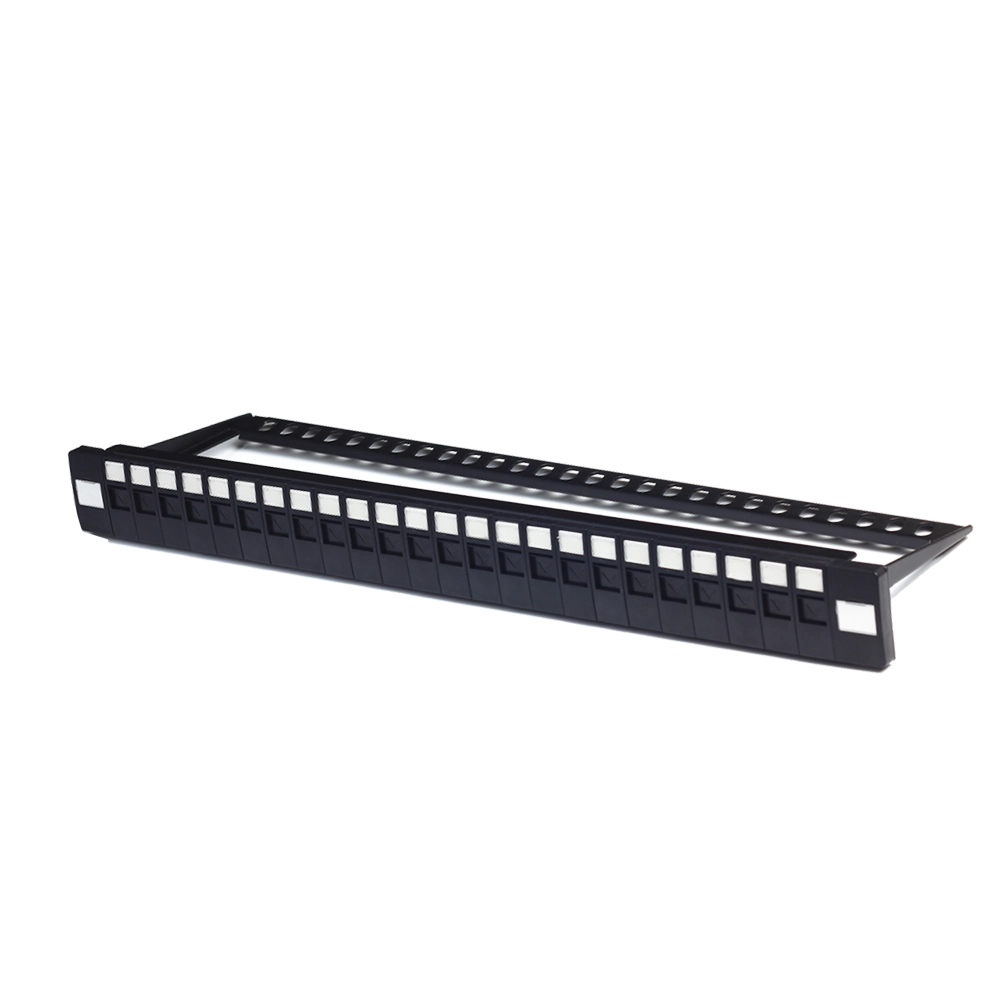

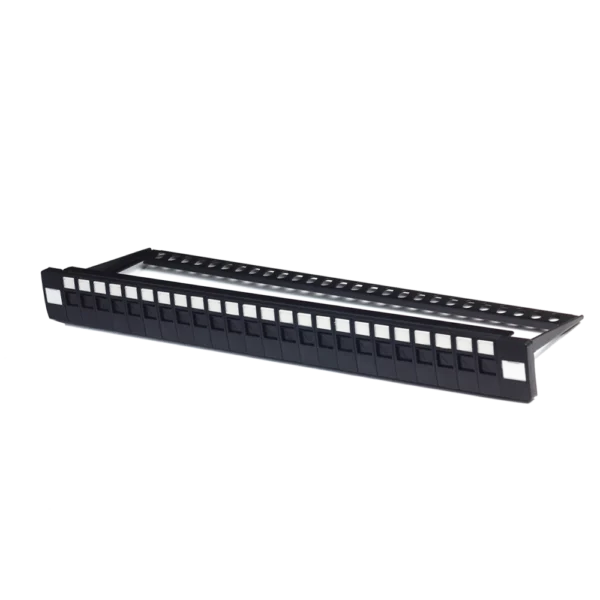

Schnell’s blank UTP punch-down patch panels are built to exceed TIA and ISO component standards. Designed for modern network convergence, they ensure high bandwidth, optimal performance, and long-term reliability. Ideal for LAN, multimedia, and Power over Ethernet (PoE) applications, these panels provide a robust and scalable solution for structured cabling installations.

📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , , Brand:

Description

Schnell’s blank UTP punch-down patch panels are built to exceed TIA and ISO component standards. Designed for modern network convergence, they ensure high bandwidth, optimal performance, and long-term reliability. Ideal for LAN, multimedia, and Power over Ethernet (PoE) applications, these panels provide a robust and scalable solution for structured cabling installations.

Key Features

  • Exceeds TIA and ISO component standards
  • Supports high bandwidth and Gigabit applications
  • Compatible with LAN, multimedia, and PoE setups
  • Durable metal construction with easy punch-down termination
  • Clear port labeling for easy identification and management

Key Applications

  • Structured cabling systems in offices and data centers
  • Local Area Networks (LAN)
  • Multimedia distribution networks
  • Power over Ethernet (PoE) installations
  • Rack-mounted network infrastructure systems

Standards

  • IEEE 802.af, IEEE 802.3at for PoE applications.

ISO/IEC 11801 Class E, TIA/EIA-568B.2-1

Part Numbers

Part Number Description
SCZ-5010C6PD24P SCHNELL CAT6 UTP 24 PORT PUNCH DOWN PATCH PANEL
SCZ-5010C6PD48P SCHNELL CAT6 UTP 48 PORT PUNCH DOWN PATCH PANEL

MATERIAL CONSTRUCTION

Parameter Specification
Panel Type Flat
Panel Style Blank
Mounting Style Punch Down (Module)

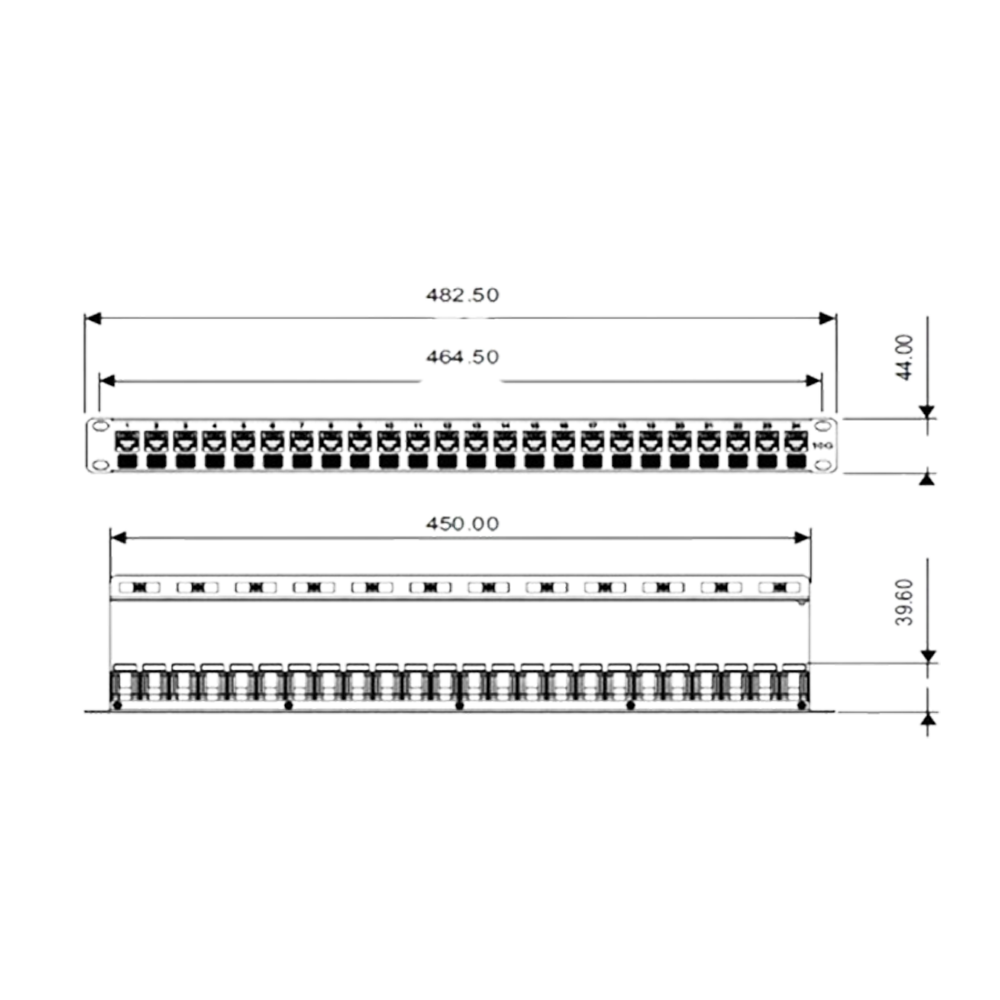

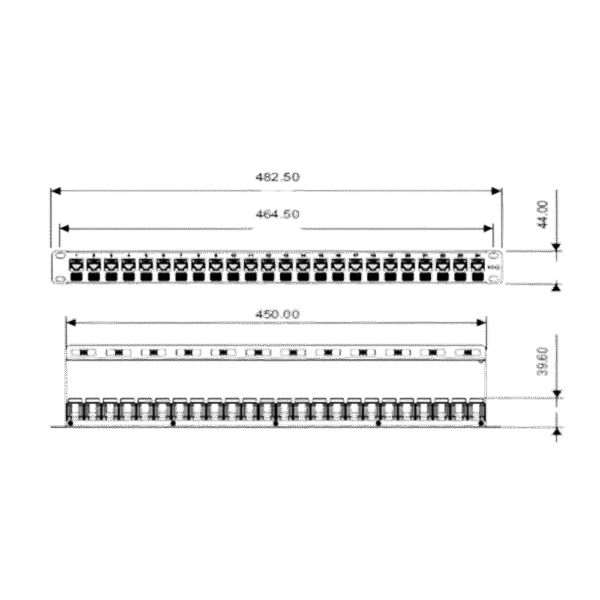

Panel Width 483 mm (19”)
Panel Height 1U: 44.2 mm & 2U: 88 mm
Panel Depth 109 mm
Port Identification Numbered with writable label fields
Rear Cable Support Integrated cable management bar (optional)
IDC Terminal Type Compatible with 110 and Krone tools
Wire Gauge Support 22–26 AWG solid conductors
Operating Temperature -10°C to +60°C
Storage Temperature -40°C to +70°C
Humidity Resistance Up to 93% non-condensing

CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Performance Rating

Bandwidth Support

Return Loss

Insertion Loss

Crosstalk (NEXT/AXT)

 : Category 6 / Class E

: Up to 250 MHz

: High return loss for stability

: Low, meets Cat6 limits

: Optimized to reduce interference
MECHANICAL & TRANSMISSION DATA
Panel Type

Material

Port Configuration

Mounting Style

IDC Compatibility

 : Unshielded Punch-Down

: Powder-coated steel

: 24, or 48 ports

: Standard 19-inch rack mount

: 110 and Krone punch tools
REACTION TO FIRE
Patch Panel Housing





 : Powder-coated metal with flame-retardant plastic parts



PART NUMBER

Part Number Description
SCZ-5010C6PD24P SCHNELL CAT6 UTP 24 PORT PUNCH DOWN PATCH PANEL
SCZ-5010C6PD48P SCHNELL CAT6 UTP 48 PORT PUNCH DOWN PATCH PANEL
