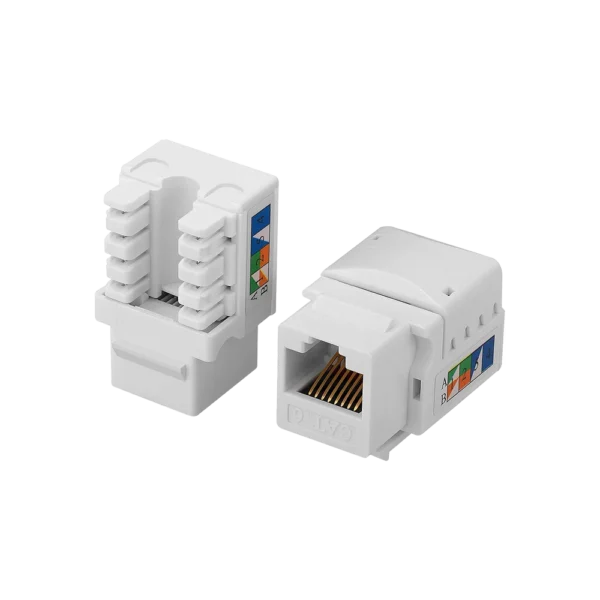

CAT6 UTP KEYSTONE JACK 90D

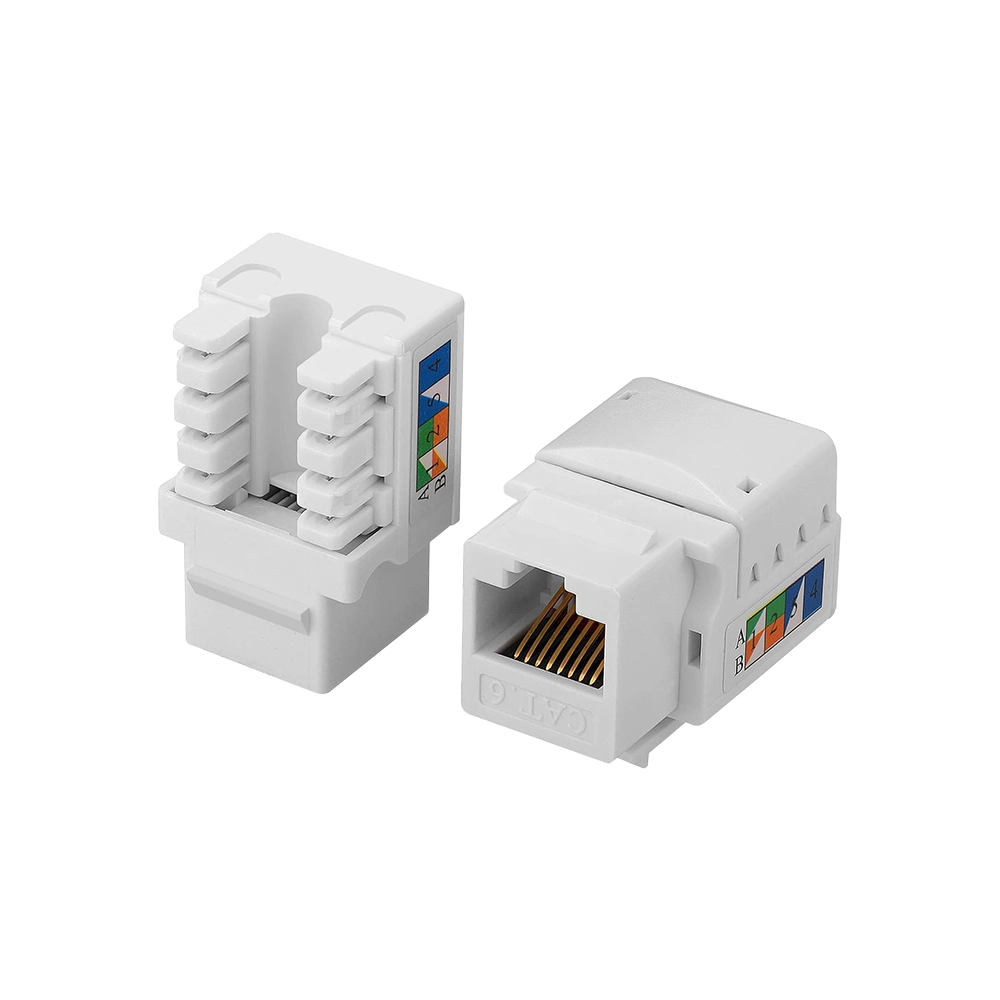

CAT6 UTP KEYSTONE JACK 90D - Image 2

CAT6 UTP KEYSTONE JACK 90D

Schnell CAT6 UTP 90° Keystone Jack provides high-speed, reliable connections for Gigabit Ethernet and voice/data networks. It supports transmission frequencies up to 250 MHz and is designed for use with 23–26 AWG solid and stranded cables. With a 90° IDC termination and durable housing, this jack ensures secure connections and reduced crosstalk in structured cabling systems.

📥 DOWNLOAD DATASHEET

Categories: , Tags: , , Brand:

Description

Schnell CAT6 UTP 90° Keystone Jack provides high-speed, reliable connections for Gigabit Ethernet and voice/data networks. It supports transmission frequencies up to 250 MHz and is designed for use with 23–26 AWG solid and stranded cables. With a 90° IDC termination and durable housing, this jack ensures secure connections and reduced crosstalk in structured cabling systems.

Key Features

  • 90° IDC for easy rear cable access
  • High-performance design up to 250 MHz
  • Snap-in keystone form for modular setups
  • Tool-compatible for quick punch-down installation

Key Applications

  • LAN and Gigabit Ethernet networks
  • Patch panel and wall outlet terminations
  • Office, campus, and industrial buildings
  • Structured cabling for voice/data systems

Standards

  • ANSI/TIA-568.2-D
  • ISO/IEC 11801
  • EN 50173-1
  • IEC 60603-7

Part Numbers

Part Number Description
SCZ-5010C6KJ SCHNELL CAT6 UTP KEYSTONE JACK 90D

MATERIAL CONSTRUCTION

Parameter Specification
Housing Material Flame-retardant Polycarbonate (UL94 V-0)
Contact Blade Material Phosphor Bronze
Contact Plating Gold over Nickel (50 μin)
IDC Material Phosphor Bronze
IDC Type 90° Punch-down
Wire Gauge Compatibility 23–26 AWG Solid or Stranded
Color White / Black / Custom

CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Contact Resistance

Insulation Resistance

Dielectric Strength

Current Rating

Operating Voltage

Frequency Range

 : ≤ 20 mΩ

: ≥ 500 MΩ

: 1000 V AC / 60 sec

: 1.5 A Max

: 150 V Max

: Up to 250 MHz
MECHANICAL & PHYSICAL CHARCHTERISTICS
Insertion Durability

Termination Type

Wiring Scheme

Compatibility

Connector Type

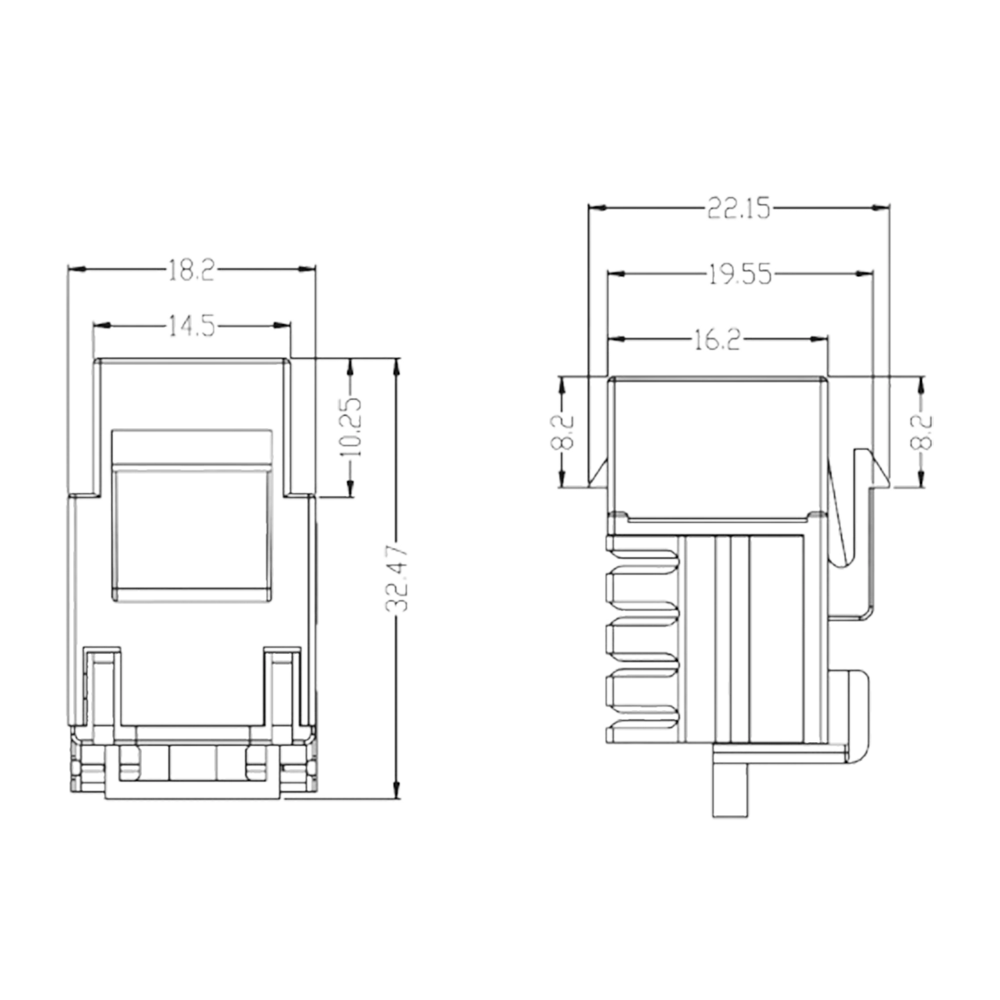

Dimensions

 : ≥ 750 Mating Cycles

: Punch-down (90°)

: T568 A & B

: Standard Faceplates, Patch Panels

: RJ45 (8P8C)

: Standard Keystone Profile 30 – 250 MHz
REACTION TO FIRE
Housing Flammability

Halogen Content

 : UL94 V-0

: LSZH Options Available

PART NUMBER

Part Number Description
SCZ-5010C6KJ SCHNELL CAT6 UTP KEYSTONE JACK 90D
