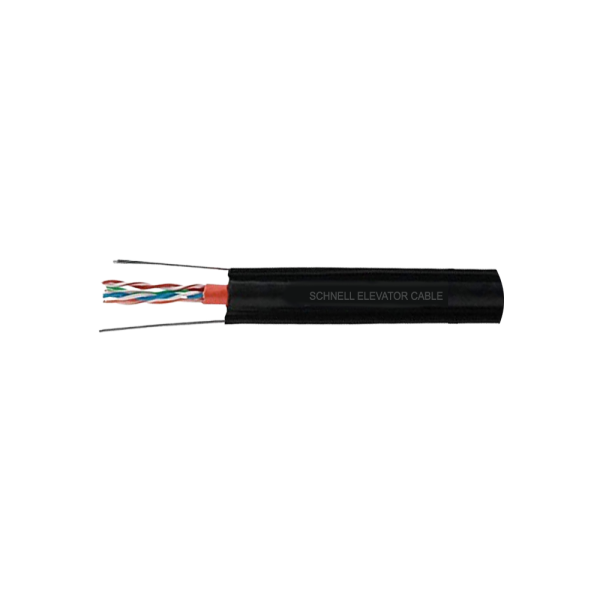

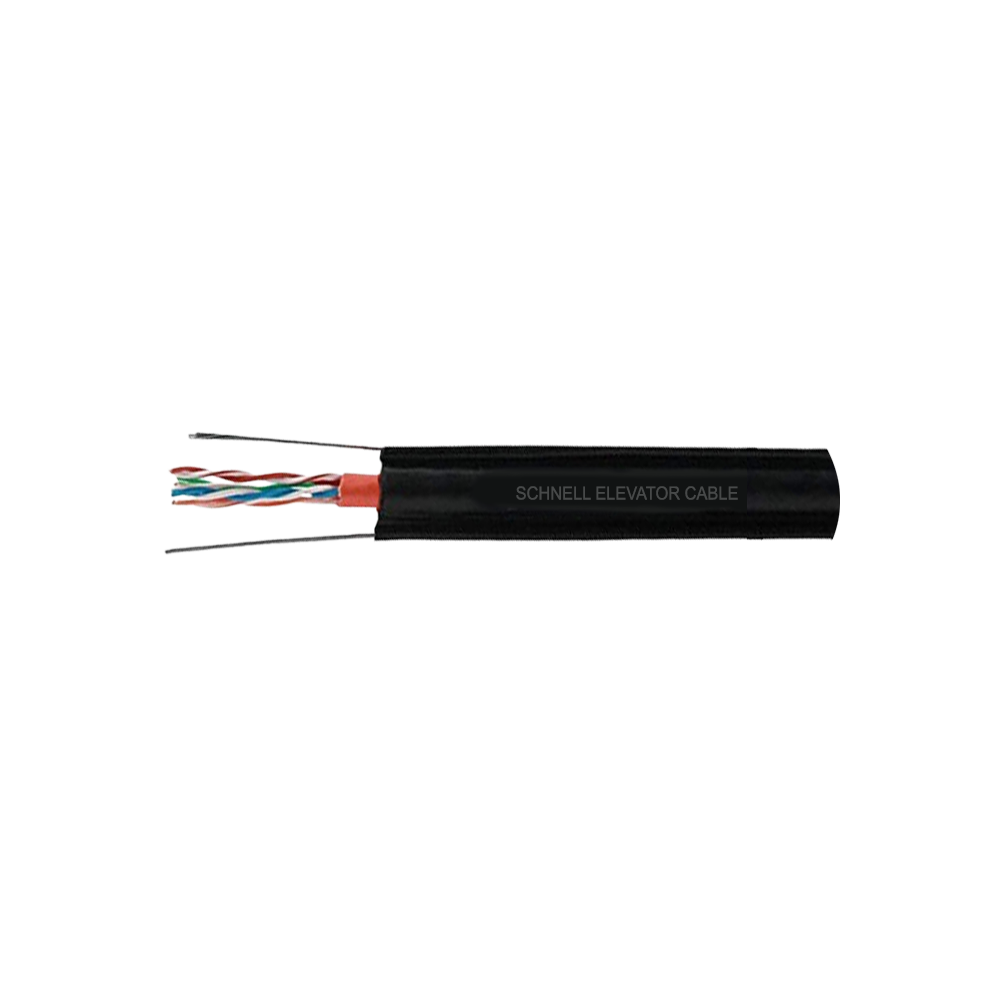

CAT6 UTP 23 AWG 4 PAIR ELEVATOR CABLE

Schnell CAT6 UTP Elevator Cable is a high-performance 4-pair 23 AWG unshielded twisted pair (U/UTP) cable designed for vertical, flexible installations such as elevators. Tested to 500 MHz, it supports 10/100/1000BASE-T and PoE applications. The robust LSZH/PVC jacket ensures flame resistance and mechanical durability under constant motion.

📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , , Brand:

Description

Schnell CAT6 UTP Elevator Cable is a high-performance 4-pair 23 AWG unshielded twisted pair (U/UTP) cable designed for vertical, flexible installations such as elevators. Tested to 500 MHz, it supports 10/100/1000BASE-T and PoE applications. The robust LSZH/PVC jacket ensures flame resistance and mechanical durability under constant motion.

Key Features

  • Flexible for vertical motion in elevator shafts
  • Tested up to 500 MHz for Gigabit Ethernet
  • Flame-retardant jacket (PVC/LSZH)
  • Excellent mechanical durability and tensile strength

Key Applications

  • Elevator cabling systems
  • 10/100/1000BASE-T Ethernet
  • Power over Ethernet (PoE)
  • CCTV, VoIP, ISDN, ATM, and broadband video

Standards

  • ANSI/TIA-568.2-D
  • ISO/IEC 11801:2011 Ed 2.2
  • IEC 60332-1-2
  • EN 50173-1 & EN 50173-2
  • IEC 61935-2:2010 Ed 3.0

Part Numbers

Part Number Description
SCZ-5010C623ELBK SCHNELL CAT6 UTP 23 AWG 4 PAIR ELEVATOR CABLE PVC

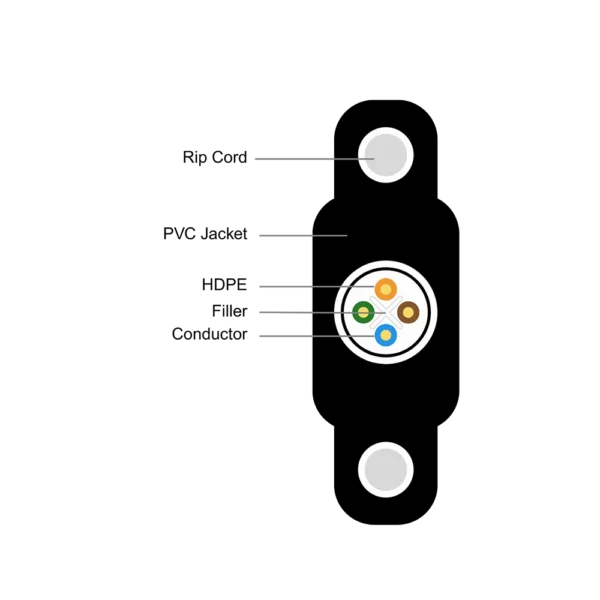

MATERIAL CONSTRUCTION

Parameter Specification
Conductor Solid Bare Copper
Conductor Size 23 AWG
Twisting 4-Pair U/UTP
Insulation Material HD-PE (High-Density Polyethylene)
Jacket Material PVC or LSZH (Flame Retardant, UL94V-0)
Contact Blade Phosphor Bronze
Gold Plating 30 µin
Color Options Aqua, Black, Blue, Green, etc.

CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Frequency Range

Impedance

DC Conductor Resistance

Resistance Unbalance

Insulation Resistance

Contact Resistance

Dielectric Strength

 : Up to 500 MHz

:100 ± 6 Ω

: ≤ 20 Ω

: ≤ 2%

: ≥ 10 MΩ

: ≤ 20 mΩ

: 1000 V / 1 min
PHYSICAL CHARACTERISTICS
Outer Jacket

Cable to Plug Tensile Strength

Durability (Plug Cycles)

Operating Temperature Range



 : PVC / LSZH

: ≥ 90 N (9 Kgf)

: ≥ 750 Cycles

: -25°C to +70°C
REACTION TO FIRE
Flame Retardant Rating

Material Flammability

Low Smoke / Halogen Free

 : IEC 60332-1-2

UL 94 V-0

Available in LSZH Option

PART NUMBER

Part Number Description
SCZ-5010C623ELBK SCHNELL CAT6 UTP 23 AWG 4 PAIR ELEVATOR CABLE PVC
