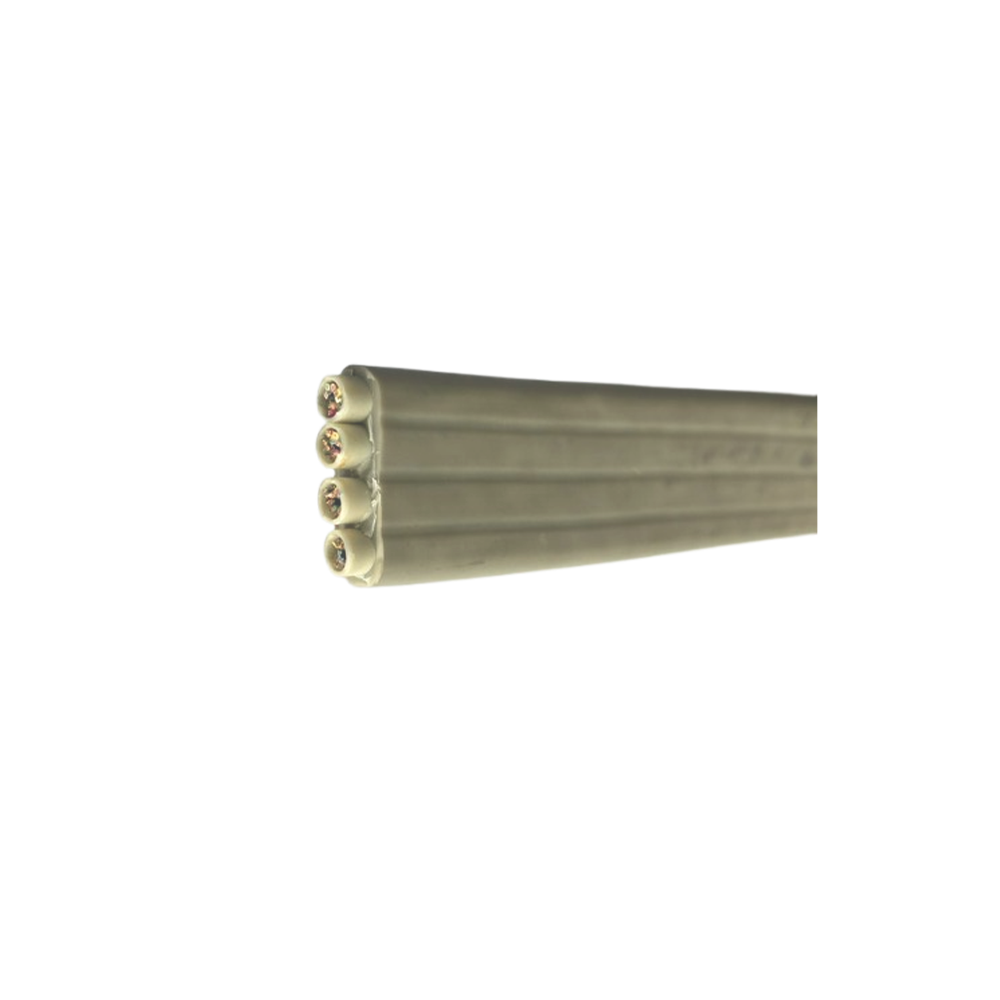

Schnell Cat6 U/UTP 23 AWG 16 pair flat elevator cable delivers Category 6/Class E performance up to 250 MHz over 60 m channels. Featuring stranded conductors, HDPE insulation, and a flexible elastic PVC jacket, it’s designed for elevator shafts and travelling applications. With excellent EMI immunity and mechanical robustness, it supports Gigabit Ethernet, voice, and video in confined, moving environments.

Key Features

• Cat6/Class E performance in a compact, flat design
• Elastic PVC sheath withstands constant flexing in elevators
• 16 pairs allow multiple data, voice, or video lines
• Dual steel support wires for mechanical integrity

Key Applications

• Elevator cabling for data, IP cameras, intercoms
• Moving cable applications in shafts and lifts
• Structured cabling for voice, data, and video circuits
• OEM installations in elevator control systems

Standards

• Category 6/Class E (ISO/IEC 11801, TIA/EIA-568)
• Environmental and performance tested to EN 50288‑5‑1
• IEC 60332‑1‑2 vertical flame test compliant
• RoHS-compliant materials

Part Numbers
