Schnell Category 6 UTP cables exceed Cat 6/Class E standards, supporting Gigabit 1000Base-T and 1000Base-TX up to 100 meters. Tested to 250 MHz, they offer superior pair-balance for better EMC, reduced signal interference, and improved alien crosstalk resistance. Flame-retardant and LSZH (Low Smoke Zero Halogen) rated, they ensure safer, high-performance network installations.

Key Features

• E Series product line

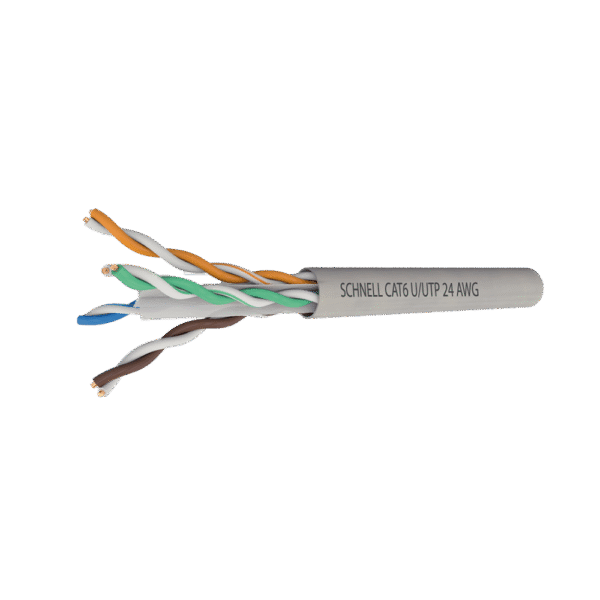

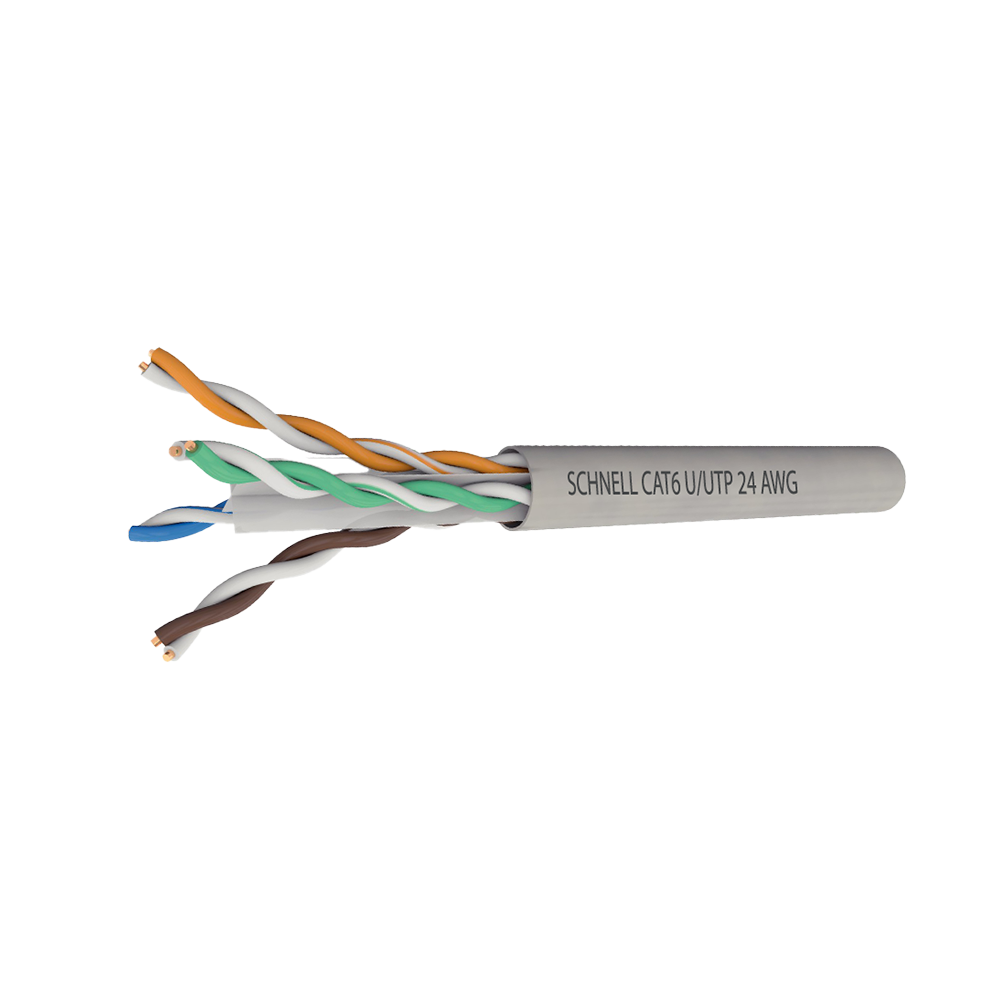

• U/UTP twisted pair with solid bare copper conductors
• Central separator for increased internal crosstalk performance
• Reel and box packaging are 100% recyclable
• Tested up to 250 MHz

Key Applications

• Gigabit Ethernet, PoE for IP devices
• LAN cabling and Data center
• CCTV connectivity and Smart building systems
• VoIP, Wi-Fi uplinks
• Home/office networking

Standards

• Supports IEEE 802.3af (PoE) and 802.3at (PoE+)
• Flame retardant and LSZH (IEC 60332-1, 60754, 61034)
• ANSI/TIA-568.2-D Category 6 compliant
• ISO/IEC 11801 Class E & IEC 61156-5 certified

Part Numbers
