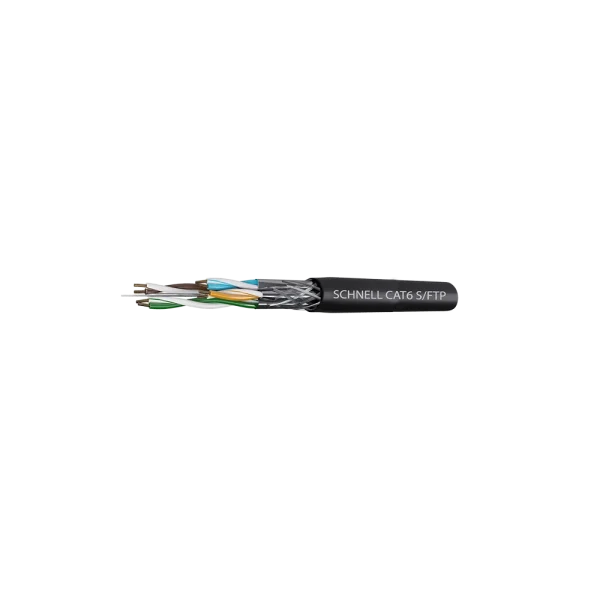

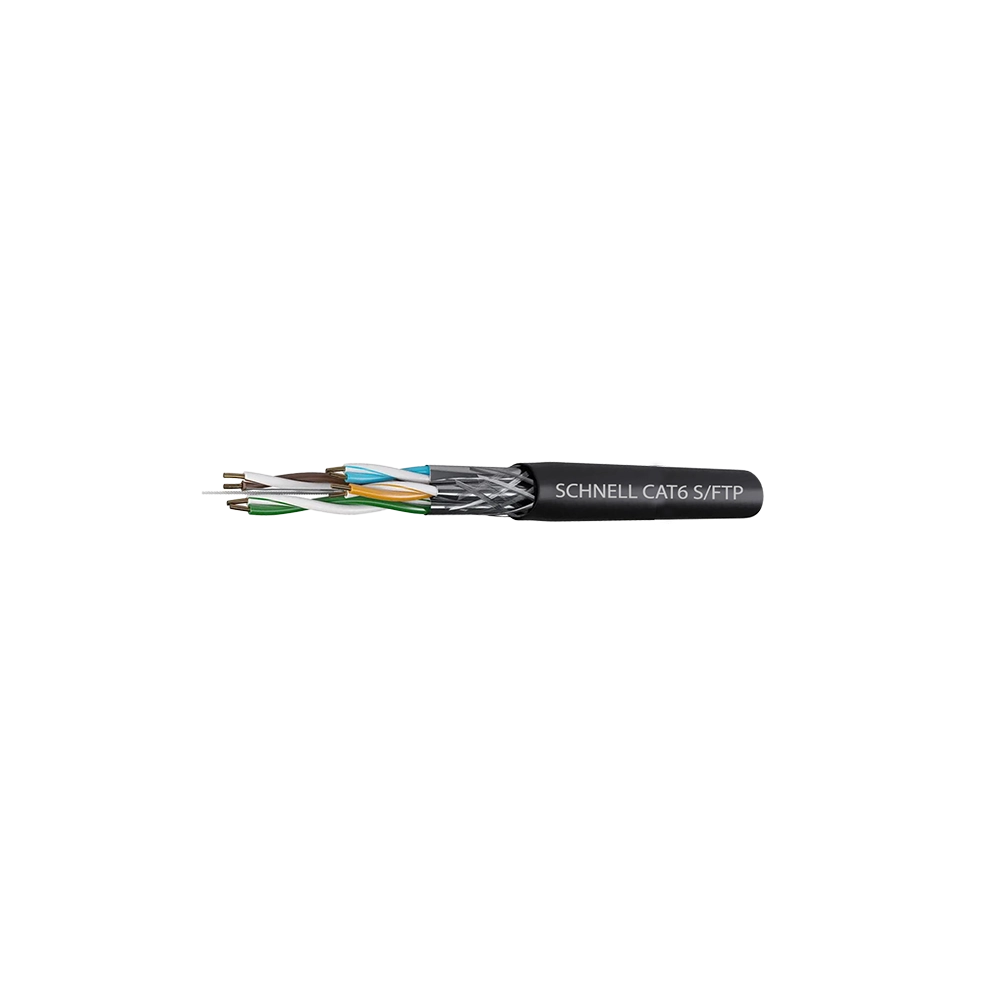

Schnell Category 6 S/FTP 4 Pair External Cable exceeds Cat 6/Class E standards, tested up to 250 MHz, and supports Gigabit 1000Base-T/TX up to 100 meters. Its S/FTP construction provides superior electromagnetic compatibility (EMC), minimizes external interference, and improves alien crosstalk, making it ideal for shielded, high-speed networking in demanding environments.

Key Features

• S/FTP construction with foil-shielded pairs and braided overall shield
• 23 AWG solid bare copper conductors
• Enhanced EMI and alien crosstalk suppression
• LSZH jacket – flame retardant and low smoke
• Tested up to 250 MHz for high-speed transmission

Key Applications

• Gigabit Ethernet (1000Base-T/Tx)
• PoE/PoE+ (IEEE 802.3af/at)
• Shielded LAN in high EMI environments
• Data centers and backbone cabling
• IP CCTV and smart building systems
• Outdoor and industrial installations

Standards

• TIA-568.2-D Category 6 compliant
• ISO/IEC 11801 Class E
• IEC 61156-5
• IEC 60332-1 (flame retardant)
• IEC 60754 & IEC 61034 (low smoke, zero halogen)
