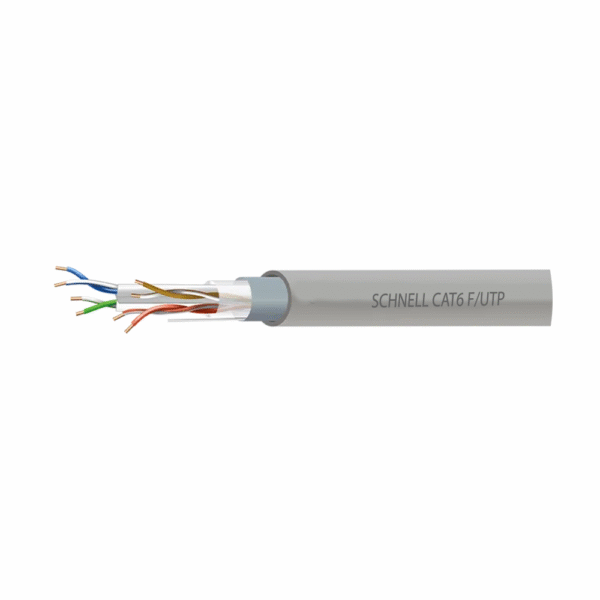

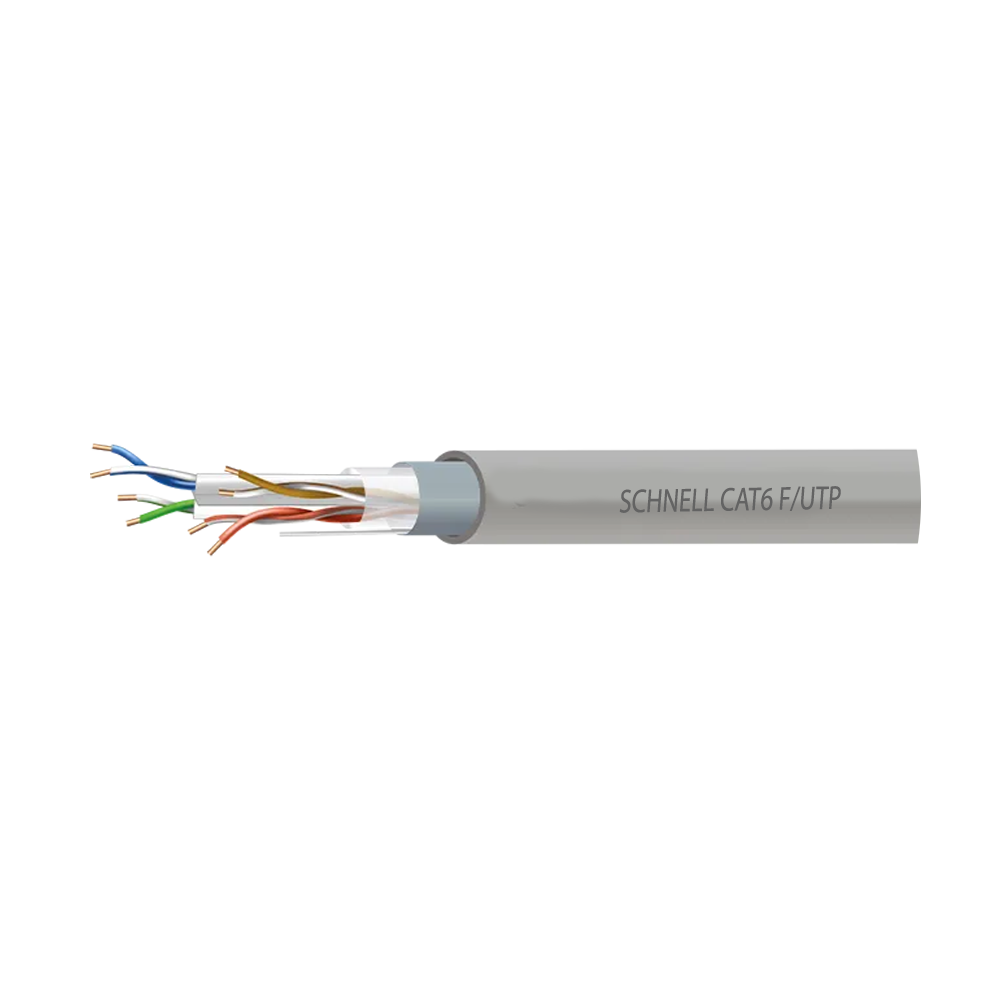

Schnell Cat6 F/UTP 23 AWG 4 pair cable meets Category 6/Class E specifications and is tested to 250 MHz. Designed for Gigabit Ethernet (1000BASE T/TX) over 100 m, it features an overall foil shield that minimizes EMI and alien crosstalk. With high pair-balance, PE insulation, LSZH jacketing, and a drain wire, it delivers superior noise immunity and EMC performance in demanding installations.

Key Features

• 100% overall foil shield with drain wire for superior EMC
• LSZH jacket, rip cord, and PE insulation for professional installations
• Meets stringent alien crosstalk and EMC requirements
• Supports Gigabit Ethernet and demanding Cat6 applications

Key Applications

• High-performance LAN and structured cabling
• Industrial and EMI-sensitive environments
• Data centers and backbone connections
• PoE, VoIP, and high-speed Ethernet networks

Standards

• ANSI/TIA‑568‑C.2:2009 Cat 6
• ISO/IEC‑11801 Class E
• IEC‑61156‑5 Cat 6
• EN‑50288‑5‑1, EN‑50173, EN‑50575
• CPR Eca, LSZH per relevant IEC standards
