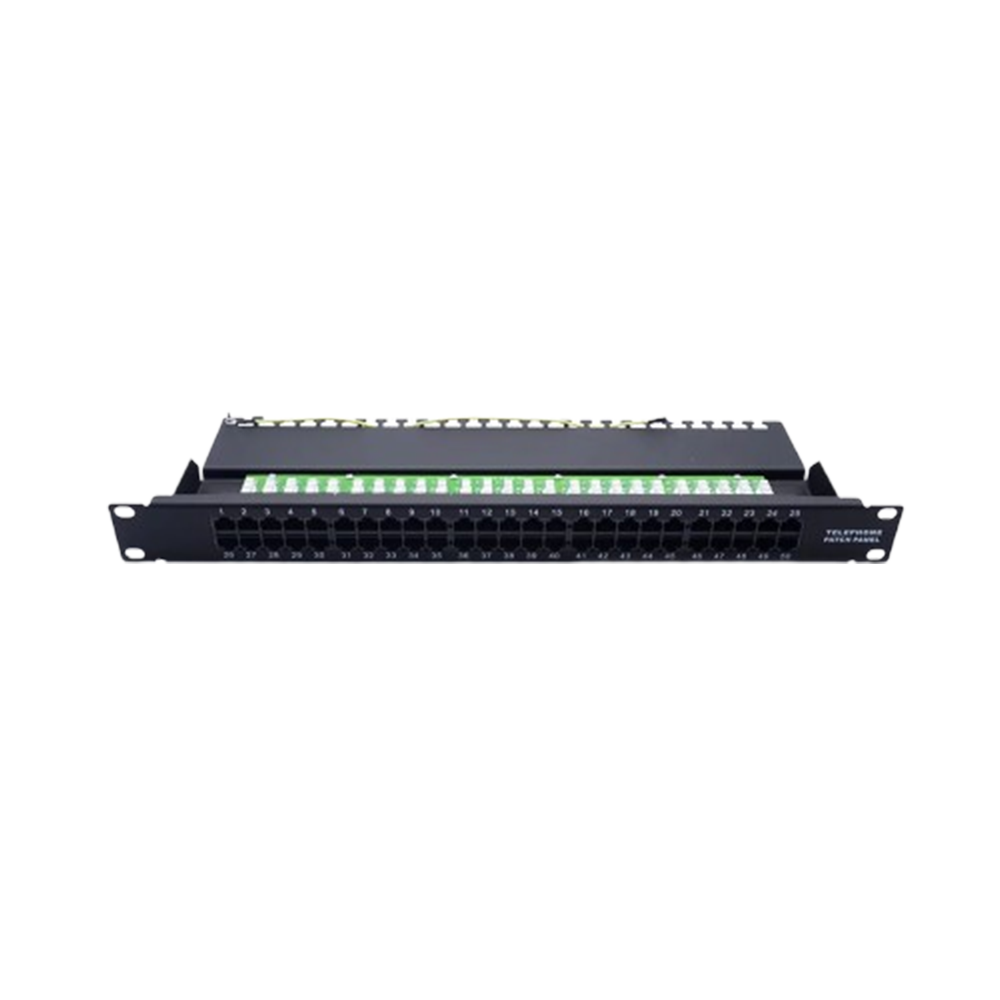

CAT3 50 PORT VOICE PATCH PANEL
CAT3 50 PORT VOICE PATCH PANEL - Image 2

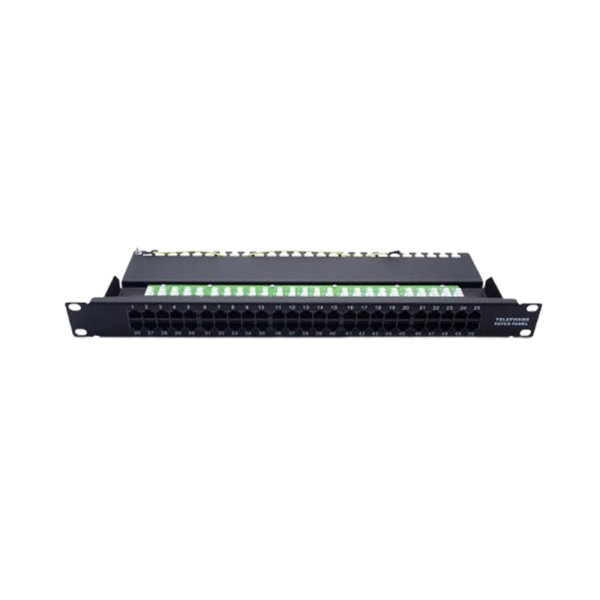

CAT3 50 PORT VOICE PATCH PANEL

High-density 50-port voice patch panel in 1U height for mounting in standard 19″ racks. Designed for analogue/digital telephone (voice) services with IDC / punch-down terminations. Features clear port numbering and rear cable management to support organized, reliable voice line installations.


📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , , , Brand:

Description

High-density 50-port voice patch panel in 1U height for mounting in standard 19″ racks. Designed for analogue/digital telephone (voice) services with IDC / punch-down terminations. Features clear port numbering and rear cable management to support organized, reliable voice line installations.

Key Features

  • Fully shielded (S/FTP) design for high EMI immunity
  • Supports 10 GbE and future-proof network speeds
  • Compatible with both 110 / Krone punch-down tools
  • Rear strain relief bar to reduce cable stress
  • Clearly numbered ports front & rear for easy identification

Key Applications

  • Data centres and high-density network racks
  • Environments with high electromagnetic interference
  • PoE++ powered device deployments (Access Points, Cameras etc.)
  • Enterprise backbones, server rooms, telecom rooms

Standards



Part Numbers

Part Number Description
SCZ-8010C3VP50P SCHNELL 50-PORT VOICE PATCH PANEL

MATERIAL CONSTRUCTION

Parameter Details
Panel Material Cold-rolled steel with powder-coated finish
Frame & Chassis Rugged steel structure for strength and grounding
Contact Material Phosphor bronze or similar alloy with corrosion-resistant plating
Port Numbering Individually labelled front-face ports
Rear Cable Management Integrated cable anchor / strain relief
IDC Terminals LSA/110 type insulation displacement punch-down

CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Voltage Rating

Contact Resistance

Insulation Resistance

Dielectric Strength

 : Up to ~150 VAC for voice signaling

: Max ~20 mΩ per contact

: ≥ 500 MΩ

: ~1000 VAC, 60 Hz, 1 minute

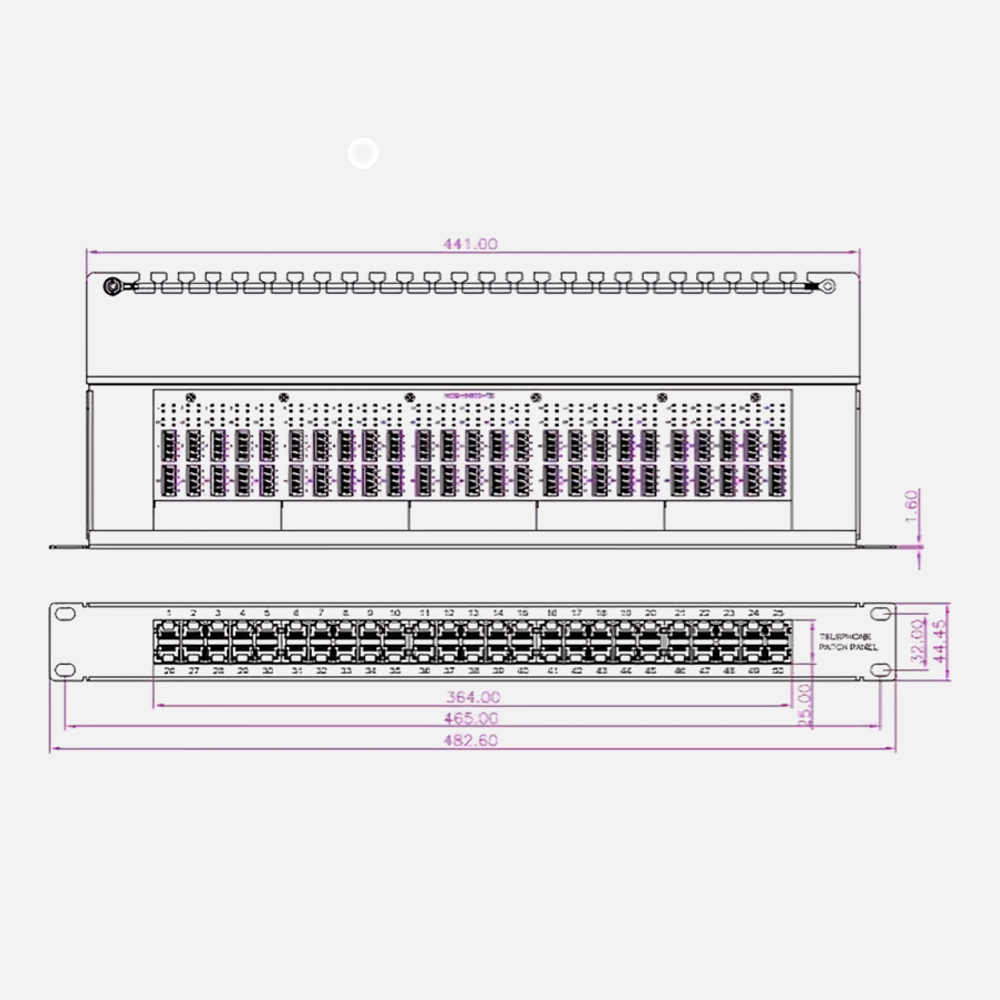

PHYSICAL CHARACTERISTICS
Height

Width

Depth



Wire Gauge Compatibility

Port Labeling

Finish / Color

 : 1U (~44 mm)

: 19″ rack standard width (~482.6 mm)

: ~120-140 mm including cable terminations

: 22-26 AWG solid or stranded

: Clear numbering on front and rear faces

: Black or optional RAL finishes

PART NUMBER

Part Number Description
SCZ-8010C3VP50P SCHNELL 50-PORT VOICE PATCH PANEL
