CAT3 25 PORT VOICE PATCH PANEL
CAT3 25 PORT VOICE PATCH PANEL - Image 2

CAT3 25 PORT VOICE PATCH PANEL

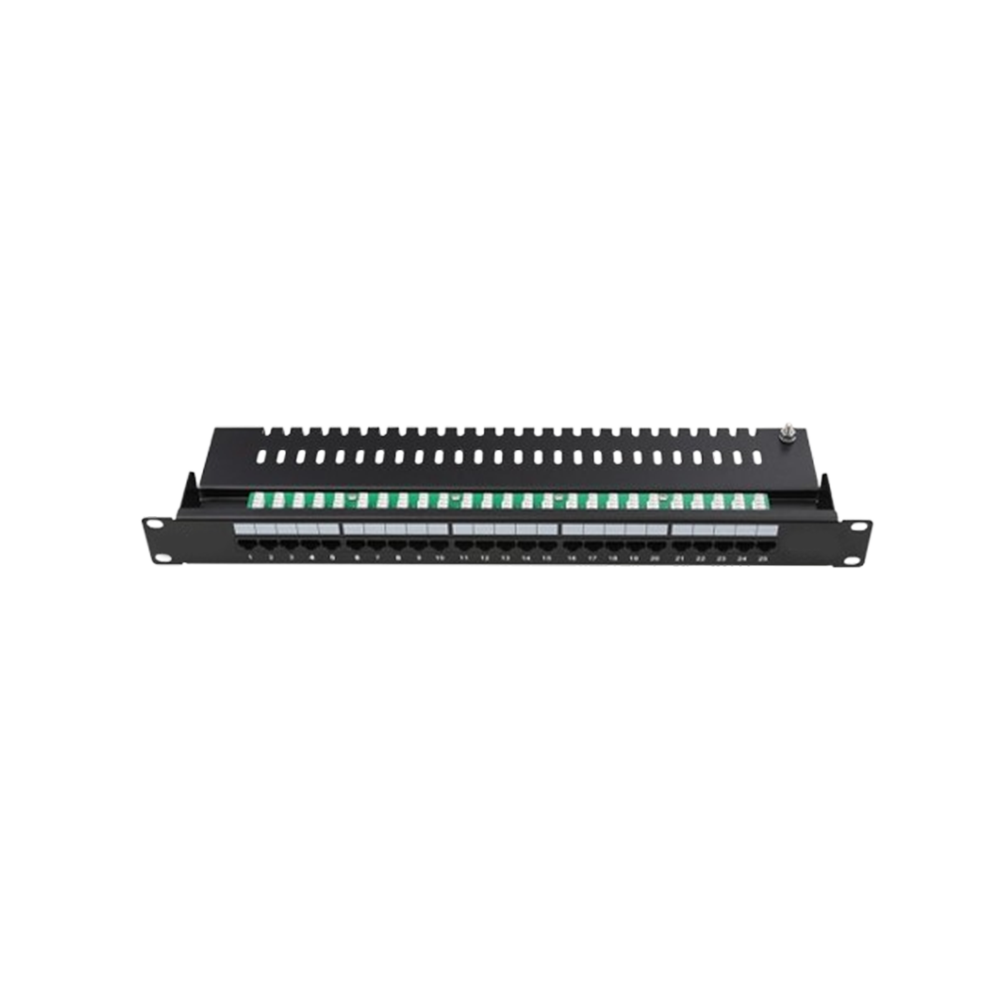

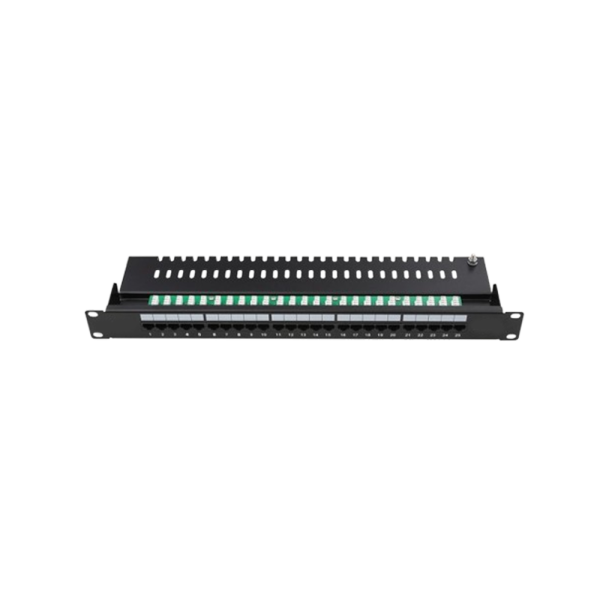

Compact 1U 25-port voice patch panel for mounting in standard 19″ racks. Designed to organize voice (analogue / digital) lines, with IDC / punch-down terminations. Durable construction, clear port labelling, and cable management features make it reliable for office and telecom installations.


📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , , , Brand:

Description

Compact 1U 25-port voice patch panel for mounting in standard 19″ racks. Designed to organize voice (analogue / digital) lines, with IDC / punch-down terminations. Durable construction, clear port labelling, and cable management features make it reliable for office and telecom installations.

Key Features

  • 25 punch-down ports for voice lines
  • Standard 1U high for rack-mount use
  • Corrosion-resistant finish for longevity
  • Clear port numbering and labelling strip
  • Accepts common wire gauges for voice IDC

Key Applications

  • PBX / telephone system termination points
  • Telecommunications wiring closets
  • Office voice and intercom systems
  • Maintenance of legacy voice infrastructure

Standards



Part Numbers

Part Number Description
SCZ-8010C3VP25P SCHNELL CAT3 25-PORT VOICE PATCH PANEL

MATERIAL CONSTRUCTION

Parameter Details
Panel Material Steel, electrostatic powder-coated finish
IDC Terminals High-quality phosphor bronze with tin or gold plating
Mounting Ears Fits standard 19″ rack / cabinet
Label Area Write-on label strip for port identification
Rear Cable Entry Rear cable feed / management space
Wire Gauge Compatibility 22–26 AWG solid wire for IDC termination

CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Max Voltage Rating

Contact Resistance

Insulation Resistance

Dielectric Withstand

 : ~150 V (voice signaling)

: ~20 mΩ per contact

: ≥ 500 MΩ

: ~1000 VAC, 60 Hz for 1 minute

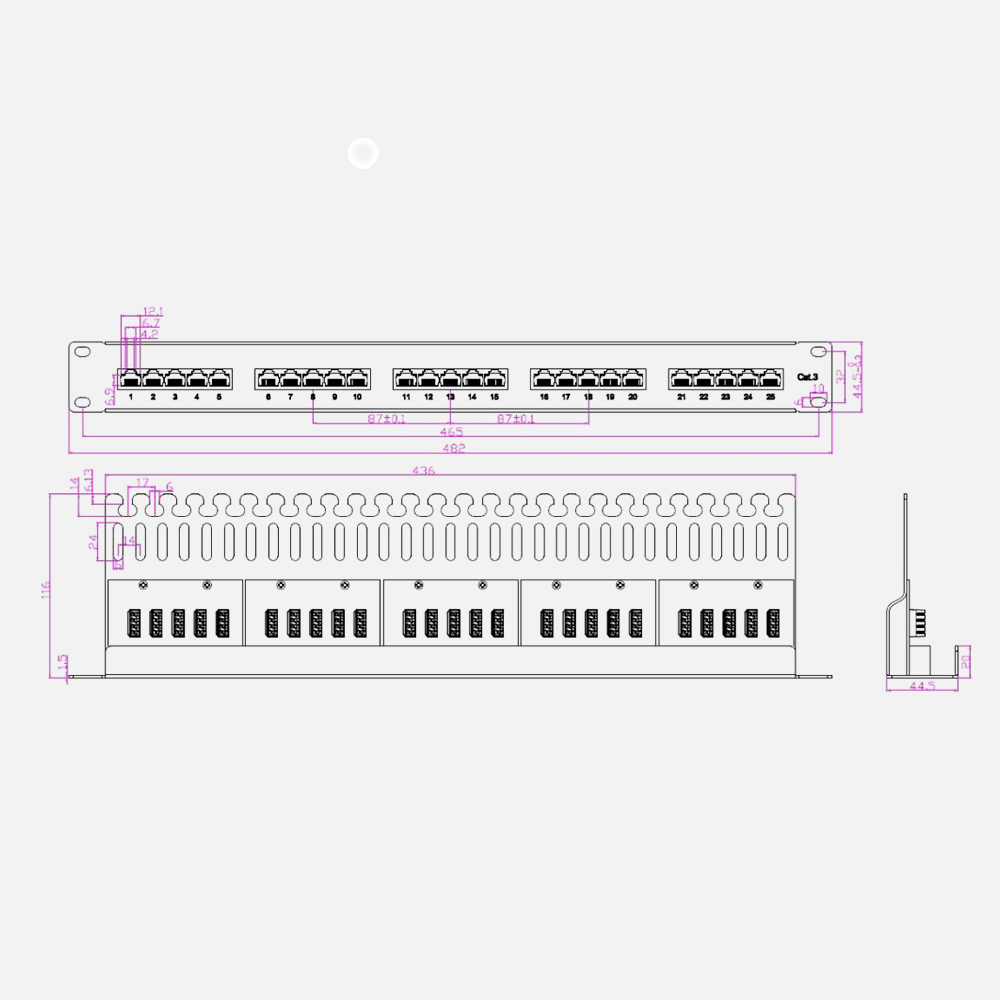

PHYSICAL CHARACTERISTICS
Height

Width

Depth

Color

IDC Insert Material

Mechanical Durability

 : 1U (≈ 44 mm)

: Fits 19″ rack (~482.6 mm)

: Approx. 120-150 mm

or standard powder-coated finish)

: Plastic / thermoplastic (flame-retardant)

: ≥ 800 insertions (ports) typical

PART NUMBER

Part Number Description
SCZ-8010C3VP25P SCHNELL CAT3 25-PORT VOICE PATCH PANEL
