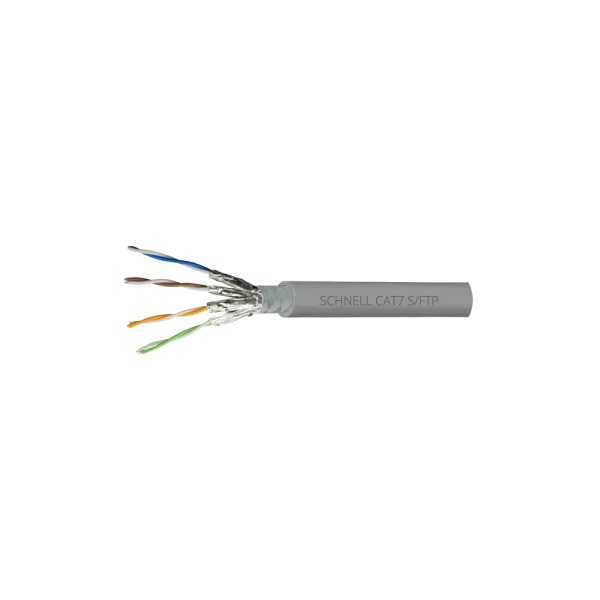

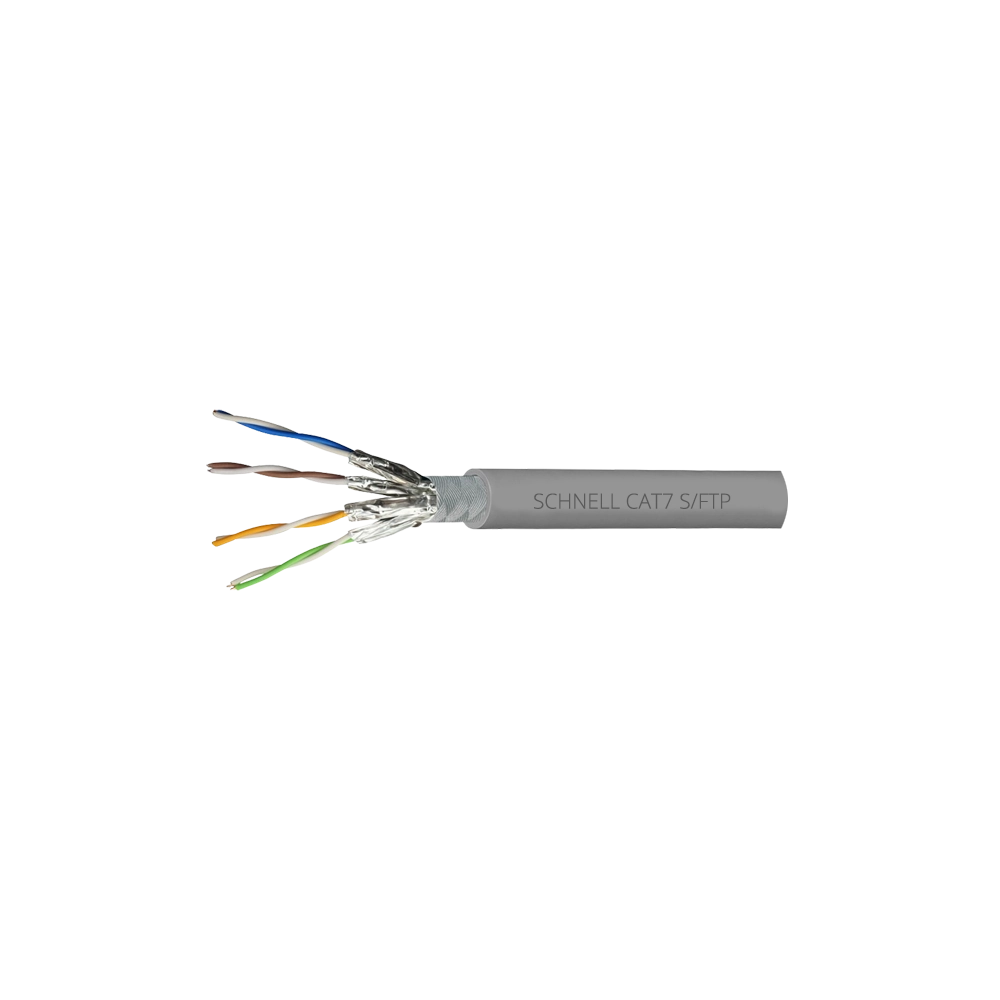

CAT 7 S/FTP 23 AWG 4 PAIR CABLE
CAT 7 S/FTP 23 AWG 4 PAIR CABLE - Image 2

CAT 7 S/FTP 23 AWG 4 PAIR CABLE

Premium Category-7 S/FTP 23 AWG 4-pair cable with individual foil shielding per pair plus full braid screen. Designed for 10-Gigabit Ethernet and high-speed data over long runs, it delivers excellent performance up to 600 MHz (and tested in many cases higher). Ideal for environments needing high shielding and future-proof cabling.


📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , , , Brand:

Description

Premium Category-7 S/FTP 23 AWG 4-pair cable with individual foil shielding per pair plus full braid screen. Designed for 10-Gigabit Ethernet and high-speed data over long runs, it delivers excellent performance up to 600 MHz (and tested in many cases higher). Ideal for environments needing high shielding and future-proof cabling.

Key Features

  • Fully shielded S/FTP design (foil + braid) for high EMI immunity
  • Solid 23 AWG conductors for lower attenuation and higher performance
  • Supports up to 10 Gigabit Ethernet over full distance
  • Durable LSZH or optional PVC jackets
  • Excellent mechanical specs: low skew, good bend radius

Key Applications

  • High-speed data backbones (10G, 25G, 40G)
  • Data centres, server rooms, telecom racks
  • Environments with high interference (industrial, hospital, broadcast)
  • Future-proof structured cabling for offices, campus, OEM systems

Standards

  • ISO/IEC 11801 Class F / EN 50173-1
  • IEC 61156-5
  • Supports IEEE 802.3af / at / bt PoE standards
  • Compatible with TIA/EIA 568-B colour code

Part Numbers

Part Number Description
SCZ-5010C723SGY SCHNELL CAT 7 23 AWG 4 PAIR S/FTP CABLE PVC GREY 305 MTR
SCZ-5010C723SLSGY SCHNELL CAT 7 23 AWG 4 PAIR S/FTP CABLE LSZH GREY 305 MTR

MATERIAL CONSTRUCTION

Parameter Description
Conductor Material Solid bare copper, 23 AWG
Insulation Material Skin-Foam-Skin PE
Pair Shielding Each pair individually foiled
Overall Shielding Tinned copper braid over all pairs
Jacket Material LSZH (Low Smoke Zero Halogen) or PVC (optional depending on version)
Jacket Outer Diameter Approximately 7.8 ± 0.5 mm
Core Identification Solid/stripe color coding per pair (standard TIA/EIA color code)

CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Impedance

DC Resistance (loop)

Delay Skew

Frequency Range

PoE Support

 : 100 Ω ± 5 Ω @ 100 MHz

≤ 73 Ω/km @ 20 °C

≤ 25 ns/100 m

Up to 600 MHz

IEEE 802.3af/at/bt
PHYSICAL CHARACTERISTICS
Conductor

Shielding

Jacket Material

Outer Diameter

Bend Radius (Install)

Operating Temperature

Standard Lengths

 : Solid bare copper, 23 AWG

: S/FTP (foil per pair + braid overall)

: LSZH (or PVC optional)

: ~7.8 mm

: 60 mm

: –35 °C to +65 °C

: 305 m / 500 m reel

PART NUMBER

Part Number Description
SCZ-5010C723SGY SCHNELL CAT 7 23 AWG 4 PAIR S/FTP CABLE PVC GREY 305 MTR
SCZ-5010C723SLSGY SCHNELL CAT 7 23 AWG 4 PAIR S/FTP CABLE LSZH GREY 305 MTR
