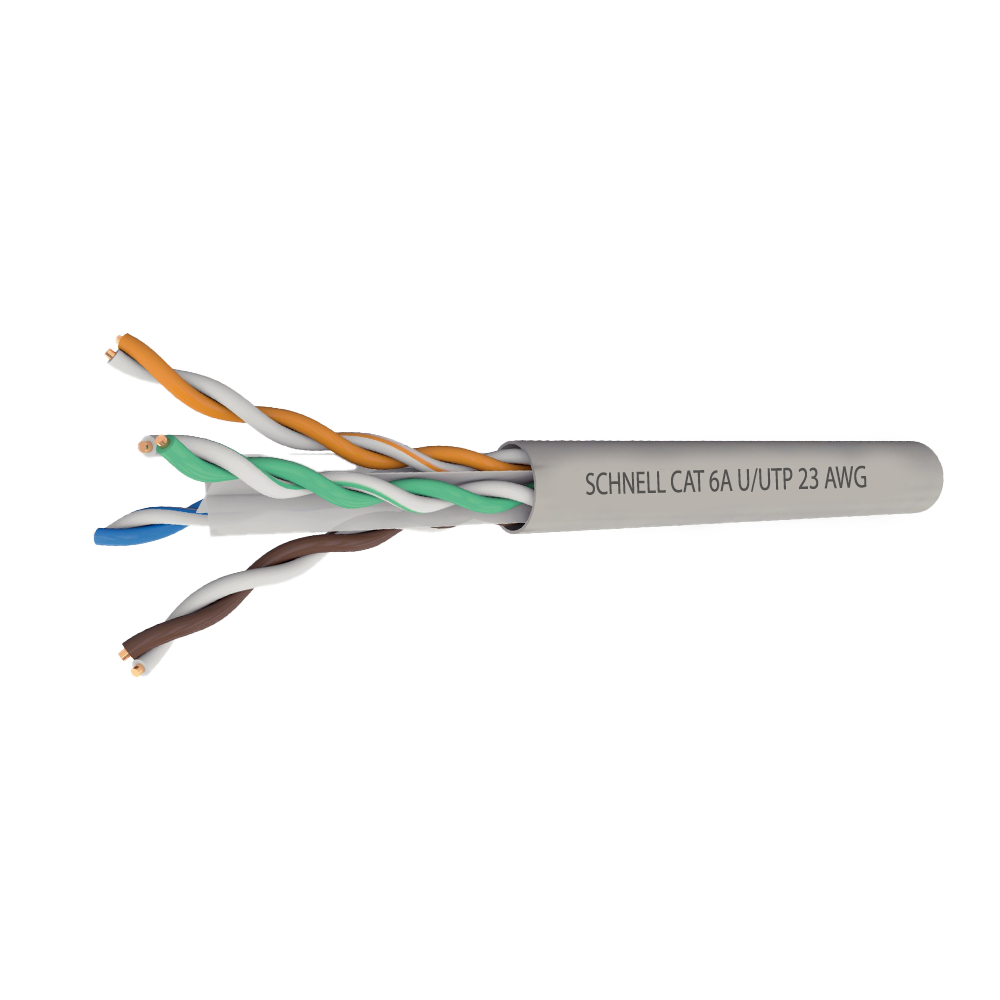

Schnell Category 6A U/UTP cables exceed Class EA standards and are tested up to 500 MHz, supporting 10 Gigabit applications over the full 100 meters. With superior pair-balance, they offer excellent electromagnetic compatibility (EMC), minimizing signal radiation, enhancing noise immunity, and delivering strong alien crosstalk performance in unshielded twisted pair (U/UTP) cabling systems.

📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , , Brand:

Description

Schnell Category 6A U/UTP cables exceed Class EA standards and are tested up to 500 MHz, supporting 10 Gigabit applications over the full 100 meters. With superior pair-balance, they offer excellent electromagnetic compatibility (EMC), minimizing signal radiation, enhancing noise immunity, and delivering strong alien crosstalk performance in unshielded twisted pair (U/UTP) cabling systems.

Key Features

  • Exceeds Category 6A/Class EA standards
  • Supports 10 Gigabit Ethernet up to 100 meters
  • High EMC performance with minimal alien crosstalk
  • LSZH or PVC jacket for safety and flexibility
  • Tested to 500 MHz for high-speed data transmission

Key Applications

  • Data centers and high-speed backbone cabling
  • Office buildings and structured LAN networks
  • PoE and PoE+ applications (IEEE 802.3af/at)
  • Video, voice, and high-bandwidth data transmission
  • Environments requiring EMI resistance and low smoke

Standards

  • ANSI/TIA-568.2-D, ISO/IEC 11801
  • Flame rating: UL 94 V-0 (LSZH)
  • Safety: UL 1863 certified
  • RoHS compliant (lead-free)
  • PoE-ready: IEEE 802.3af / 802.3at

Part Numbers

Part Number Description
SCZ-5010C6A23GY SCHNELL CAT 6A 23 AWG 4 PAIR UTP CABLE PVC GREY 305 MTR
SCZ-5010C6A23LZG SCHNELL CAT 6A 23 AWG 4 PAIR UTP CABLE LSZH GREY 305 MTR

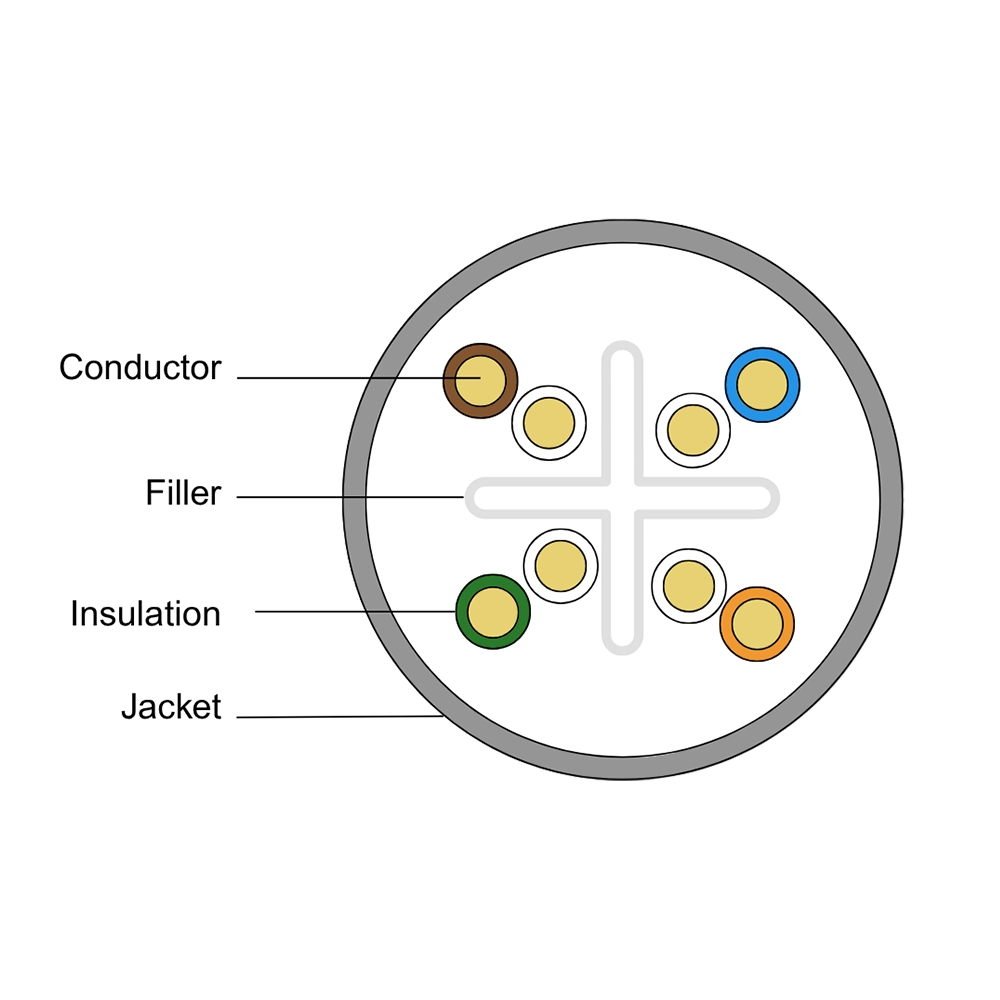

MATERIAL CONSTRUCTION

Parameter Specification
Conductor Material Bare Copper
Conductor Size 23 AWG
Conductor Type Solid
Insulation Material HDPE
Insulation O.D. 1.02 ± 0.05 mm
Color Code Per TIA/EIA 568-B
Conductor Unit Lay-Up Pairs
Total Number of Wires 8
Outer Jacket Material PVC / LSOH
Outer Jacket Thickness & Diameter 0.70 ± 0.05 mm, 7.1 ± 0.4 mm
Outer Jacket Color As per requirement
Rip Cord Not included

CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Bandwidth

Characteristic Impedance

DC Resistance

Capacitance

Delay Skew

 : Up to 500 MHz

: 100 ± 15Ω (1–250 MHz), 100 ± 22Ω (250–500 MHz)

: 93.8 Ω/km

: ≤ 5.6 nF/100m

: ≤ 25 ns/100m
PHYSICAL CHARACTERISTICS
Short-Term Bend Radius

Long-Term Bend Radius

Operating Temperature Range

 : 8 × OD mm

: 4 × OD mm

-: 20°C to +75°C
REACTION TO FIRE
Flame Retardance

Smoke Generation

Halogen Content

Toxic Gas Emission

Suitable for Plenum Use

 : UL 94 V-0 (with LSZH jacket)

: Low (LSZH option)

: Zero (LSZH)

: Minimal (LSZH)

: Optional, with LSZH jacket

PART NUMBER

Part Number Description
SCZ-5010C6A23GY SCHNELL CAT 6A 23 AWG 4 PAIR UTP CABLE PVC GREY 305 MTR
SCZ-5010C6A23LZG SCHNELL CAT 6A 23 AWG 4 PAIR UTP CABLE LSZH GREY 305 MTR
