CAT 6A S/FTP TOOL LESS KEYSTONE JACK
CAT 6A S/FTP TOOL LESS KEYSTONE JACK - Image 2

CAT 6A S/FTP TOOL LESS KEYSTONE JACK

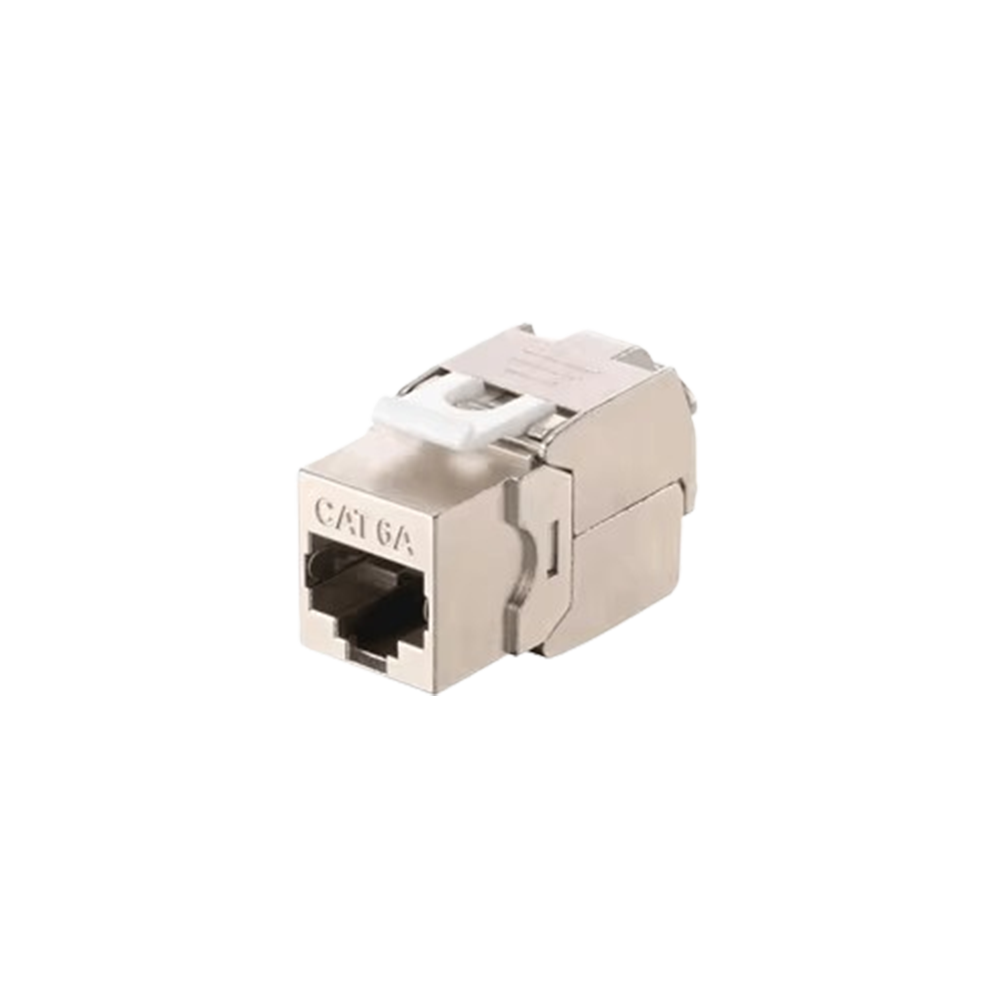

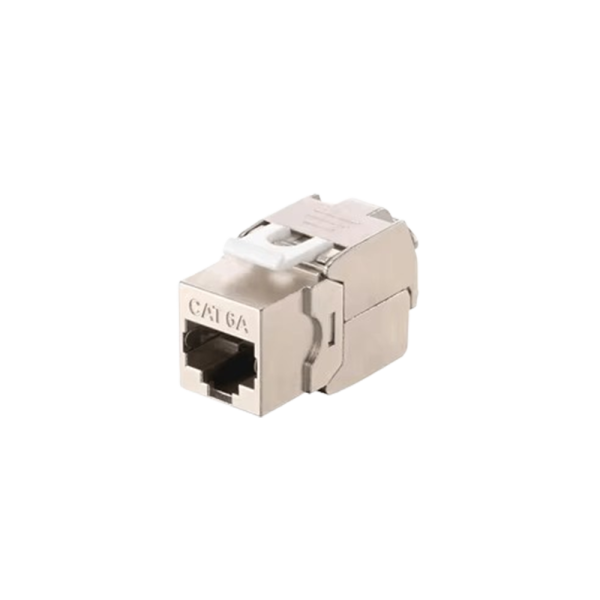

The Schnell CAT-6A Shielded Tool-less Keystone Jack provides superior performance for 10 Gigabit Ethernet applications. Designed with full 360° shielding (S/FTP) to ensure maximum protection against EMI/RFI. Tool-less termination simplifies installation, while supporting T568A & T568B wiring schemes. Ideal for high-density data centers and enterprise networks.


📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , , , Brand:

Description

The Schnell CAT-6A Shielded Tool-less Keystone Jack provides superior performance for 10 Gigabit Ethernet applications. Designed with full 360° shielding (S/FTP) to ensure maximum protection against EMI/RFI. Tool-less termination simplifies installation, while supporting T568A & T568B wiring schemes. Ideal for high-density data centers and enterprise networks.

Key Features

  • Tool-less 180° termination – no punch-down tool required
  • Fully shielded (S/FTP) 360° metal housing for superior EMI protection
  • Supports 10GBASE-T Ethernet up to 100 m
  • Backward compatible with Cat6 and Cat5e systems
  • PoE, PoE+ and PoE++ ready
  • Compact size for high-density patch panels and faceplates

Key Applications

  • Gigabit Ethernet (1000BASE-T) patch panels & backbones
  • High-interference environments (labs, industrial, server rooms)
  • Wall plates, surface mount, and modular faceplates
  • PoE / PoE+ deployments where shielding is beneficial

Standards

  • ANSI/TIA-568.2-D (Cat6A)
  • ISO/IEC 11801 Class EA
  • IEEE 802.3an (10GBASE-T)
  • IEC 60603-7-51 shielded modular jack standard
  • RoHS / REACH compliant

Part Numbers

Part Number Description
SCZ-5010C6ASTKJ SCHNELL CAT 6A S/FTP TOOL LESS KEYSTONE JACK

MATERIAL CONSTRUCTION

Parameter Details
Housing Material Zinc alloy, fully shielded 360° metal body
Contact Material Phosphor bronze with 50 µin gold plating over nickel
Insulation Material High-performance, flame-retardant thermoplastic (UL94V-0 rated)
IDC / Termination Style Dual IDC (110 / Krone), tool-less termination cap
Wiring Compatibility T568A & T568B colour coding
Cable OD Supported 6.0 – 9.0 mm (solid or stranded)
AWG Support 22 – 26 AWG
Dust Protection Optional shutter or dust cover

CHARACTERISTICS

PHYSICAL CHARACTERISTICS
Frequency / Bandwidth

Impedance

Contact Resistance

Insulation Resistance

Dielectric Withstand Voltage

Voltage Rating

PoE Support

 : Up to 500 MHz (Cat6A)

: 100 Ω nominal

: ≤ 20 mΩ

: ≥ 500 MΩ

: 1000 V RMS, 60 Hz for 1 minute

: 230 V RMS Max

: IEEE 802.3af / at / bt (PoE, PoE+, and PoE++)


ELECTRICAL & TRANSMISSION CHARACTERISTICS
Mating / Insertion Cycles

Operating Temperature

Storage Temperature

Dimensions (Typical)

Plug Retention Force

Finish / Color Options

 : ≥ 750 plug insertions/removals

: −10 °C to +60 °C

: −40 °C to +70 °C

: Standard keystone size, depth ~42–45 mm including shield

: ≥ 133 N

: Metal finish (nickel/silver), optional colored ID caps

PART NUMBER

Part Number Description
SCZ-5010C6ASTKJ SCHNELL CAT 6A S/FTP TOOL LESS KEYSTONE JACK
