CAT 6A S/FTP PATCH PANEL
CAT 6A S/FTP PATCH PANEL - Image 2

CAT 6A S/FTP PATCH PANEL

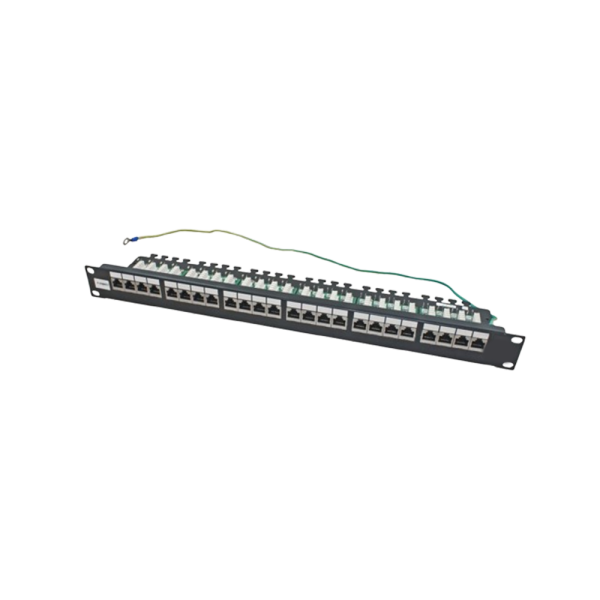

High-performance CAT-6A S/FTP patch panel in 1U height for standard 19″ racks. Features full pair foils plus overall braided shield for excellent EMI suppression. Designed for 10 Gigabit Ethernet, supports PoE++ and robust termination tools, combined with rear cable management for organized setups.


📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , , , Brand:

Description

High-performance CAT-6A S/FTP  patch panel in 1U height for standard 19″ racks. Features full pair foils plus overall braided shield for excellent EMI suppression. Designed for 10 Gigabit Ethernet, supports PoE++ and robust termination tools, combined with rear cable management for organized setups.

Key Features

  • Fully shielded (S/FTP) design for high EMI immunity
  • Supports 10 GbE and future-proof network speeds
  • Compatible with both 110 / Krone punch-down tools
  • Rear strain relief bar to reduce cable stress
  • Clearly numbered ports front & rear for easy identification

Key Applications

  • Data centers and high-density network racks
  • Environments with high electromagnetic interference
  • PoE++ powered device deployments (Access Points, Cameras etc.)
  • Enterprise backbones, server rooms, telecom rooms

Standards



Part Numbers

Part Number Description
SCZ-5010C6ASPP24TP SCHNELL CAT6A S/FTP 24-PORT TOOL LESS PATCH PANEL
SCZ-5010C6ASPP48TP SCHNELL CAT6A S/FTP 48-PORT TOOL LESS PATCH PANEL

MATERIAL CONSTRUCTION

Parameter Details
Panel Frame Material Cold-rolled steel with powder-coated finish
Shielding Pair-by-pair foil shielding + full braid shield (S/FTP)
Port Type 24 RJ-45 female keystone or punch-down ports
Termination Style Dual IDC: 110 / Krone compatible
Contact Plating Gold plating over nickel for durability and signal integrity
Cable Management Rear cable bar / strain relief for exit and routing

CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Bandwidth / Frequency

Impedance

Contact Resistance

Insertion Loss

Return Loss

PoE Support

 : Supports ≥ 500 MHz (Cat6A spec)

: 100 Ω nominal

: ≤ 20 mΩ per contact at mating surfaces

: Meets 10GBASE-T requirements

: Complies with Cat6A standard at frequency-bands

: Up to 100 W (Type 4 / PoE++)

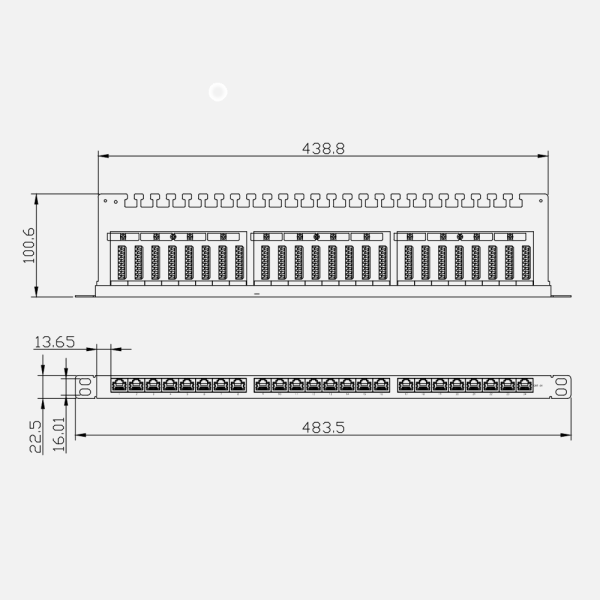

PHYSICAL CHARACTERISTICS
Height

Width

Depth

Wire Gauge Compatibility

Port Labeling

Finish / Color

 : 1U (~44 mm)

: 19″ rack standard width (~482.6 mm)

: ~120-140 mm including cable terminations

: 22-26 AWG solid or stranded

: Clear numbering on front and rear faces

: Black or optional RAL finishes

PART NUMBER

Part Number Description
SCZ-5010C6ASPP24TP SCHNELL CAT6A S/FTP 24-PORT TOOL LESS PATCH PANEL
SCZ-5010C6ASPP48TP SCHNELL CAT6A S/FTP 48-PORT TOOL LESS PATCH PANEL
