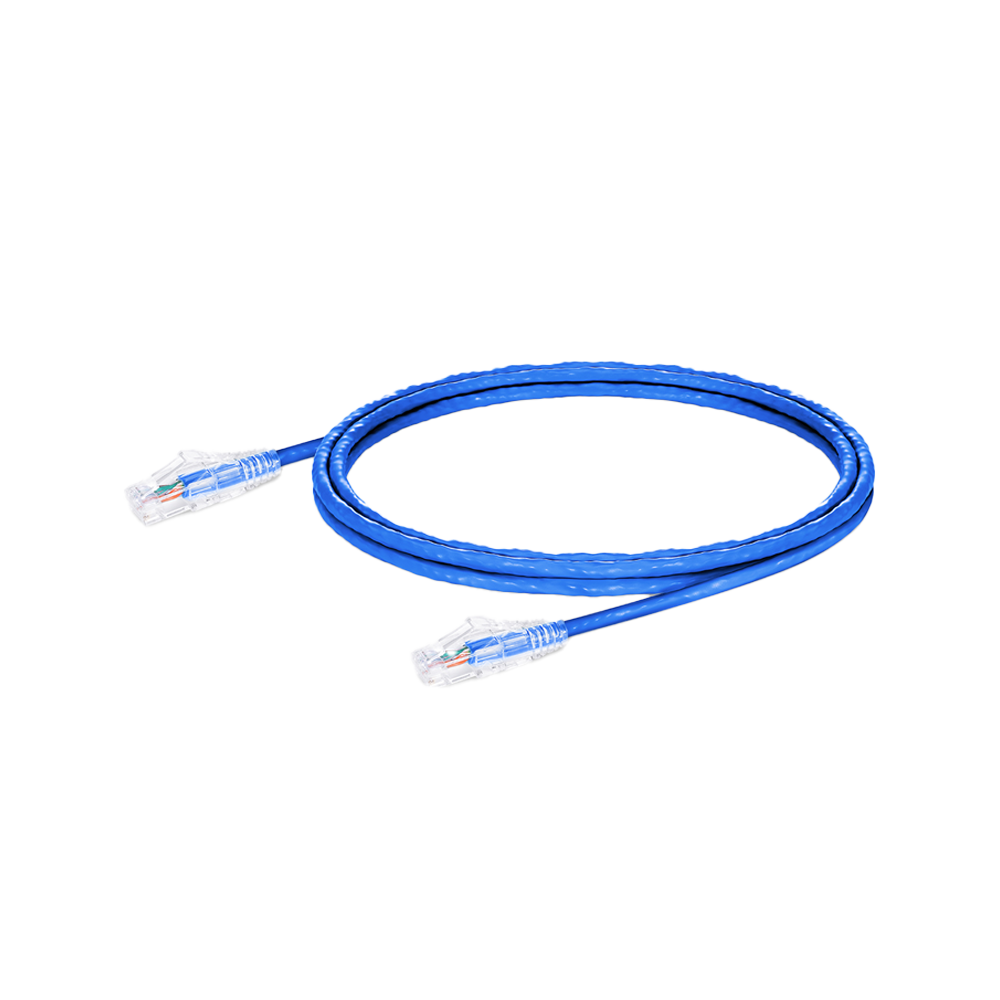

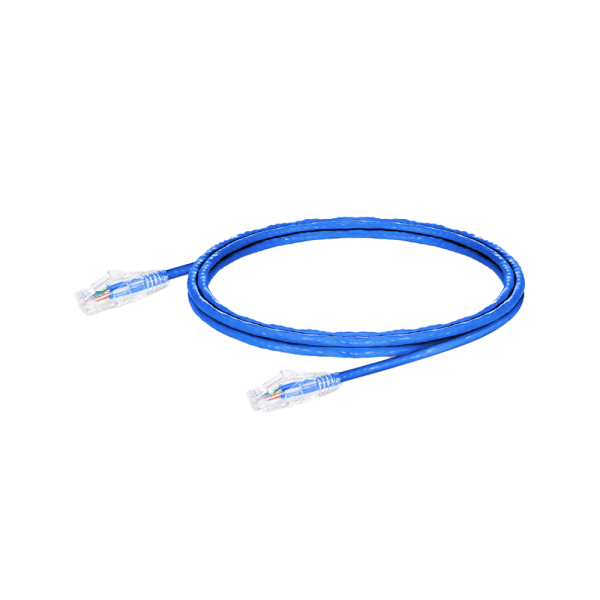

Schnell Category 6 UTP patch cords are crafted from high-quality, unshielded four-pair stranded cable. They deliver exceptional performance for high-bandwidth applications, including Gigabit Ethernet (1000Base-T and 1000Base-TX). Each patch cord is individually tested using a Fluke tester and supports transmission frequencies up to 250 MHz for reliable and consistent network connectivity.

Key Features

• E Series, Cat 6/Class E compliant
• 23 AWG solid bare copper (U/UTP)
• Central spline for crosstalk control
• 250 MHz tested for Gigabit speeds
• 100% recyclable packaging

Key Applications

• Key applications include Gigabit Ethernet
• PoE for IP devices
• LAN cabling and Data center
• CCTV connectivity and Smart building systems
• VoIP, Wi-Fi uplinks
• Home/office networking

Standards

• Supports IEEE 802.3af (PoE) and 802.3at (PoE+)
• Flame retardant and LSZH (IEC 60332-1, 60754, 61034)
• ANSI/TIA-568.2-D Category 6 compliant
• ISO/IEC 11801 Class E & IEC 61156-5 certified

Part Numbers
