CAT 6 EURO MODULE

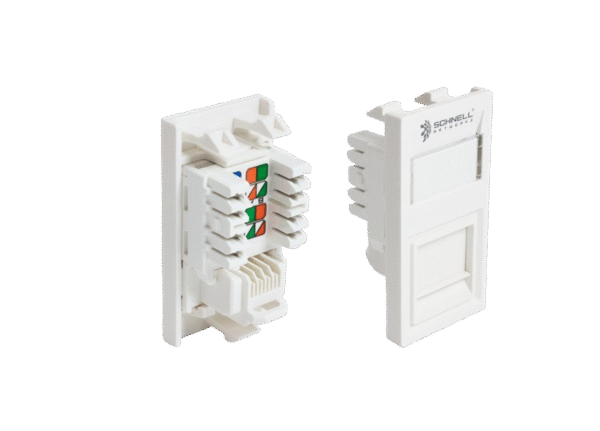

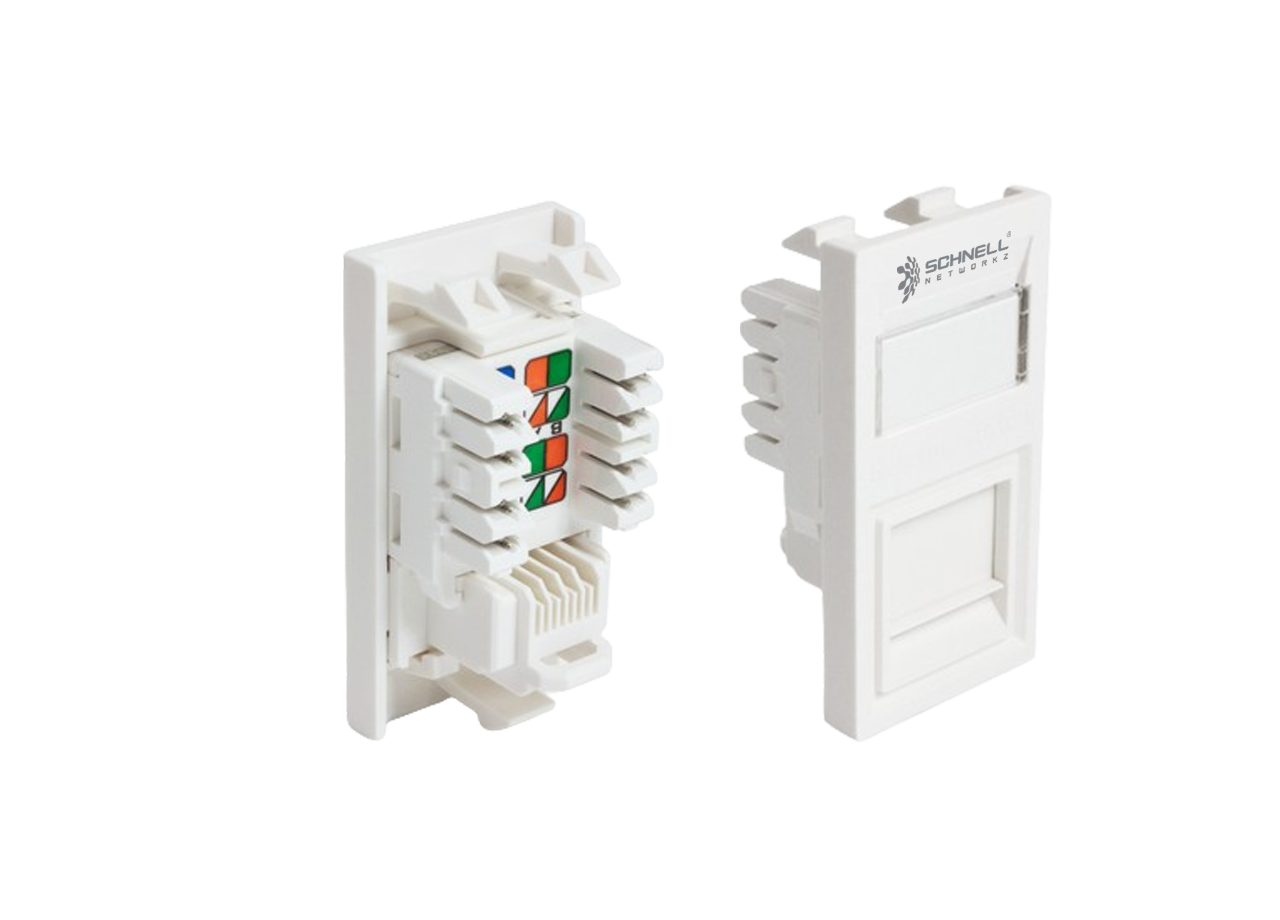

The Schnell Cat 6 Euro module features a compact, slim design with an integrated shutter to guard against dust ingress. It is ideal for wall plate installations and fully supports Category 6 (Class E) networks. Engineered for reliability, it ensures consistent performance in high-speed data applications with support for frequencies up to 250 MHz, making it suitable for modern network setups.

📥 DOWNLOAD DATASHEET

Categories: , Tags: , , , Brand:

Description

The Schnell Cat 6 Euro module features a compact, slim design with an integrated shutter to guard against dust ingress. It is ideal for wall plate installations and fully supports Category 6 (Class E) networks. Engineered for reliability, it ensures consistent performance in high-speed data applications with support for frequencies up to 250 MHz, making it suitable for modern network setups.

Key Features

  • Supports PoE/PoE+
  • Max transfer impedance: 1.6 Ω @ 80 MHz
  • Tensile strength ≥110 N
  • Compact Euro module with shutter
  • Dual IDC terminals (22–26 AWG)
  • Snap-in design for faceplates

Key Applications

  • Gigabit Ethernet (1000Base-T)
  • PoE/PoE+ device connections
  • Structured LAN cabling
  • Wall plate terminations
  • IP CCTV, VoIP, Wi-Fi uplinks
  • Data centers and server rooms

Standards

  • Supports IEEE 802.3af (PoE) and 802.3at (PoE+)
  • Flame retardant and LSZH (IEC 60332-1, 60754, 61034)
  • ANSI/TIA-568.2-D Category 6 compliant
  • ISO/IEC 11801 Class E & IEC 61156-5 certified

Part Numbers

Part Number Description
SCZ-5010C6EM SCHNELL CAT 6 EURO MODULE

MATERIAL CONSTRUCTION

Parameter Specification
Connector Type RJ45 and Dual IDC
Screen Unshielded

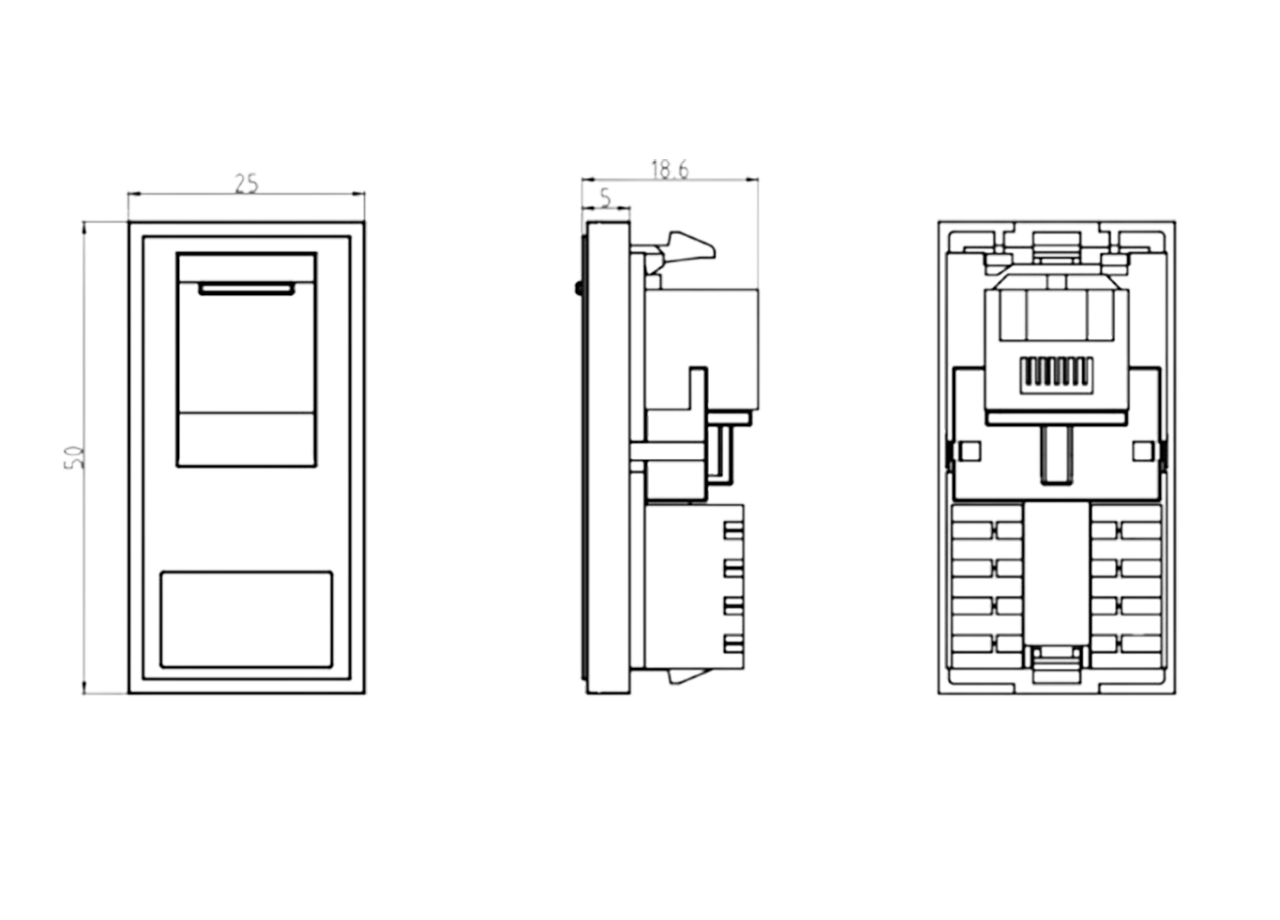

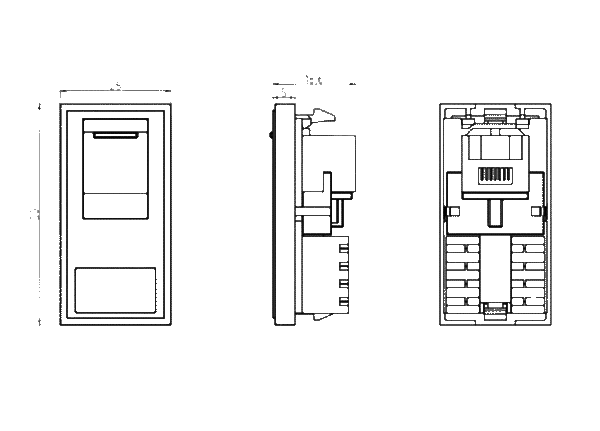

Depth 20 mm
Height 50 mm
Width 25 mm
Number of Ports 1
Wire Gauge 22–26 AWG
Housing Material PC or ABS, UL94V-0
Jack Housing Material High Impact Flame Retardant Plastic Compound – UL94V-0
PCB Material FR-4, Thickness 1.6 mm
Contact Material Phosphor Bronze
Storage Temperature Range -40°C to +60°C
Operating Temperature Range 0°C to 70°C
Color UK White or as per request

CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Current Rating

Contact Resistance

Input/Output Resistance

Input/Output Resistance Imbalance

Voltage Rating

Dielectric Strength

Insulation Resistance

DC Resistance



 : 1.5 A max

: < 10 mΩ (excluding body resistance)

: 200 mΩ max

: 50 mΩ max



: 125 V AC RMS

: 1 KV RMS for 1 minute

: ≥ 200 MΩ norm.

: < 20 mΩ


MECHANICAL CHARACTERISTICS
Mounting Style

Insertion Durability

Tensile Strength

Cable Termination

Housing Strength

 : Snap-in (Euro faceplate compatible)

: ≥750 mating cycles

: ≥110 N (IDC wire retention)

: Dual IDC (22–26 AWG)

: High-impact resistant plastic
REACTION TO FIRE
Housing Material Rating

Jack Housing Material

Halogen Content

Operating Temp Range

Storage Temp Range

 : UL 94V-0 Flame Retardant

: High-impact FR Plastic (UL 94V-0)

: Halogen-Free (if applicable)

: 0°C to +70°C

: –40°C to +60°C

PART NUMBER

Part Number Description
SCZ-5010C6EM SCHNELL CAT 6 EURO MODULE
