8 CORE 18 AWG UNSHIELDED MULTI CONDUCTOR CABLE
8 CORE 18 AWG UNSHIELDED MULTI CONDUCTOR CABLE - Image 2

8 CORE 18 AWG UNSHIELDED MULTI CONDUCTOR CABLE

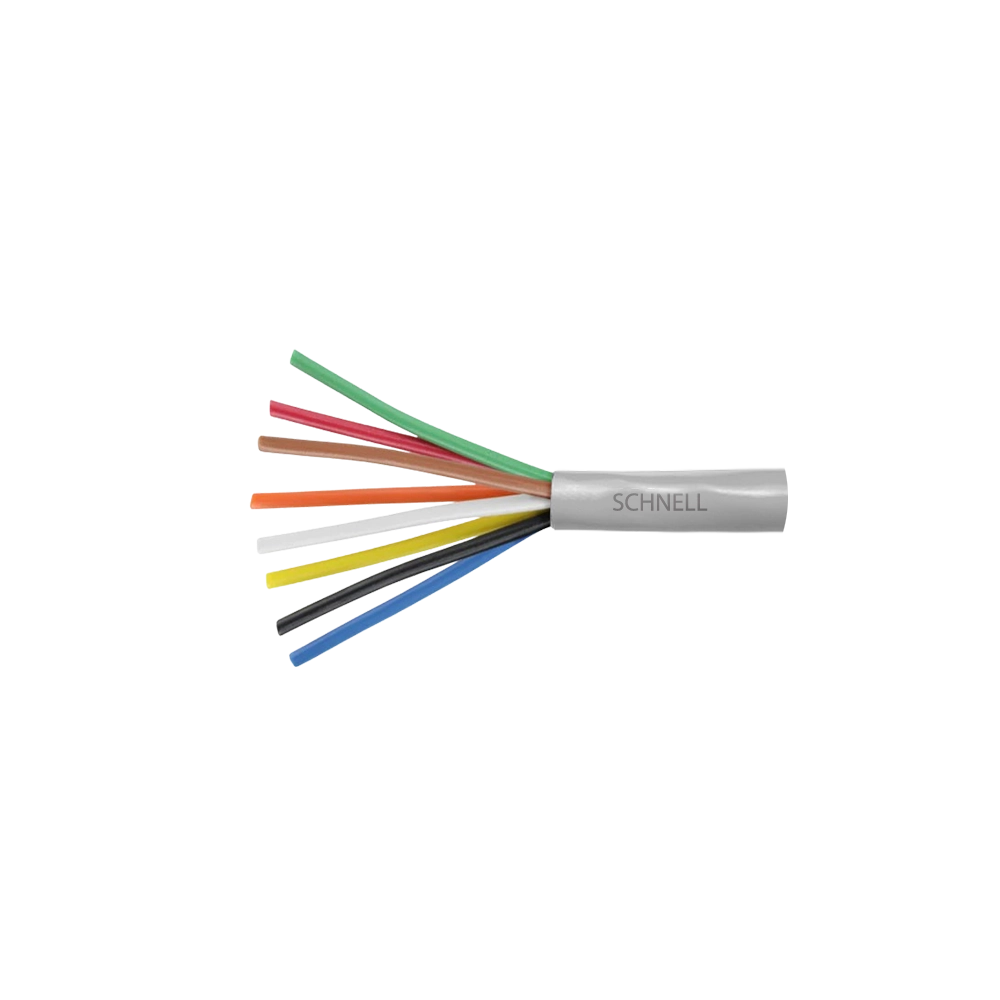

SCHNELL 8‑Core 18 AWG Unshielded Multi‑Conductor Cable is ideal for commercial audio systems, instrumentation, and control applications. It is constructed with stranded bare copper conductors, PE insulation, and a grey PVC or LSZH jacket. Designed for reliable signal transmission, easy handling, and excellent mechanical durability in demanding environments.

📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , Brand:

Description

SCHNELL 8 Core 18 AWG Unshielded Multi Conductor Cable is ideal for commercial audio systems, instrumentation, and control applications. It is constructed with stranded bare copper conductors, PE insulation, and a grey PVC or LSZH jacket. Designed for reliable signal transmission, easy handling, and excellent mechanical durability in demanding environments.

Key Features

  • Flexible stranded copper conductors
  • PE insulation for stable electrical performance
  • PVC or LSZH jackets for safety and durability
  • Color-coded cores for easy installation

Key Applications

  • Commercial audio and PA systems
  • Control and instrumentation wiring
  • Building automation and HVAC systems
  • Signal transmission in instrumentation environments

Standards

  • UL-listed (300 V rating)
  • IEC 60332-1 Flame standard
  • ISO/IEC 11801 cabling norms
  • ANSI/TIA‑568.2-D structured cabling
  • RoHS compliant

Part Numbers

Part Number Description
SCZ-9010818UMC1 SCHNELL 8C X 0.75 MM (18 AWG) UNSHIELDED MULTI CONDUCTOR CABLE LSZH 100 MTR
SCZ-9010818UMC2 SCHNELL 8C X 0.75 MM (18 AWG) UNSHIELDED MULTI CONDUCTOR CABLE LSZH 305 MTR

MATERIAL CONSTRUCTION

Parameter Specification
Conductors Bare Copper (18 AWG, 7×26)
Core Count 8
Insulation PE (Polyethylene)
Rip Cord Nylon
Outer Jacket PVC or LSZH
Jacket Color Grey

CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Conductor DCR (Ω/km)

Capacitance (Cond‑to‑Cond)

Max Operating Voltage (UL)

 : ~20.5

: ~50 pF/m

: 300 V
PHYSICAL & MECHANICAL CHARACTERISTICS
Insulation Thickness

Jacket Thickness

Cable Outer Diameter

Max Recommended Pulling Tension

Min Bending Radius (Minor)

Operating Temperature

 : 0.28 mm

: 0.50 mm

: ~6.1 mm

: ~795 N

: ~48.8 mm

: −10 °C to +60 °C
REACTION TO FIRE
Jacket Flame Safety

Smoke Emission (LSZH)

Halogen Content

Insulation Integrity

 : Meets IEC 60332-1

: Low smoke output

: Halogen-free (LSZH option)

: Maintained under exposure

PART NUMBER

Part Number Description
SCZ-9010818UMC1 SCHNELL 8C X 0.75 MM (18 AWG) UNSHIELDED MULTI CONDUCTOR CABLE LSZH 100 MTR
SCZ-9010818UMC2 SCHNELL 8C X 0.75 MM (18 AWG) UNSHIELDED MULTI CONDUCTOR CABLE LSZH 305 MTR
