3 CORE 24 AWG UNSHIELDED MICROPHONE CABLE
3 CORE 24 AWG UNSHIELDED MICROPHONE CABLE - Image 2

3 CORE 24 AWG UNSHIELDED MICROPHONE CABLE

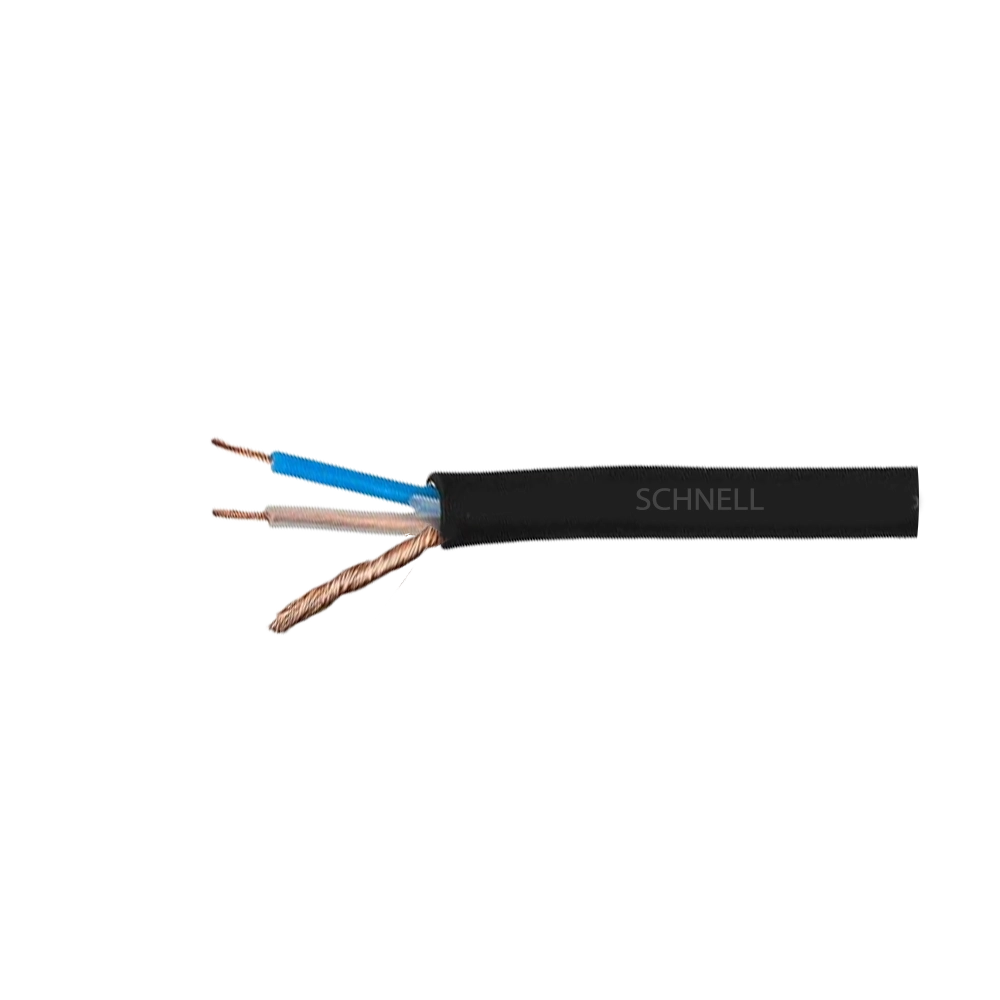

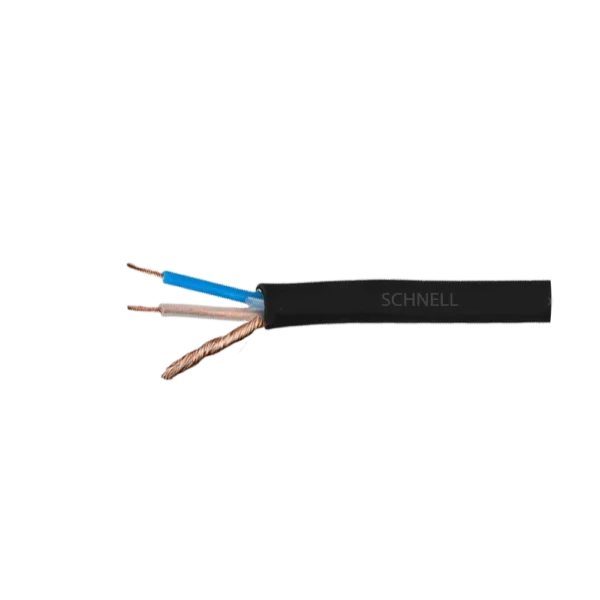

High-performance, compact 3-core unshielded microphone cable designed for reliable audio signal transmission. Built with stranded bare copper conductors and flexible PVC insulation, ideal for short-run audio connections in studios, stage setups, and fixed installations.

📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , Brand:

Description

High-performance, compact 3-core unshielded microphone cable designed for reliable audio signal transmission. Built with stranded bare copper conductors and flexible PVC insulation, ideal for short-run audio connections in studios, stage setups, and fixed installations.

Key Features

  • Compact and flexible design
  • Unshielded for lightweight applications
  • High-conductivity bare copper conductors
  • PVC insulation ensures durability
  • Easy stripping and termination

Key Applications

  • Analog audio signal transmission
  • Microphone connections
  • Indoor audio system installations
  • Studio & broadcast setups
  • Portable sound equipment

Standards

  • RoHS 2 Compliant (EU Directive 2011/65/EU)
  • REACH Compliant
  • WEEE Compliant
  • CE Marking (where applicable)
  • Meets internal Schnell QC Standards

Part Numbers

Part Number Description
SCZ-9010324UMP1 SCHNELL 3C X 0.22MM (24 AWG) UNSHIELDED MICROPHONE CABLE PVC 100 MTR

MATERIAL CONSTRUCTION

Parameter Specification
Conductor 24 AWG (105 × 44) stranded bare copper
No. of Conductors 3 cores
Insulation PVC (Polyvinyl Chloride)
Insulation Colors White, Green, Brown
Jacket Material Flexible PVC
Jacket Color Black matte
Shield None (Unshielded)
Drain Wire Not applicable

CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Nominal Capacitance (Core-Core)

Nominal Inductance

Characteristic Impedance

Voltage Rating (UL)

Operating Temperature Range

Max. Current per Conductor

DC Resistance (est.)

Signal Type

 : 40 pF/ft

: 0.19 µH/ft

: 47 Ohm

: 300 V RMS

: -20°C to +80°C

: 3.36 A @ 25°C

: ~85 Ω/km (based on 24 AWG)

: Analog audio (balanced/unbalanced)
PHYSICAL & MECHANICAL CHARACTERISTICS
Cable Diameter

Conductor Diameter

Insulation Thickness

Jacket Thickness

Cable Weight

Min. Bend Radius

Max. Pull Tension

Temperature Range

 : Approx. 4.5 mm

: 0.61 mm (0.024 in)

: 0.3 mm (0.012 in)

: Approx. 0.76 mm (0.03 in)

: ~23 lbs/1000 ft (approx.)

: 2 in

: 45 lbs

: -20°C to +80°C
REACTION TO FIRE
Flammability

Smoke/Toxicity Rating

 : Complies with RoHS & REACH

: Standard PVC (non-halogen-free).

PART NUMBER

Part Number Description
SCZ-9010324UMP1 SCHNELL 3C X 0.22MM (24 AWG) UNSHIELDED MICROPHONE CABLE PVC 100 MTR
