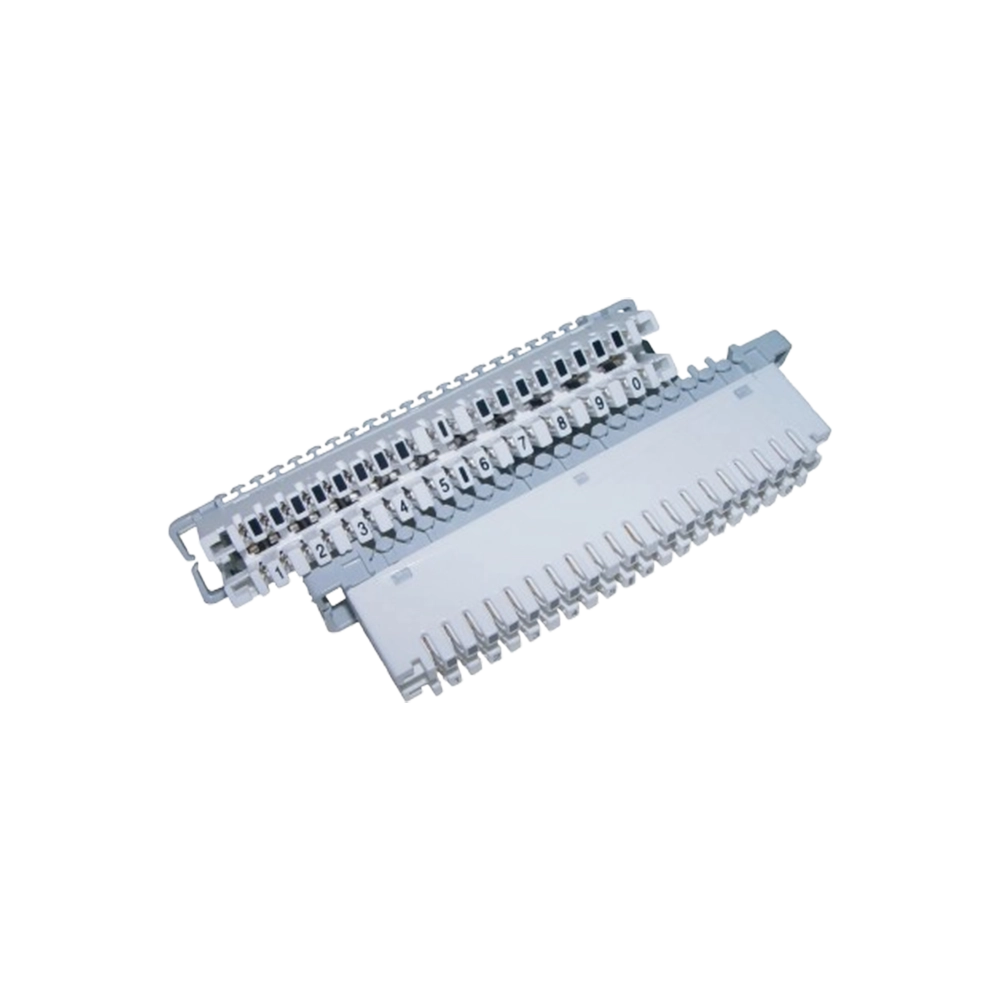

SCHNELL 10-Pair Connection/Disconnection Module for voice and low-speed telecom/data wiring. Used in Main Distribution Frames (MDF), Intermediate Distribution Frames (IDF), cross-connect cabinets or distribution points. Supports both permanent and jumper wiring, with a facility for pair disconnection and test access on each pair (in disconnection versions).


📥 DOWNLOAD DATASHEET

Categories: , , Tags: , , Brand:

Description

SCHNELL 10-Pair Connection/Disconnection Module for voice and low-speed telecom/data wiring. Used in Main Distribution Frames (MDF), Intermediate Distribution Frames (IDF), cross-connect cabinets or distribution points. Supports both permanent and jumper wiring, with a facility for pair disconnection and test access on each pair (in disconnection versions).

Key Features

  • Connection module type (continuous link) or Disconnection type (pair-wise disconnection + test access)
  • Voice / PBX / legacy line compatibility
  • 10 pair capacity in compact module form
  • UL94 V-0 plastic, robust for telecom cabinet environments
  • Clean labelling — usually numbered for each pair

Key Applications

  • Main Distribution Frames (MDF) and Intermediate Distribution Frames (IDF)
  • Cross-connect cabinets and distribution points
  • Telephone exchanges and PBX systems
  • Subscriber line terminations in telecom networks
  • Voice and low-speed data cabling systems

Standards



Part Numbers

Part Number Description
SCZ-801010PCM SCHNELL 10-PAIR CONNECTION / DISCONNECTION MODULE

MATERIAL CONSTRUCTION

Plastic Parts Material

IDC Terminals / Contacts

Module Size / Dimensions

Mounting / Format

Connection vs Disconnection

Test Access

 : ABS or PBT, flame-retardant

: Insulation Displacement Contact, Krone or 110 type

: Approx. 124 mm × 21 mm × 30 mm

: Profile / Rod / Cabinet mounting

: Connection: one-piece contacts; Disconnection: two-piece with disconnect facility

: Four-wire test access provided on disconnection modules

CHARACTERISTICS

Pair Capacity

Wire Gauge

Operating Temperature

Insulation Resistance

Mechanical Durability

 : 10 pairs

: Solid copper wire typical for voice (≈ 22-26 AWG)

: Approx −10 °C to +60 °C indoor environment

: High, typical value ≥ 500 MΩ

: Rated for many terminations / insertions

PART NUMBER

Part Number Description
SCZ-801010PCM SCHNELL 10-PAIR CONNECTION / DISCONNECTION MODULE
